HI-203E
Mini-D/N GPS Receiver Module
User's
r
Guide
1

Advertisement

Table of Contents
loading

Related Manuals for Haicom HI-203E

Summary of Contents for Haicom HI-203E

  • Page 1 HI-203E Mini-D/N GPS Receiver Module User's Guide...
  • Page 2 General description of what GPS is and how it works. GPS (Global Positioning System) is the o n l y system today able to show you your exact position on the Earth anytime, in any w e ather, anywhere. GPSsatellites, 24 in all, orbit at 11,000 nautical milesabove the Earth.They are continuously monitored by ground stations located worldwide.

  • Page 3: Global Positioning System

    PS/2 Car Charger (+12V) Power forPDA/GPS Connector For notebook PC use: HI-203EPS/II can alsoconnect witha PS/IIto DB9 PS-232serial cable Note: To receive Better Satellite Signal,Please Don't place HI-203E onthedashboard if your windshieldglasswith UVProtection. Female Male (PowerOutput) (To HI-203E) DB-9 (DataOutput)

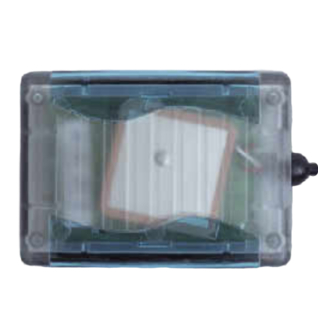

  • Page 4 INTRODUCTION 1.1 OVERVIEW The HI-203E GPS Receiver is intended for use in a wide range of applications. The receiver simultaneously tracks up to twelve satellites, provides accurate satellite positioning data with fast time-to-first-fix (TTFF) and low power consumption. It is designed for high performance and maximum flexibility in a wide range of applications including mobile asset tracking, in-vehicle automotive guidance, location sensing, telematics and so on.

  • Page 5: Receiver Operation

    As soon as GPS signal is acquired and tracked, the HI-203E will transmit valid navigation information through its serial interface. The navigation data contains following information:...

  • Page 6: Receiver Specifications

    Primary Power +3.8V ~ 8V DC Current Consumption 125mA @ 3.3V Serial Interface RS-232 Protocol HAICOM Private @ 4800/9600 baud, 8-None-1 NMEA-0183 v2.20 @ 4800/9600 baud, 8-None-1 Datum 219 standard datum, default WGS-84 Antenna On-Board Patch Antenna NMEA Message GGA, GLL, GSA, GSV, RMC, and VTG Dimension 45.5mm x 31mm x 15mm...

  • Page 7: Hardware Interface

    SECTION 3 HARDWARE INTERFACE 3.1 MECHANICAL DIMENSIONS Unit:mm Top View I/O Cable 57.95 0.2 Lateral View 57.95 0.2 I/O Cable Bottom View I/O Cable 57.95 0.2...

  • Page 8: Rf Module Hardware Interface

    3.2 RF MODULE HARDWARE INTERFACE RFIC Description Vcc Input : 3.3V CTRL : Input signal for RF module power-saving control GND : Power and signal ground REF Out : 16.367MHz reference output GND : Power and signal ground IF Out : 4.092MHz IF signal output...

  • Page 9: Baseband Hardware Interface

    3.3 BASEBAND HARDWARE INTERFACE The 10 pin-connector is the same as the RF connector. A1 : GND, Ground A2 : 1PPS Valid Signal (1:Valid, 0:Invalid) A3 : 1PPS B1 : TX, Serial port output (GPS navigation output) B2 : RX, Serial port input B3 : Vcc, Power supply input, 3.8V ~ 8.0V DC unregulated The following is a functional description of the pins on the 6-pin interface connector.

  • Page 10: O Ne-Pulse-Per-Second (1Pps) Output

    3.4 O NE-PULSE-PER-SECOND (1PPS) OUTPUT The one-pulse-per-second output is provided for applications requiring precise timing measurements. The output pulse is 1usec in duration. Rising edge of the output pulse is accurate to +/-1usec with respect to the start of each GPS second. Accuracy of the one-pulse-per-second output is maintained only when the GPS receiver has valid position fix.

  • Page 11: Software Interface

    SECTION 4 SOFTWARE INTERFACE This section describes the details of the serial port commands through which the HI-203E is controlled and monitored. The serial port commands allow users to set the receiver parameters, configure output message type, and retrieve status information. The baud rate and protocol of the host COM port must match the baud rate and protocol of the GPS receiver serial port for commands and data to be successfully transmitted and received.

  • Page 12: Default Values

    HDOP: 8 Receiver Operating Mode: Normal Mode (without 1PPS) Commands can be issued to the HI-203E to change the settings of the receiver. The new settings will remain effective on next power-on as long as the on-board rechargeable backup battery is not discharged. After the backup battery is discharged, factory preset default settings...
