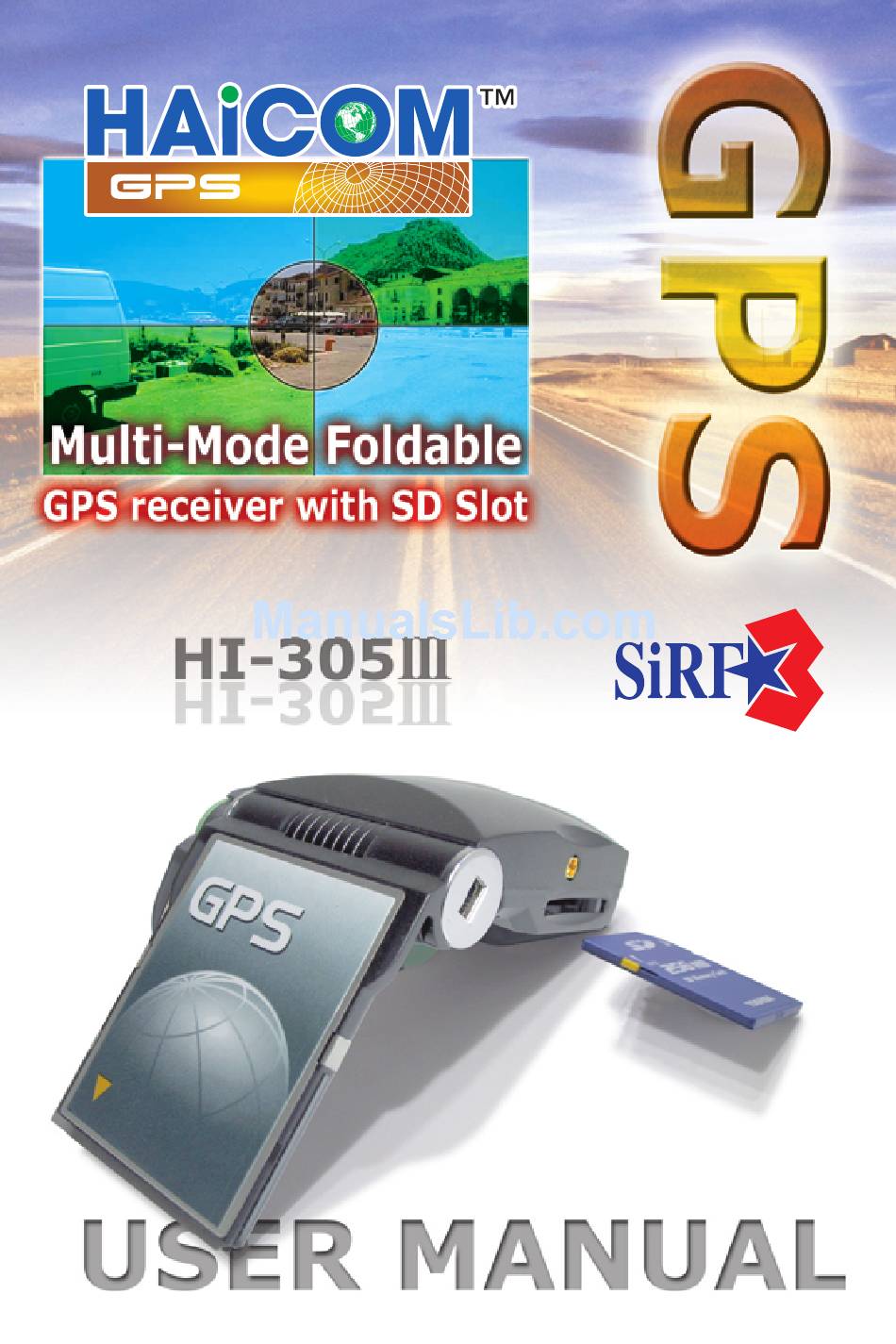

Haicom HI-305III User Manual

Multi-mode foldable gps receiver with sd slot
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Haicom HI-305III

Summary of Contents for Haicom HI-305III

  • Page 2: Table Of Contents

    Bluetooth GPS Receiver Table of Contents 1. Overview 1.1 Main Features ....................1.2 Advantages ....................2. Dimensions 2.1 HI-305III Dimension ................... 2.2 Specifications ....................3. Packaging 3.1 Introductions ....................3.2 Standard Packaging: ................3.3 Optional Accessories: ....................4. System 4.1 LED Indicator ....................

  • Page 3: Overview 1.1 Main Features

    1.1 HI-305III Features Multi-Mode GPS receiver With SD memory slot HI-305III as a CompactFlash™ GPS receiver HI-305III as a SD Card via CF interface HI-305III as a PDA GPS receiver Cigarette lighter DC 12V~24V...

  • Page 4: Advantages

    CompactFlash GPS, USB GPS, Bluetooth GPS, Serial GPS, Any PDA GPS, etc. You won't need to buy several GPS receivers to fit your mobile devices, like, Notebook PC, Tablet PC, PDA, etc. With HI-305III , one unit fit all interfaces from different devices.
  • Page 5 Compact Flash interface, there will be a folder created from host device. Beside using it as a complete GPS solution, HI-305III can also be a SD card reader in CF interface. One can store any file into any standard SD memory card and the file can be read or write via the Compact Flash interface.

  • Page 6: Dimensions

    2. Dimension 2.1 Dimension: Unit: mm Top View: Botton View: Front View: Back View: MMCX antenna LED indicator Side View: Mini-1394 SD slot Unfolded View:...

  • Page 7: Specifications

    2.2 Specifications Interfaces: Compact Flash type I & Mini-1394 Protocol: NMEA0183 GGA, GSA, GSV, RMC Baud Rate: 4800, N, 8, 1 Max. Update Rate: 1 Hz Datum: WGS84 Channel: 20 channel Frequency: L1, 1575.42MHz Hot Start: 3 ~ 6 sec. Average Warm Start: 34 sec.

  • Page 8: Packaging

    3. Packaging 3.1 HI-305 Introductions HI-305III is a GPS receiver with Compact Flash type I / mini-1394 interfaces and built-in active antenna for high sensitivity to tracking signal. Based on the SiRF star III Ultra high sensitive chip set and...

  • Page 9: Standard Packaging

    3.2 Standard Packaging: Model Name Model# 1. Multi-Mode Foldable GPS receiver with SD slot unit HI-305III 2. Male Mini-1394 to PS/II connecting cable PS2-1394 3. Carrying pouch BAG-002 4. Mini CD (containing user Manual CD . . . CDR-01 5. User Manual...

  • Page 10: Optional Accessories

    3.3 Optional Accessories: Model Name Model# 1. MMCX external antenna ATN-MMC 2. CF-PCMCIA adapter CF-PCM 3. PS/II to USB connecting cable PS2-USB 4. PS/II to DB9 serial connecting cable PS2-DB9 5. PS/II to PDA connecting cable/charger PS2-XXX 6. Bluetooth Slipper HI-401BT...

  • Page 11: System

    GPS signal. Plug the external antenna with MMCX connector to the plug on the side of HI-305III . Place the magnetic external antenna on the roof of the car or outdoor open-space, and make sure place it in correct direction.

  • Page 12: Installation

    COM port & baud rate: 4800, N, 8, 1. Usually, the COM port is COM 2~COM 10 depending on the PDA type. User can use the testing program provided with the package to detect the COM port that HI-305III is using.
  • Page 13 There is a small CD included along with every standard package. The CD contains certain test program and all related driver. Using the HI-305III in GPS applications, the user won't need install any driver except for the following circumstances: 1. USB driver: When use HI-305III in G-mouse mode with USB...

  • Page 14: Gps Technical Data

    6. GPS Technical Data 6.1 ONE-PULSE-PER-SECOND (1PPS) OUTPUT The one-pulse-per-second output is provided for applications requiring precise timing measurements. The output pulse is 1usec in duration. Rising edge of the output pulse is accurate to +/-1usec with respect to the start of each GPS second. Accuracy of the one- pulse-per-second output is maintained only when the GPS receiver has valid position fix.

  • Page 15: Software Interface Software Interface

    The default receiver protocol is 4800bps, 8 data bits, 1 stop bit, and none parity. 6.3 NMEA OUTPUT MESSAGE SPECIFICATION The HI-305III supports NMEA-0183 output format as defined by the National Marine Electronics Association (http://www.nmea.org). The currently supported NMEA messages for GPS applications are:...

  • Page 16: Nmea Messages

    6.4 NMEA Messages The serial interface protocol is based on the National Marine Electronics Association's NMEA 0183 ASCII interface specification. This standard is fully define in "NMEA 0183, Version 3.01" The standard may be obtained from NMEA, www.nmea.org GGA - GPS FIX DATA Time, position and position-fix related data (number of satellites in use, HDOP, etc.).
  • Page 17 Field Example Description 104549.04 UTC time in hhmmss.ss format, 000000.00 ~ 235959.99 2447.2038 Latitude in ddmm.mmmm format Leading zeros transmitted Latitude hemisphere indicator, 'N' = North, 'S' = South 12100.4990 Longitude in dddmm.mmmm format Leading zeros transmitted Longitude hemisphere indicator, 'E' = East, 'W' = West Position fix quality indicator 0: position fix unavailable...
  • Page 18 GLL - LATITUDE AND LONGITUDE, WITH TIME OF POSITION FIX AND STATUS Latitude and longitude of current position, time, and status. Format: $GPGLL,<1>,<2>,<3>,<4>,<5>,<6>,<7>*<8><CR><LF> Example: $GPGLL,2447.2073,N,12100.5022,E,104548.04,A, A*65<CR><LF> Field Example Description 2447.2073 Latitude in ddmm.mmmm format Leading zeros transmitted Latitude hemisphere indicator, 'N' = North, 'S' = South 12100.5022 Longitude in dddmm.mmmm format...
  • Page 19 GSA - GPS DOP AND ACTIVE SATELLITES GPS receiver operating mode, satellites used for navigation, and DOP values. Format: $GPGSA,<1>,<2>,<3>,<3>,<3>,<3>,<3>,<3>,<3>,<3>, <3>,<3>,<3>,<3>,<4>,<5>,<6>*<7><CR><LF> Example: $GPGSA,A,3,26,21,,,09,17,,,,,,,10.8,02.1,10.6*07<CR><LF> Field Example Description Mode, 'M' = Manual, 'A' = Automatic Fix type, 1 = not available, 2 = 2D fix, 3 = 3D fix 26,21,,,09, PRN number, 01 to 32, of satellite 17,,,,,,...
  • Page 20 GSV - GPS SATELLITE IN VIEW Number of satellites in view, PRN number, elevation angle, azimuth angle, and C/No. Only up to four satellite details are transmitted per message. Additional satellite in view information is sent in subsequent GSV messages. Format: $GPGSV,<1>,<2>,<3>,<4>,<5>,<6>,<7>, ...
  • Page 21 RMC - RECOMMANDED MINIMUM SPECIFIC GPS/TRANSIT DATA Time, date, position, course and speed data. Format: $GPRMC,<1>,<2>,<3>,<4>,<5>,<6>,<7>,<8>,<9>,<10>, <11>,<12>*<13><CR><LF> Example: $GPRMC,104549.04,A,2447.2038,N,12100.4990,E, 016.0,221.0,250304,003.3,W,A*22<CR><LF> Field Example Description 104549.04 UTC time in hhmmss.ss format, 000000.00 ~ 235959.99 Status, 'V' = navigation receiver warning, 'A' = valid position 2447.2038 Latitude in dddmm.mmmm format Leading zeros transmitted...
  • Page 22 VTG - COURSE OVER GROUND AND GROUND SPEED Velocity is given as course over ground (COG) and speed over ground (SOG). Format: GPVTG,<1>,T,<2>,M,<3>,N,<4>,K,<5>*<6><CR><LF> Example: $GPVTG,221.0,T,224.3,M,016.0,N,0029.6,K,A*1F<CR><LF> Field Example Description 221.0 True course over ground, 000.0 ~ 359.9 degrees 224.3 Magnetic course over ground, 000.0 ~ 359.9 degrees 016.0 Speed over ground,...

  • Page 23: Default Values

    6.4 DEFAULT VALUES The product has the following factory preset default values: Datum: 000 (WGS-84) NMEA Enable Switch: GGA ON GSA ON GSV ON RMC ON Checksum ON Baud Rate: 4800 bps Elevation Mask: 5 degrees DOP Mask: DOP Select: Auto GDOP: 20 PDOP: 15 HDOP: 8...

  • Page 24: Troubleshooting

    6.6 TROUBLESHOOTING Problem Reasons Solutions No Position Weak or no GPS signal Place the HI-305III under an output but can be received at the open space, then, start GPS timer is place of HI-305III unit again. counting At outdoor space but GPS...

  • Page 25: Laptop Pc Installations

    Get Connected; Get Connected; Installation Guides Installation Guides Laptop PC Installations 1. Click the hotfixinstaller.exe file from 2. Reboot the system the \HI-305\Driver\PC inside the inclusive small CD 3. Insert HI-305 (via CF-PCMCIA 4. Click " Continue Anyway " adaptor) to your computer, then, select "automatically"...
  • Page 26 5. Click " Finish " 6. Select " automatically ", Then, click " Next " 7. Select " OK " 8. Select " Browse "...
  • Page 27 9. Assign it to CD ROM: \HI-305\ 10. Click " Open " Driver\PC 11. Select " OK " 12. Select " Finish "...
  • Page 28 13. Select " automatically ", 14. Click " Continue Anyway " Then, click " Next " 15. Select " Finish "...
  • Page 29 Checking Device & COM Port 1. On " My Computer " click the 2. Click " Device Manager " mouse right button, Then, select " Properties " 3. See Device & COM Port location 4. Under " My Ccmputer " should see HI-305 SD Memory location...

  • Page 30: Pda Installations

    PDA Installations 1. Connect PDA with your LaptopPC 2. Execute the or DesktopPC via Active Sync. " elsdmmcsetup_pocketpc.exe " file from the inclusive CD 2. Select " Yes " to complete the driver installation procedures.
  • Page 31 DRIVER CHECK Start Settings System Remove Programs SD MEMORY CHECK 1. Insert HI-305 into the Compact Flash slot from your PDA. 2. Start Programs File Explorer My Device see ”Flash Drive” Folder GPS COM PORT CHECK 1. First of all, please install the GPSInfo test program from E:\HI-305\GPSInfo file 2.
