Haicom HI-203E Mini-Din Use Manual

Gps receiver
Hide thumbs Also See for HI-203E Mini-Din:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading

Related Manuals for Haicom HI-203E Mini-Din

Summary of Contents for Haicom HI-203E Mini-Din

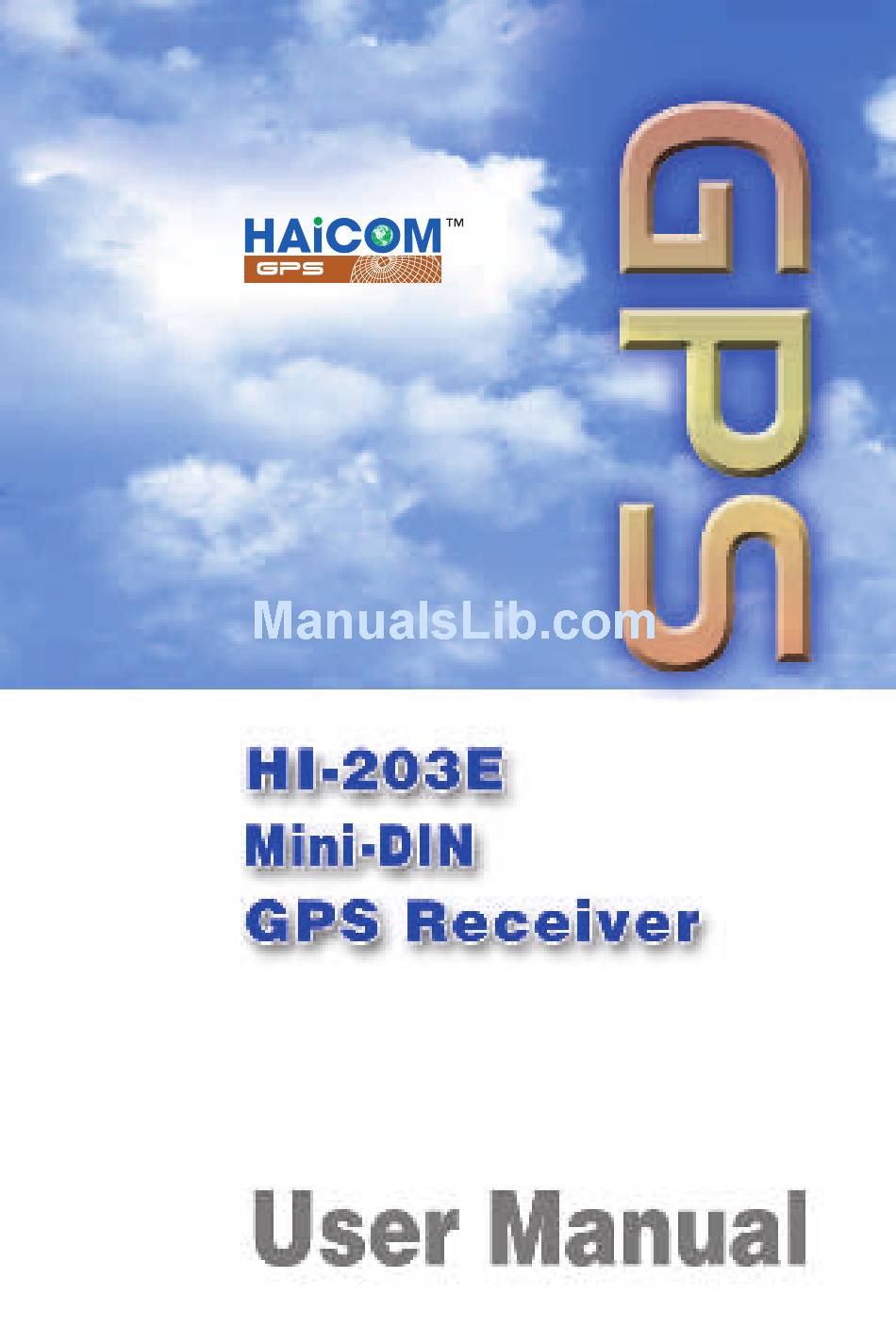

  • Page 2 H I - 2 0 3 E H I - 2 0 3 E G P S R e c e i v e r G P S R e c e i v e r...
  • Page 3 General description of what GPS is and how it works. GPS (Global Positioning System) is the only system today able to show you your exact position on the Earth anytime, in any weather, anywhere. GPS satellites, 24 in all, orbit at 11,000 nautical miles above the Earth. They are continuously monitored by ground stations located worldwide.
  • Page 4 GLOBAL POSITIONING SYSTEM HI-203E GPS RECEIVER Pin Assignment 1800±30mm Connectors 1 3 5 2 4 6 PS/2 Connector Function Min Din: 6 pin male Color connector Green White Wire: 3.6 ± 0.1mm Black Pocket PC HI-203E PS/II GPS receiver Can Connecting to a female PS/II Connector.
  • Page 5 1. HI-203E Series Introductions 1. HI-203E Series Introductions HI-203E is a GPS receiver with PS/II mini-DIN interfaces and built-in active antenna for high sensitivity to tracking signal. HI-203E is well suited to system integration and users who use any kinds of mobile devices, such as, PDA, notebook PC, Tablet PC, etc.

  • Page 6: Section 1 Introduction

    SECTION 1 INTRODUCTION 1.1 OVERVIEW The HI-203E GPS Receiver is intended for use in a wide range of applications. The receiver simultaneously tracks up to twelve satellites, provides accurate satellite positioning data with fast time-to-first-fix (TTFF) and low power consumption. It is designed for high performance and maximum flexibility in a wide range of applications including mobile asset tracking, in-vehicle automotive guidance, location sensing, telematics and so on.

  • Page 7: Receiver Operation

    SECTION 2 RECEIVER OPERATION Upon power up, after initial self-test has completed, the HI-203E will begin satellite acquisition and tracking process. Under normal open-sky condition, position-fix can be achieved within approximately 45 seconds (within 15 seconds if valid ephemeris data is already collected from recent use). After receiver position has been calculated, valid position, velocity and time information are transmitted through the on board serial interface.

  • Page 8: Receiver Specifications

    2.1 RECEIVER SPECIFICATIONS FEATURES DESCRIPTIONS General L1 frequency, C/A code, 12-channel Sensitivity -165 dBW minimum Update Rate Position: 25m CEP without S/A Accuracy Velocity : 0.1/sec without S/A Cold start: < 150sec (typical) Acquisition Warm start: < 45sec (typical) Hot start: < 15sec Reacquisition <100msec Altitude: -1000m to 18000m...

  • Page 9: Mechanical Dimensions

    SECTION 3 HARDWARE INTERFACE 3.1 MECHANICAL DIMENSIONS Unit:mm Top View 41±0.2 I/O Cable Lateral View 20±0.2 I/O Cable Bottom View LED indicator 41±0.2 I/O Cable 58±0.2...

  • Page 10: Rf Module Hardware Interface

    3.2 RF MODULE HARDWARE INTERFACE RFIC Descr i ption Vcc Input : 3.3V CTRL : Input signal for RF module power-saving control GND : Power and signal ground REF Out : 16.367MHz reference output GND : Power and signal ground IF Out : 4.092MHz IF signal output...

  • Page 11: Baseband Hardware Interface

    3.3 BASEBAND HARDWARE INTERFACE The 10 pin-connector is the same as the RF connector. A1 : GND, Ground A2 : 1PPS Valid Signal (1:Valid, 0:Invalid) A3 : 1PPS B1 : TX, Serial port output (GPS navigation output) B2 : RX, Serial port input B3 : Vcc, Power supply input, 3.8V ~ 8.0V DC unregulated The following is a functional description of the pins on the 6-pin interface connector.

  • Page 12: One-Pulse-Per-Second (1Pps) Output

    3.4 ONE-PULSE-PER-SECOND (1PPS) OUTPUT The one-pulse-per-second output is provided for applications requiring precise timing measurements. The output pulse is 1usec in duration. Rising edge of the output pulse is accurate to +/-1usec with respect to the start of each GPS second. Accuracy of the one-pulse-per-second output is maintained only when the GPS receiver has valid position fix.

  • Page 13: Section 4 Software Interface

    SECTION 4 SOFTWARE INTERFACE This section describes the details of the serial port commands through which the HI-203E is controlled and monitored. The serial port commands allow users to set the receiver parameters, configure output message type, and retrieve status information. The baud rate and protocol of the host COM port must match the baud rate and protocol of the GPS receiver serial port for commands and data to be successfully transmitted and received.

  • Page 14: Default Values

    APPENDIX B DEFAULT VALUES The product has the following factory preset default values: Datum: 000 (WGS-84) 000 (WGS-84) NMEA Enable Switch: GGA ON GLL OFF GSA ON GSV ON RMC ON VTG OFF Checksum ON Baud Rate: 4800 Baud Elevation Mask: 5 degrees DOP Mask: DOP Select: Auto...

  • Page 15: Troubleshooting

    TROUBLESHOOTING Problem Reasons Solutions Position Weak or no GPS signal Connect external output can be received at the antenna to HI-203E and timer place of HI-203E unit place the antenna under a counting open space, then, press 'Reset' At outdoor space but GPS To try again, go to outdoor signal blocked...
  • Page 16 G P S R e c e i v e r G P S R e c e i v e r Offizielle Vertretung Schweiz: Sintrade AG Kriesbachstrasse 30 CH-8600 Dübendorf www.sintrade.ch...
