Instruction Manual

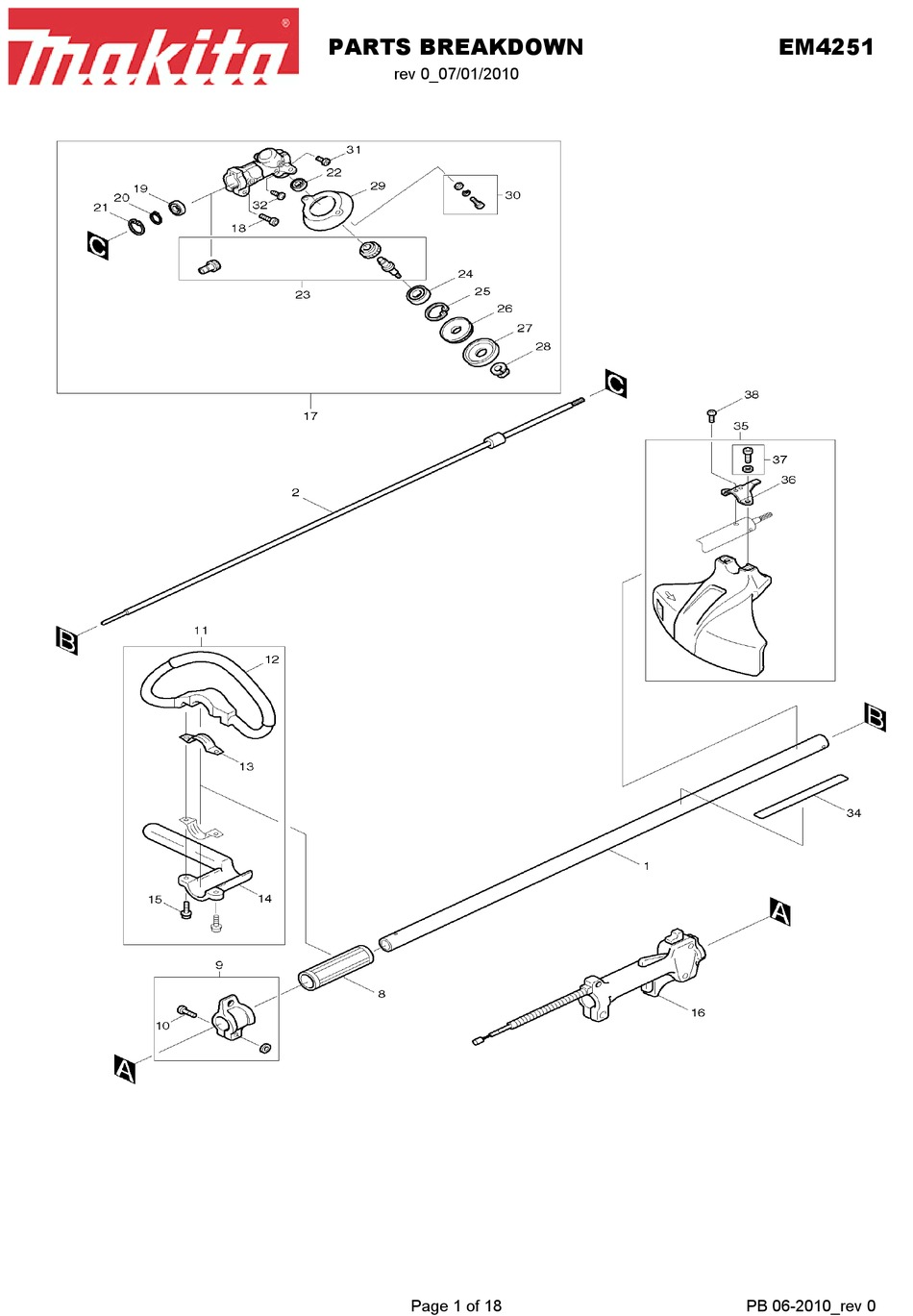

PARTS BREAKDOWN
EM4251
PARTS BREAKDOWN
EM4251
rev 0_07/01/2010
Page 1 of 18
1 of 16
PB 06-2010_rev 0
06/10/2010
