Makita EM4251 Parts Breakdown

Makita em4251 grass trimmer:
Hide thumbs Also See for EM4251:

Advertisement

Quick Links

Download this manual See also: Instruction Manual, Parts Breakdown
Parts Breakdown
EM4251
Page 1 of 17
2/8/2008

Advertisement

loading

Related Manuals for Makita EM4251

Summary of Contents for Makita EM4251

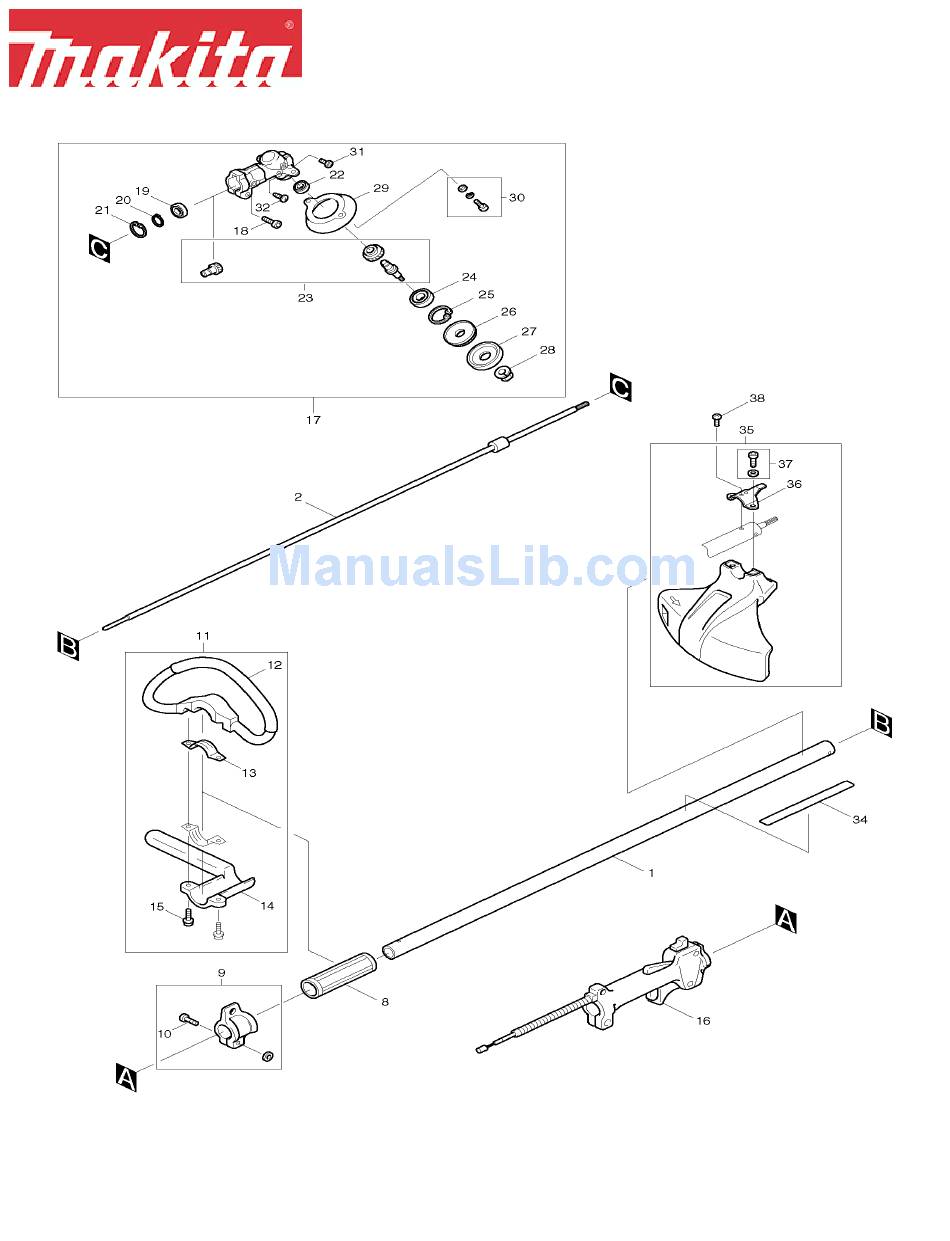

  • Page 1 Parts Breakdown EM4251 Page 1 of 17 2/8/2008...
  • Page 2 Parts Breakdown EM4251 Page 2 of 17 2/8/2008...
  • Page 3 Parts Breakdown EM4251 Page 3 of 17 2/8/2008...
  • Page 4 Parts Breakdown EM4251 Page 4 of 17 2/8/2008...
  • Page 5 Parts Breakdown EM4251 Page 5 of 17 2/8/2008...
  • Page 6 Parts Breakdown EM4251 Page 6 of 17 2/8/2008...
  • Page 7 Parts Breakdown EM4251 Page 7 of 17 2/8/2008...
  • Page 8 Parts Breakdown EM4251 Page 8 of 17 2/8/2008...
  • Page 9 Parts Breakdown EM4251 Page 9 of 17 2/8/2008...
  • Page 10 Parts Breakdown EM4251 Page 10 of 17 2/8/2008...
  • Page 11 Parts Breakdown EM4251 Page 11 of 17 2/8/2008...
  • Page 12 Parts Breakdown EM4251 Page 12 of 17 2/8/2008...
  • Page 13 HANDLE COMPLETE, RPT250 12 6274004010 LOOP HANDLE, EM4251 13 6214014010 GUARD STAY, EM4251 14 6214016020 HANDLE HOLDER, RBC2510 14 6274004020 LOOP HANDLE COVER, EM4251 15 6274004040 S.H.BOLT M6X20, EM4251 15 6274004041 S.H. BOLT M6X18,RPT250 15 6214016030 SCREW, RBC2510 16 6245003000...
  • Page 14 51 5921500502 CAMGEAR COVER, EM4251 52 5921004000 ROCKER COVER CPL.,EM4251 52 5921004001 ROCKER COVER CPL., EM4250 53 5921500700 CAMGEAR COVER GASKET, EM4251 54 5921500800 ROCKER COVER GASKET, EM4251 55 5921501000 LEAD VALVE, EM4251 56 5921501100 RETAINER PLATE, EM4251 57 0119049980 S.H.
  • Page 15 120 5926009000 CARBURETOR, EM4250 120 5926008000 CARBURETOR, EM4251 121 5926002060 PUMP BODY ASS'Y, EM4251 121 5926002140 122 5236046140 AIR PURGE BODY ASS'Y, EM4251 123 5236046050 PRIMER PUMP COVER, EM4251 124 5246001150 PRIMER PUMP, RBC230 125 5926008010 METERING DIAPHRAGM, EM4251 126 5236046040...
  • Page 16 TUBE, EM4251 176 5236503900 FILTER, RBL500 177 0561059990 HOSE CLAMP, EM4251 178 5926012000 FUEL TANK CAP, EM4251 178 5926006001 FUEL TANK CAP ASS'Y, EM4251 179 5926005000 STRAP UNIT, EM4251 179 5256067000 STRAP, RBC2510 180 6249501501 STRAP, EM4251 181 5036500200 PLATE, RBC230...
  • Page 17 Parts Breakdown EM4251 201 5927500000 PLUG COVER, EM4251 202 0566059980 CLAMP, RBC201 203 5929501001 TRADE MARK LABEL, EM4250 207 5923008010 SPARK ARRESTER, EM4251 207 5923008011 SPARK ARRESTER, EM4251 208 5923503900 PIPE, EM4250 209 5921501800 CHECK VALVE, EM4251 210 0043605100 SCREW ASSEMBLY, EH450...
