Summary of Contents for HIKVISION DS-2CD6362F-I
- Page 1 Camera Network Fisheye Camera Quick Operation Guide UD.6L0201B1370A01...
- Page 2 About This Document This manual applies to the following camera models. Model DS-2CD6362F-I(V)(S) DS-2CD6332FWD-I(V)(S) This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice.
-
Page 3: Regulatory Information
Network Fisheye Camera·Quick Operation Guide Regulatory Information FCC Information FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. - Page 4 Network Fisheye Camera·Quick Operation Guide 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
-
Page 5: Safety Instruction
Network Fisheye Camera·Quick Operation Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected. - Page 6 Network Fisheye Camera·Quick Operation Guide ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
- Page 7 Network Fisheye Camera·Quick Operation Guide ● Do not place the camera in extremely hot, cold (the operating temperature shall be-30°C ~+60°C, or -40°C ~ 60°C if the camera model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation.
-
Page 8: Table Of Contents
Network Fisheye Camera·Quick Operation Guide Table of Contents 1 Appearance Description ..............8 1.1 Overview of Fisheye Camera ........... 8 1.2 Disassembling the Camera ..........9 2 Installation ..................11 2.1 Ceiling Mounting ............12 2.2 Wall Mounting with a Slant Mounting Base ....14 2.3 Wall Mounting with a Junction Box ....... -
Page 9: Appearance Description

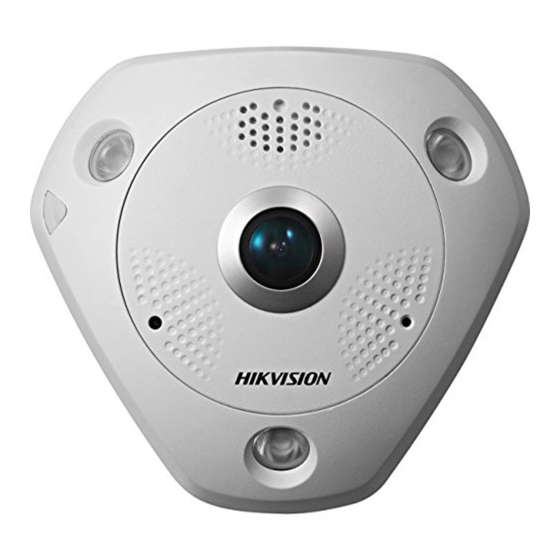

Network Fisheye Camera·Quick Operation Guide 1 Appearance Description 1.1 Overview of Fisheye Camera Figure 1-1 Overview of the Fisheye Camera Figure 1-2 Disassemble of Fisheye Camera... -
Page 10: Disassembling The Camera
Network Fisheye Camera·Quick Operation Guide Table 1-1 Description of Overview Description Description Camera Body Ethernet Interface Reset RS-485 Interface Micro SD Card Slot Power Interface Camera Cover Audio In Alarm Interfaces Audio Out 1.2 Disassembling the Camera Steps: 1. Loosen the lock screw on the camera cover. 2. - Page 11 Network Fisheye Camera·Quick Operation Guide Oval Sheet Figure 1-3 Move the Oval Sheet Aside Press RESET about 10s when the camera is powering on or rebooting to restore the default settings, including the user name, password, IP address, port No., etc.
-
Page 12: Installation
Network Fisheye Camera·Quick Operation Guide 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● Make sure all the related equipment is power-off during the installation. -
Page 13: Ceiling Mounting
Network Fisheye Camera·Quick Operation Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing reflection. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS. - Page 14 Network Fisheye Camera·Quick Operation Guide Figure 2-2 Fix the Screws 3. Connect the corresponding power cable, network cable, audio and alarm cables. 4. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera body to secure the camera with the screws.
-
Page 15: Wall Mounting With A Slant Mounting Base
Network Fisheye Camera·Quick Operation Guide Figure 2-4 Tighten the Lock Screw on the Camera Cover 2.2 Wall Mounting with a Slant Mounting Base The wall mounting with a slant mounting base provides a wider surveillance view compared to the wall mounting. And you need to purchase a slant mounting base separately if this mounting method is selected. - Page 16 Network Fisheye Camera·Quick Operation Guide 2. Screw the three screws half-deep to the mounting base. Figure 2-6 Hammer the Screws 3. Connect the corresponding power cable, network cable, audio and alarm cables. 4. Align the screw holes to the inserted screws, hook the camera body to the screws, and route the camera body to secure the camera with the screws.
- Page 17 Network Fisheye Camera·Quick Operation Guide Figure 2-7 Install the Camera Body and Cover Lock Screw Figure 2-8 Tighten the Lock Screw on the Camera Cover...
-
Page 18: Wall Mounting With A Junction Box
Network Fisheye Camera·Quick Operation Guide 2.3 Wall Mounting with a Junction Box You have to purchase a junction box separately if this mounting method is selected. Steps: 1. Fix the junction box to the wall with screws. Figure 2-9 Fix the Junction Box 2. - Page 19 Network Fisheye Camera·Quick Operation Guide 6. Install the camera cover to the camera body, and fix them by tightening the screw on the camera cover. Figure 2-10 Install the Camera Body and Cover Lock Screw Figure 2-11 Tighten the Lock Screw on the Camera Cover...
-
Page 20: Wall Mounting With A Bracket
Network Fisheye Camera·Quick Operation Guide 2.4 Wall Mounting with a Bracket You have to purchase the bracket separately if this mounting method is selected. 1. Install the bracket to the wall. 2. Install the mounting base to the bracket. 3. Screw the three supplied screws half-deep to the mounting base. Figure 2-12 Install the Bracket 4. - Page 21 Network Fisheye Camera·Quick Operation Guide 7. Install the camera cover to the camera body, and fix them by tightening the screw on the camera cover. Figure 2-13 Install the Camera Body and Cover Figure 2-14 Tighten the Screw on the Camera Cover...
-
Page 22: Setting The Network Camera Over The Lan
Network Fisheye Camera·Quick Operation Guide 3 Setting the Network Camera over the Purpose: To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the SADP or PCNVR software to search and change the IP of network camera. - Page 23 Network Fisheye Camera·Quick Operation Guide Use PCNVR software and to list the online devices. Please refer to the user manual of PCNVR client software for detailed information. 2. Change the IP address and subnet mask to the same subnet as of your PC.
- Page 24 Network Fisheye Camera·Quick Operation Guide Figure 3-2 Search Online Devices Device can be searched and displayed in the list in 15 seconds after it goes online; it will be removed from the list in 45 seconds after it goes offline. Search online devices manually: You can also click to refresh the online device list...
-
Page 25: Modify Device Information
Network Fisheye Camera·Quick Operation Guide You can click on each column heading to order the information; you can click to show the device table and hide the network parameter panel on the right side, or click to show the network parameter panel. ... - Page 26 Network Fisheye Camera·Quick Operation Guide Figure 3-4 Modify Network Parameters 3. Enter the IP address of network camera in the address field of the web browser to view the live video. The default value of the IP address is “192.0.0.64”. The default user name is “admin”, and password is “12345”.
-
Page 27: Accessing Via Web Browser
Network Fisheye Camera·Quick Operation Guide 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 6.0 and above version, Apple Safari... - Page 28 Network Fisheye Camera·Quick Operation Guide Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. You may have to close the web browser to finish the installation of the plug-in.
- Page 29 Network Fisheye Camera·Quick Operation Guide Figure 4-2 Download Plug-in Figure 4-3 Install Plug-in (1)
- Page 30 Network Fisheye Camera·Quick Operation Guide Figure 4-4 Install Plug-in (2) 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. For detailed instructions of further configuration, please refer to the user manual of network camera.
