HIKVISION DS-2CD63C5G0-IS User Manual

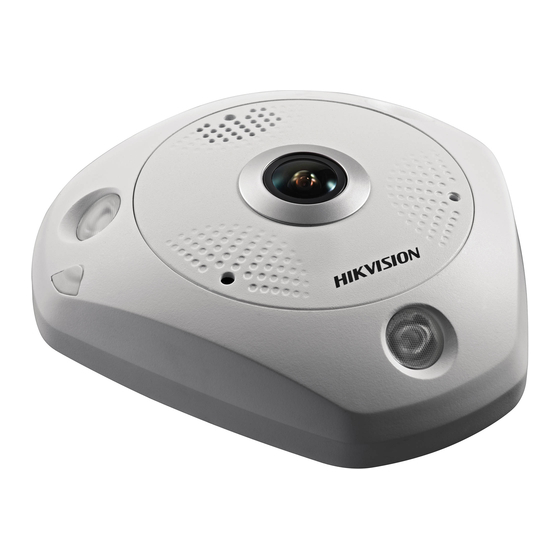

Network fisheye camera
Hide thumbs Also See for DS-2CD63C5G0-IS:
Table of Contents

Advertisement

Quick Links

Download this manual
Network Fisheye Camera
User Manual
UD14558B

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-2CD63C5G0-IS

Summary of Contents for HIKVISION DS-2CD63C5G0-IS

  • Page 1 Network Fisheye Camera User Manual UD14558B...
  • Page 2 Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
  • Page 3 LOSS DATA DOCUMENTATION, CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL...
  • Page 4 User Manual of Network Fisheye Camera residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 5 User Manual of Network Fisheye Camera 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).
  • Page 6 User Manual of Network Fisheye Camera to all the local codes.  Please install blackouts equipment into the power supply circuit for convenient supply interruption.  Please make sure that the ceiling can support more than 50(N) Newton gravities if the camera is fixed to the ceiling.
  • Page 7 User Manual of Network Fisheye Camera  Improper use or replacement of the battery may result in hazard of explosion. Please use the manufacturer recommended battery type. Notes: For the camera supports IR, you are required to pay attention to the following precautions to prevent IR reflection: ...

  • Page 8: Table Of Contents

    User Manual of Network Fisheye Camera Table of Contents Chapter 1 System Requirement ................1 Chapter 2 Network Connection ................2 Setting the Network Camera over the LAN ............2 2.1.1 Wiring over the LAN ......................2 2.1.2 Activating the Camera ...................... 3 Setting the Network Camera over the WAN ............
  • Page 9 User Manual of Network Fisheye Camera User Management ..................42 5.5.1 User Management ......................42 5.5.2 Online Users ........................44 Chapter 6 Network Settings ..................45 Configuring Basic Settings ................45 6.1.1 Configuring TCP/IP Settings .................... 45 6.1.2 Configuring DDNS Settings ....................47 6.1.3 Configuring PPPoE Settings .....................
  • Page 10 User Manual of Network Fisheye Camera Configuring Audio Exception Detection ............92 Configuring Intrusion Detection ..............94 Configuring Line Crossing Detection ..............96 Configuring Region Entrance Detection ............98 9.10 Configuring Region Exiting Detection ............100 9.11 Configuring Unattended Baggage Detection ..........102 9.12 Configuring Object Removal Detection ............

  • Page 11: Chapter 1 System Requirement

    User Manual of Network Fisheye Camera Chapter 1 System Requirement Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024× 768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version...

  • Page 12: Chapter 2 Network Connection

    User Manual of Network Fisheye Camera Chapter 2 Network Connection Note:  You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

  • Page 13: Activating The Camera

    User Manual of Network Fisheye Camera  Refer to the Figure 2-2 to set network camera over the LAN via a switch or a router. Connecting Directly Figure 2-1 Connecting via a Switch or a Router Figure 2-2 2.1.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera.
  • Page 14 User Manual of Network Fisheye Camera Figure 2-3 Activation via Web Browser 3. Create a password and input the password into the password field. A password with user name in it is not allowed. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the...
  • Page 15 User Manual of Network Fisheye Camera Select inactive device. Input and confirm password. Figure 2-4 SADP Interface Note: The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details. 3. Create a password and input the password in the password field, and confirm the password.
  • Page 16 User Manual of Network Fisheye Camera 5. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. Modify the IP Address Figure 2-5 6. Input the admin password and click Modify to activate your IP address modification.
  • Page 17 User Manual of Network Fisheye Camera Figure 2-6 Control Panel 2. Click the Device Management icon to enter the Device Management interface, as shown in the figure below. Device Management Interface Figure 2-7...
  • Page 18 User Manual of Network Fisheye Camera 3. Check the device status from the device list, and select an inactive device. 4. Click the Activate button to pop up the Activation interface. 5. Create a password and input the password in the password field, and confirm the password.

  • Page 19: Setting The Network Camera Over The Wan

    User Manual of Network Fisheye Camera Figure 2-9 Modifying the Network Parameters 8. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP. 9. Input the password to activate your IP address modification. 2.2 Setting the Network Camera over the WAN Purpose: This section explains how to connect the network camera to the WAN with a static IP...

  • Page 20: Dynamic Ip Connection

    User Manual of Network Fisheye Camera 2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed IP address configuration of the network camera. 3. Save the static IP in the router. 4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary according to the different routers.
  • Page 21 User Manual of Network Fisheye Camera 1. Connect the network camera to the router. 2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 2.1.2 for detailed IP address configuration of the network camera. 3.
  • Page 22 User Manual of Network Fisheye Camera Normal Domain Name Resolution Figure 2-13 Steps: 1. Apply a domain name from a domain name provider. 2. Configure the DDNS settings in the DDNS Settings interface of the network camera. Refer to Section 5.3.4 Configuring DDNS Settings for detailed configuration.

  • Page 23: Chapter 3 Access To The Network Camera

    User Manual of Network Fisheye Camera Chapter 3 Access to the Network Camera 3.1 Accessing by Web Browsers Note: For certain camera models, HTTPS is enabled by default and the camera creates an unsigned certificate automatically. When you access to the camera the first time, the web browser prompts a notification about the certificate issue.

  • Page 24: Accessing By Client Software

    User Manual of Network Fisheye Camera Click Login. (Optional) Install the plug-in before viewing the live video and operating the camera. Follow the installation prompts to install the plug-in. Note: For camera that supports plug-in free live view, if you are using Google Chrome 45 and its above version or Mozilla Firefox 52 and its above version, plug-in installation is not required.
  • Page 25 User Manual of Network Fisheye Camera iVMS-4200 Main View Figure 3-3 Note: For detailed information about the software, please refer to the user manual of the iVMS-4200 Client Software.

  • Page 26: Chapter 4 Live View

    User Manual of Network Fisheye Camera Chapter 4 Live View 4.1 Live View Page Purpose: The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.
  • Page 27 User Manual of Network Fisheye Camera Menu Bar Control Preset/Patrol Live View Tool Bar Setting Window Display Control Figure 4-2 Live View Page (Hardware Decoding) Menu Bar: Click the tab to enter Live View, Playback, Picture, Application and Configuration page respectively. Display Control: The display control area allows you to select decoding mode, mount type and display mode of live view.
  • Page 28 User Manual of Network Fisheye Camera Table 4-1 Description of Mount Types Mount Type Icon Description Ceiling mounting. Wall mounting. Table mounting.  Display Mode You can select a display mode for the layout of the live view window. The description of each display mode is shown in the following table.
  • Page 29 User Manual of Network Fisheye Camera Mode Description Mode Description Live view with 1 fisheye view Live view with into 4 PTZ views. and 3 PTZ views. Live view with 1 fisheye view Panorama view. and 8 PTZ views. Live view with a panorama view Live view with a panorama and 3 PTZ views.

  • Page 30: Starting Live View

    User Manual of Network Fisheye Camera Note: Selectable stream types may be different between camera channels under different display modes. Detailed information is shown in the following table. Live View Window: Display the live video on the display window of live view. Toolbar: Start/Stop the live view, enable/disable the two-way audio, adjust the audio volume, capture pictures, record the video files, etc.
  • Page 31 User Manual of Network Fisheye Camera Figure 4-3 Live View Interface (Software Decoding) Figure 4-4 Live View Interface (Hardware Decoding) Descriptions of Live View Icons Table 4-4 Icon Description Start all live view. Stop all live view. Set aspect ratio as 4:3. Icon Description Set aspect ratio as 16:9.

  • Page 32: Recording And Capturing Pictures Manually

    User Manual of Network Fisheye Camera Audio on and adjust the volume. Mute. Start/stop two-way audio. Start/stop digital zoom). Manually capture a picture. Full screen. Show/hide the PTZ panel. Notes: Toolbar icons on the live view page vary according to decoding modes and camera models.

  • Page 33: Ptz Control Panel

    User Manual of Network Fisheye Camera right of the window to realize pan/tilt/zoom control of the PTZ View. PTZ View Navigation PTZ Control Figure 4-5 Note: If Fisheye View or Panorama View is selected for live view together with the PTZ View, when you click on a random PTZ view, a navigation box indicating the location of the PTZ view will be shown on the fisheye or panorama view.
  • Page 34 User Manual of Network Fisheye Camera Figure 4-6 PTZ Control Panel Table 4-5 Descriptions of PTZ Control Panel Icon Description Direction buttons Start/stop auto scan Zoom out/Zoom in Focus -/Focus + Iris -/Iris + Adjust speed of pan/tilt movements Enable/disable light Auxiliary Focus Enable/disable wiper Lens initialization...

  • Page 35: Setting/Calling/Deleting A Preset

    User Manual of Network Fisheye Camera 5. (Optional) you can click on other buttons to realize corresponding functions. 4.4.2 Setting/Calling/Deleting a Preset  Setting a Preset: Purpose: A preset for the fisheye camera is a predefined PTZ View which contains information of pan, tilt, focus and other parameters.

  • Page 36: Setting/Calling/Deleting A Patrol

    User Manual of Network Fisheye Camera The PTZ View of the fisheye camera can directly and quickly move to the area of interest, which is defined as a preset. Before you start: Set the preset. The icons ( ) will appear on the preset list. Steps: 1.
  • Page 37 User Manual of Network Fisheye Camera Patrol Configuration (1) Figure 4-8 2. Select a path No. from the drop-down list, and click the icon to configure patrol path. 3. Click to add a preset into the path, and click to delete a preset. 4.

  • Page 38: Chapter 5 Network Camera Configuration

    User Manual of Network Fisheye Camera Chapter 5 Network Camera Configuration 5.1 Configuring Local Parameters Purpose: The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.
  • Page 39 User Manual of Network Fisheye Camera  Display POS Information: Enable the function, feature information of the detected target is dynamically displayed near the target in the live image. The feature information of different functions are different. For example, ID and waiting time for Queue Management, height for People Counting, etc.

  • Page 40: Configure System Settings

    User Manual of Network Fisheye Camera 3. Click Save to save the settings. 5.2 Configure System Settings Purpose: Follow the instructions below to configure the system settings, include System Settings, Maintenance, Security, and User Management, etc. 5.2.1 Configuring Basic Information Enter the Device Information interface: Configuration >...
  • Page 41 User Manual of Network Fisheye Camera Figure 5-2 Time Settings 2. Select the Time Zone of your location from the drop-down menu. 3. Configure the NTP settings. (1) Click to enable the NTP function. (2) Configure the following settings: Server Address: IP address of NTP server. NTP Port: Port of NTP server.

  • Page 42: Configuring Rs232 Settings

    User Manual of Network Fisheye Camera Note: If the camera is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP software can be used to establish a NTP server for time synchronization.

  • Page 43: Configuring Rs485 Settings

    User Manual of Network Fisheye Camera 1. Enter RS232 Port Setting interface: Configuration > System > System Settings > RS232. 2. Configure the Baud Rate, Data Bit, Stop Bit, Parity, Flow Control, and Usage. RS232 Settings Figure 5-5 Note: If you want to connect the camera by the RS232 port, the parameters of the RS232 should be exactly the same with the parameters you configured here.

  • Page 44: Configuring Dst Settings

    User Manual of Network Fisheye Camera Figure 5-6 RS-485 Settings 2. Set the RS485 parameters and click Save to save the settings. By default, the Baud Rate is set as 9600 bps, the Data Bit is 8, the stop bit is 1 and the Parity and Flow Control is None.

  • Page 45: Configuring Metadata Settings

    User Manual of Network Fisheye Camera DST Settings Figure 5-7 2. Select the start time and the end time. 3. Select the DST Bias. 4. Click Save to activate the settings. 5.2.6 Configuring Metadata Settings Purpose: Metadata is the raw data the camera collects before algorithm processing. Metadata of intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal, queue management and face capture are supported.

  • Page 46: Open Source Software License

    User Manual of Network Fisheye Camera image by default. If the region is configured in the face capture settings, the camera detects the configured region. 5.2.7 Open Source Software License Information about the open source software that applies to the IP camera can be checked if required.

  • Page 47: Log

    User Manual of Network Fisheye Camera encryption password is required when you import the file to other cameras. Diagnose Information: click to download log and system information.  Import Config. File Configuration file is used for the batch configuration of the cameras. Steps: 1.

  • Page 48: Security Settings

    User Manual of Network Fisheye Camera Log Searching Interface Figure 5-8 2. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time. 3. Click Search to search log files. The matched log files will be displayed on the log list interface.

  • Page 49: Authentication

    User Manual of Network Fisheye Camera 5.4.1 Authentication Purpose: You can specifically secure the stream data of live view. Steps: 1. Enter the Authentication interface: Configuration > System > Security > Authentication. Authentication Figure 5-10 2. Set up authentication method for RTSP authentication and WEB authentication. Caution: Digest is the recommended authentication method for better data security.
  • Page 50 User Manual of Network Fisheye Camera IP Address Filter Interface Figure 5-11 2. Check the checkbox of Enable IP Address Filter. 3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed are selectable. 4. Set the IP Address Filter list. Add an IP Address ...

  • Page 51: Security Service

    User Manual of Network Fisheye Camera Modify an IP Figure 5-13 (3) Click the OK to finish modifying.  Delete an IP Address or IP Addresses. Select the IP address(es) and click Delete. 5. Click Save to save the settings. 5.4.3 Security Service To enable the remote login, and improve the data communication security, the camera provides the security service for better user experience.

  • Page 52: User Management

    User Manual of Network Fisheye Camera 5.5 User Management 5.5.1 User Management  As Administrator The admin user can add, delete or modify user accounts, and grant them different permissions. We highly recommend you manage the user accounts and permissions properly. Enter the User Management interface: Configuration >...
  • Page 53 User Manual of Network Fisheye Camera STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product.

  • Page 54: Online Users

    User Manual of Network Fisheye Camera 2. Slide the slide bar to set the simultaneous login. If the number of the illegal login attempts exceeds the set threshold, your access will be denied.  As Operator or User Operator or user can modify password. Old password is required for this action. 5.5.2 Online Users Purpose: You can see the current users who are visiting the device through this interface.

  • Page 55: Chapter 6 Network Settings

    User Manual of Network Fisheye Camera Chapter 6 Network Settings Purpose: Follow the instructions in this chapter to configure the basic settings and advanced settings. 6.1 Configuring Basic Settings Purpose: You can configure the parameters, including TCP/IP, DDNS, PPPoE, Port, and NAT, etc., by following the instructions in this section.
  • Page 56 User Manual of Network Fisheye Camera TCP/IP Settings Figure 6-1 2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address. 3. (Optional) Check the checkbox of Enable Multicast Discovery, and then the online network camera can be automatically detected by client software via private multicast protocol in the LAN.

  • Page 57: Configuring Ddns Settings

    User Manual of Network Fisheye Camera multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.  A reboot is required for the settings to take effect. 6.1.2 Configuring DDNS Settings Purpose: If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.
  • Page 58 User Manual of Network Fisheye Camera Figure 6-2 DynDNS Settings NO-IP:  Steps: (1) Choose the DDNS Type as NO-IP. Figure 6-3 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the User Name and Password. (5) Click Save and then you can view the camera with the domain name.

  • Page 59: Configuring Pppoe Settings

    User Manual of Network Fisheye Camera 6.1.3 Configuring PPPoE Settings Steps: Enter the PPPoE Settings interface: Configuration > Network > Basic Settings > PPPoE Figure 6-4 PPPoE Settings 2. Check the Enable PPPoE checkbox to enable this feature. 3. Enter User Name, Password, and Confirm password for PPPoE access. Note: The User Name and Password should be assigned by your ISP.

  • Page 60: Configuring Port Settings

    User Manual of Network Fisheye Camera 6.1.4 Configuring Port Settings Purpose: You can set the port No. of the camera, e.g., HTTP port, RTSP port and HTTPS port. Steps: 1. Enter the Port Settings interface, Configuration > Network > Basic Settings > Port Figure 6-5 Port Settings...

  • Page 61: Configure Nat (Network Address Translation) Settings

    User Manual of Network Fisheye Camera No. ranges from 1 to 65535. WebSockets Port: The default server port number is 7682. It can be changed to any port No. ranges from 1 to 65535. Note: WebSocket and WebSockets protocol are used for plug-in free live view. 3.

  • Page 62: Configure Advanced Settings

    User Manual of Network Fisheye Camera Note: Only when the UPnP™ function is enabled, ports of the camera are active. 3. Choose a friendly name for the camera, or you can use the default name. 4. Select the port mapping mode. Manual and Auto are selectable. Note: If you select Auto, you should enable UPnP™...
  • Page 63 User Manual of Network Fisheye Camera  For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.
  • Page 64 User Manual of Network Fisheye Camera Figure 6-7 SNMP Settings 2. Check the checkbox of Enable SNMPv1, Enable SNMP v2c, Enable SNMPv3 to enable the feature correspondingly. 3. Configure the SNMP settings. Note: The settings of the SNMP software should be the same as the settings you...

  • Page 65: Configuring Ftp Settings

    User Manual of Network Fisheye Camera configure here. 4. Click Save to save and finish the settings. Notes: • A reboot is required for the settings to take effect. • To lower the risk of information leakage, you are suggested to enable SNMP v3 instead of SNMP v1 or v2.
  • Page 66 User Manual of Network Fisheye Camera  For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

  • Page 67: Configuring Email Settings

    User Manual of Network Fisheye Camera Note: The anonymous access function must be supported by the FTP server. 6. Click Save to save the settings. 6.2.3 Configuring Email Settings Purpose: The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.
  • Page 68 User Manual of Network Fisheye Camera SSL or TLS and enable STARTTLS, emails will be sent after encrypted by STARTTLS, and the SMTP port should be set as 25. Note: If you want to use STARTTLS, make sure that the protocol is supported by your e-mail server.

  • Page 69: Platform Access

    User Manual of Network Fisheye Camera Email Settings Figure 6-9 4. Click Save to save the settings. 6.2.4 Platform Access Purpose: Platform access provides you an option to manage the devices via platform. Steps: 1. Enter the Platform Access settings interface: Configuration > Network > Advanced Settings >...

  • Page 70: Https Settings

    User Manual of Network Fisheye Camera If you select Platform Access Mode as Hik-Connect, 1) Click and read "Terms of Service" and "Privacy Policy" in pop-up window. 2) Create a verification code or change the verification code for the camera. Note: •...
  • Page 71 User Manual of Network Fisheye Camera HTTPS Configuration Interface Figure 6-10 4. Create the self-signed certificate or authorized certificate. Figure 6-11 Create Self-signed Certificate  Create the self-signed certificate (1) Select Create Self-signed Certificate as the Installation Method. (2) Click Create button to enter the creation interface. (3) Enter the country, host name/IP, validity and other information.
  • Page 72 User Manual of Network Fisheye Camera a) Select Signed certificate is available, Start the installation directly. Click Browse and Install to import the certificate to the device. Figure 6-12 Import the Certificate (1) b) Select Create the certificate request first and continue the installation.

  • Page 73: Configuring Qos Settings

    User Manual of Network Fisheye Camera Note: The exported certificate should be saved in the certificate folder of your client software before adding the device to your PC client. 7. Click the Save button to save the settings. 6.2.6 Configuring QoS Settings Purpose: QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

  • Page 74: Configuring 802.1X Settings

    User Manual of Network Fisheye Camera 6.2.7 Configuring 802.1X Settings Purpose: The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X. Before you start: The authentication server must be configured.

  • Page 75: Integration Protocol

    User Manual of Network Fisheye Camera 2. Check the Enable IEEE 802.1X checkbox to enable the feature. 3. Configure the 802.1X settings, including Protocol, EAPOL version, User Name, Password and Confirm. Note: The EAPOL version must be identical with that of the router or the switch. 4.

  • Page 76: Configuring Http Listening

    User Manual of Network Fisheye Camera 6.2.9 Configuring HTTP Listening Purpose: The camera can send alarm information to the destination IP or host name via HTTP protocol. If the network is disconnected, the data can be uploaded to the destination IP or host name after the network connection is normal.

  • Page 77: Chapter 7 Video/Audio Settings

    User Manual of Network Fisheye Camera Chapter 7 Video/Audio Settings Purpose: Follow the instructions below to configure the video setting, audio settings, ROI, Display info. on Stream, etc. 7.1 Configuring Video Settings For certain camera models, you can configure parameters for available video streams, for example, the main stream, the sub-stream, etc.
  • Page 78 User Manual of Network Fisheye Camera Maintenance > System Service> Software to enable the function is required. • The main stream is usually for recording and live view with good bandwidth, and the sub-stream can be used for live view when the bandwidth is limited. 3.
  • Page 79 User Manual of Network Fisheye Camera Note: Selectable video encoding types may vary according to different camera modes. H.264+ and H.265+: • H.264+: If you set the main stream as the stream type, and H.264 as the video encoding, you can see H.264+ available. H.264+ is an improved compression coding technology based on H.264.

  • Page 80: Configuring Audio Settings

    User Manual of Network Fisheye Camera Max. Average Bitrate: When you set a maximum bitrate, its corresponding recommended maximum average bitrate will be shown in the Max. Average Bitrate box. You can also set the maximum average bitrate manually from 32 Kbps to the value of the set maximum bitrate.

  • Page 81: Configuring Roi Encoding

    User Manual of Network Fisheye Camera Audio Settings Figure 7-2 2. Configure the following settings. Note: Audio settings vary according to different camera models. Audio Encoding: G.722.1, G.711 ulaw, G.711alaw, G.726, MP2L2, PCM and MP3 are selectable. For MP2L2, the Sampling Rate and Audio Stream Bitrate are configurable.
  • Page 82 User Manual of Network Fisheye Camera Region of Interest Settings Figure 7-3 Steps: 1. Enter the ROI settings interface: Configuration > Video/Audio > ROI. 2. Select the Stream Type for ROI encoding. 3. Check the checkbox of Enable under Fixed Region item. 4.

  • Page 83: Display Info. On Stream

    User Manual of Network Fisheye Camera (4) Select the ROI level. (5) Enter a region name for the chosen region. (6) Click Save the save the settings of ROI settings for chosen fixed region. (7) Repeat steps (1) to (6) to setup other fixed regions. 7.4 Display Info.

  • Page 84: Chapter 8 Configuring Image Parameters

    User Manual of Network Fisheye Camera Chapter 8 Configuring Image Parameters 8.1 Configuring Display Settings Purpose: You can set the image quality of the camera, including brightness, contrast, saturation, sharpness, etc. Steps: 1. Enter the Display Settings interface: Configuration > Image> Display Settings 2.
  • Page 85 User Manual of Network Fisheye Camera Contrast describes the contrast of the image, which ranges from 1 to 100, and the default value is 50. Saturation describes the colorfulness of the image color, which ranges from 1 to 100, and the default value is 50. Sharpness describes the edge contrast of the image, which ranges from 1 to 100, and the default value is 50.
  • Page 86 User Manual of Network Fisheye Camera Smart Supplement Light: Smart Supplement Light function gives user an option to adjust the power of the IR LED, thus avoiding image over-exposure. When the light is turned on, and Auto and Manual are selectable for IR mode. Select AUTO, and the IR LED changes according to the actual luminance.
  • Page 87 User Manual of Network Fisheye Camera Video Standard: 50 Hz and 60 Hz are selectable. Choose according to the different video standards. Normally, 50 Hz is for PAL standard and 60 Hz for NTSC standard. Note: The display parameters vary according to the different camera model. Please refer to the actual interface for details.

  • Page 88: Configuring Osd Settings

    User Manual of Network Fisheye Camera 8.2 Configuring OSD Settings Purpose: OSD (On-screen Display) refers to the camera name, time/date format, display mode, and OSD size displayed on the live view. Steps: 1. Enter the OSD Settings interface: Configuration > Image > OSD Settings OSD Settings Figure 8-3 2.

  • Page 89: Configuring Privacy Mask

    User Manual of Network Fisheye Camera • Up to 8 texts are configurable. • Text overlay is only supported when the live view stream is decoded by hardware and display mode is Fisheye View. 7. Adjust the position and alignment of text frames. Left align, right align and custom are selectable.

  • Page 90: Picture Overlay

    User Manual of Network Fisheye Camera Figure 8-4 Privacy Mask Settings 2. Select a camera channel to configure. 3. Check the checkbox of Enable Privacy Mask to enable this function. 4. Click the Draw Area button to start drawing. 5. Click-and-drag the mouse in the live video window to draw the mask area. 6.
  • Page 91 User Manual of Network Fisheye Camera Overlay. Picture Overlay Figure 8-5 2. Click Browse to select a picture. 3. Click Upload to upload it. 4. Check Enable Picture Overlay checkbox to enable the function. 5. Drag the red rectangle to adjust the position. 6.

  • Page 92: Chapter 9 Configuring Event Settings

    User Manual of Network Fisheye Camera Chapter 9 Configuring Event Settings This section explains how to configure the network camera to respond to alarm events, including motion detection, video tampering, alarm input, alarm output, exception, exception detection, intrusion detection, and line crossing detection, etc. These events can trigger the linkage methods, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc.
  • Page 93 User Manual of Network Fisheye Camera Motion Detection Settings Figure 9-1 2. Check the checkbox of Enable Motion Detection. 3. (Optional) Check the checkbox of Enable Dynamic Analysis for Motion if you want to mark the detected objects with green rectangles on the live view window.
  • Page 94 User Manual of Network Fisheye Camera 6. (Optional) Move the slider to set the sensitivity of the detection. Task 2: Set the Arming Schedule for Motion Detection Steps: 1. Click Arming Schedule to edit the arming schedule. Figure 9-2 Arming Schedule Setting 2.
  • Page 95 User Manual of Network Fisheye Camera Figure 9-3 Linkage Method Settings  Audible Warning Trigger the audible warning locally. And it only supported by the device that has the audio output.  Notify Surveillance Center: Send an exception or alarm signal to remote management software when an event occurs.
  • Page 96 User Manual of Network Fisheye Camera  Smart Tracking: It can make the speed dome to track target manually by clicking the target on the live view of fisheye camera. Note: In order to make smart tracking take effect, you need to have a speed dome which has auto tracking function installed near your fisheye camera, and you have to configure relevant settings on 4200 Client Software.
  • Page 97 User Manual of Network Fisheye Camera supported area number varies according to different camera models. (2) Select OFF for Switch Day and Night Settings. (3) Select the area by clicking the area No.. (4) Slide the cursor to adjust the sensitivity and proportion of object in the area for the selected area.

  • Page 98: Configuring Video Tampering Alarm

    User Manual of Network Fisheye Camera (2) Select Scheduled-Switch for Switch Day and Night Settings. (3) Select the start time and end time for the switching timing. (4) Select the area by clicking the area No.. (5) Slide the cursor to adjust the sensitivity and proportion of object in the area for the selected area in the daytime.

  • Page 99: Configuring Alarm Input

    User Manual of Network Fisheye Camera Video Tampering Detection Settings Figure 9-5 3. Draw the detection area as in the normal configuration mode. 4. Move the slider to set the sensitivity. 5. Click Arming Schedule to set arming schedule as that in Task 2 Set the Arming Schedule for Motion Detection in Section 5.6.1.

  • Page 100: Configuring Alarm Output

    User Manual of Network Fisheye Camera Figure 9-6 Alarm Input Settings 2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). Edit the alarm name (optional). 3. Check the checkbox of Enable Alarm Input Handling to enable the function. 4.
  • Page 101 User Manual of Network Fisheye Camera 1. Enter the Alarm Output Settings interface: Configuration > Events > Basic Event > Alarm Output 2. Select one alarm output channel in the Alarm Output drop-down list. 3. (Optional) Input the alarm output name in the text field. 4.

  • Page 102: Handling Exception

    User Manual of Network Fisheye Camera Note: Alarm output settings vary according to the camera model. 9.5 Handling Exception The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras. Steps: 1.
  • Page 103 User Manual of Network Fisheye Camera Figure 9-9 Audio Exception Detection 2. Check the checkbox of Audio Loss Exception to enable the audio loss detection function. 3. Check the checkbox of Sudden Increase of Sound Intensity Detection to detect the sound steep rise in the surveillance scene. You can set the detection sensitivity and threshold for sound steep rise.

  • Page 104: Configuring Intrusion Detection

    User Manual of Network Fisheye Camera including Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Channel for recording and Trigger Alarm Output. 7. Click Save to save the settings. 9.7 Configuring Intrusion Detection Purpose: Intrusion detection function detects people, vehicle or other objects which enter and loiter in a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.
  • Page 105 User Manual of Network Fisheye Camera 2. Check the checkbox of Enable to enable the function. 3. Select a region number from the drop-down list of Region. Region: A pre-defined vertexes area on the live view image. Targets, such as, people, vehicle or other objects, who enter and loiter in the region will be detected and trigger the set alarm.

  • Page 106: Configuring Line Crossing Detection

    User Manual of Network Fisheye Camera 10. Repeat the above steps to configure other regions. Up to 4 regions can be set. You can click the Clear button to clear all pre-defined regions. 11. Click Arming Schedule to set the arming schedule. 12.
  • Page 107 User Manual of Network Fisheye Camera Line Crossing Detection Figure 9-11 2. Check the checkbox of Enable to enable the function. 3. Select the line from the drop-down list. 4. Click Area Settings tab and click Draw Area button, and a virtual line is displayed on the live video.

  • Page 108: Configuring Region Entrance Detection

    User Manual of Network Fisheye Camera as A<->B, A ->B, and B->A. A<->B: The object going across the plane with both directions can be detected and alarms are triggered. A->B: Only the object crossing the configured line from the A side to the B side can be detected.
  • Page 109 User Manual of Network Fisheye Camera enter a pre-defined virtual region from the outside place, and some certain actions can be taken when the alarm is triggered. Steps: 1. Enter the Region Entrance Detection settings interface, Configuration > Event > Smart Event >...

  • Page 110: Configuring Region Exiting Detection

    User Manual of Network Fisheye Camera Min. Size: The minimum size of a valid target. Targets with smaller sizes would not trigger detection. 7. Click Stop Drawing when finish drawing. 8. Drag the slider to set the sensitivity value. Sensitivity: Range [1-100]. Sensitivity stands for the percentage of the body part of an acceptable target that enters the pre-defined region.
  • Page 111 User Manual of Network Fisheye Camera Region Exiting Detection Figure 9-13 2. Check Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4. Click Area Settings and click Draw Area button to start the area drawing. 5.

  • Page 112: Configuring Unattended Baggage Detection

    User Manual of Network Fisheye Camera of an acceptable target that exits the pre-defined region. Sensitivity = 100 – S *100 stands for the target body part that exits the pre-defined region. S stands for the complete target body. Example: if you set the value as 60, the action can be counted as a region exiting action only when 40 percent body part exits the region.
  • Page 113 User Manual of Network Fisheye Camera Unattended Baggage Detection Figure 9-14 2. Check Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4. Click Area Settings and click Draw Area to start the area drawing. 5.

  • Page 114: Configuring Object Removal Detection

    User Manual of Network Fisheye Camera Threshold: Range [5-100s], the threshold for the time of the objects left over in the region. If you set the value as 10, alarm is triggered after the object is left and stay in the region for 10s. 9.
  • Page 115 User Manual of Network Fisheye Camera Object Removal Detection Figure 9-15 2. Check Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4. Click Area Settings and click Draw Area button to start the area drawing. 5.
  • Page 116 User Manual of Network Fisheye Camera Threshold: Range [5-100s], the threshold for the time of the objects removed from the region. If you set the value as 10, alarm is triggered after the object disappears from the region for 10s. 9.

  • Page 117: Chapter 10 Storage Settings

    User Manual of Network Fisheye Camera Chapter 10 Storage Settings 10.1 Configuring Recording Schedule Purpose: There are two kinds of recording for the cameras: manual recording and scheduled recording. For the manual recording, refer to Section 4.3 Recording and Capturing Pictures Manually.
  • Page 118 User Manual of Network Fisheye Camera Record Parameters Figure 10-2 Pre-record: The time you set to start recording before the scheduled time or the event. For example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the camera starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.
  • Page 119 User Manual of Network Fisheye Camera  Record Triggered by Motion Detection If you select Motion, the video will be recorded when the motion is detected. Besides configuring the recording schedule, you have to set the motion detection area and check the checkbox of Trigger Channel in the Linkage Method of Motion Detection Settings interface.
  • Page 120 User Manual of Network Fisheye Camera and check the checkbox of Trigger Channel in the Linkage Method of Line Crossing Detection Settings interface. For detailed information, please refer to Section 5.6.6 Configuring Line Crossing Detection.  Record Triggered by Intrusion Detection If you select Intrusion Detection, the video will be recorded when the intrusion event is detected.

  • Page 121: Configuring Capture Setting

    User Manual of Network Fisheye Camera 10.2 Configuring Capture Setting Purpose: You can configure the scheduled capture and event-triggered capture. The captured picture can be stored in the SD card (if supported) or in the network disk (For details, please refer to Section 6.3 Configuring Net HDD). The captured pictures can also be uploaded to a FTP server.

  • Page 122: Configuring Net Hdd

    User Manual of Network Fisheye Camera the events, including motion detection, alarm input, line crossing detection and intrusion detection. For details, please refer to Section 5.6. (4) Select the picture format, resolution, quality, capture interval, and capture number. 5. Set the time interval between two snapshots. 6.
  • Page 123 User Manual of Network Fisheye Camera Note: Please refer to the NAS User Manual for creating the file path.  For your privacy and to better protect your system against security risks, we strongly recommend the use of strong passwords for all functions and network devices.
  • Page 124 User Manual of Network Fisheye Camera When the initialization completed, the status of disk will become Normal. View Disk Status Figure 10-7 3. Define the quota for record and pictures. (1) Input the quota percentage for picture and for record. (2) Click Save and refresh the browser page to activate the settings.

  • Page 125: Chapter 11 People Counting

    User Manual of Network Fisheye Camera Chapter 11 People Counting To complete the configuration, you should:  Set up counting rule.  Set up data uploading.  Set up advanced parameters. 11.1 Rule Settings Rule setting is compulsory for proper functioning of the camera. 11.1.1 Rule Steps: 1.

  • Page 126: Arming Schedule

    User Manual of Network Fisheye Camera 11.1.2 Arming Schedule Steps: 1. Click Arming Schedule to edit the arming schedule. 2. Click on the time bar and drag the mouse to select the time period. Figure 11-1 Arming Schedule Note: Click on the selected time period, you can adjust the time period to the desired time by either moving the time bar or input the exact time period.

  • Page 127: Data Uploading Setting

    User Manual of Network Fisheye Camera Figure 11-2 Linkage Method  Notify Surveillance Center Send an exception or alarm signal to remote management software when an event occurs. 11.2 Data Uploading Setting Data uploading is about how and when the counting data can be sent to clients and users.
  • Page 128 User Manual of Network Fisheye Camera  Daily Reset Time You can set up a daily reset time. Or you can reset the counter manually by click Manual Reset.

  • Page 129: Chapter 12 Heat Map

    User Manual of Network Fisheye Camera Chapter 12 Heat Map Heat map is a graphical representation of data represented by colors. The heat map function of the camera usually be used to analyze the visit times and dwell time of customers in a configured area.
  • Page 130 User Manual of Network Fisheye Camera 11. Click Save to save the settings. Note: The heat map statistics will be calculated under Application tab. Go to Application to check the heat map statistics.

  • Page 131: Chapter 13 Intersection Analysis

    User Manual of Network Fisheye Camera Chapter 13 Intersection Analysis Purpose: Intersection Analysis is used to monitor the human flow in an intersection-like scene. Note: The function varies according to different camera models. Steps: 1. Enter the Intersection Analysis configuration interface: Configuration > Intersection Analysis.

  • Page 132: Chapter 14 Playback

    User Manual of Network Fisheye Camera Chapter 14 Playback Purpose: This section explains how to view the remotely recorded video files stored in the network disks or SD cards. Note: You can also search the records files and play it back in different playback modes via iVMS-4200 client software.
  • Page 133 User Manual of Network Fisheye Camera Figure 14-2 Search Video 3. Choose a display mode to play the video. Playback Display Mode Setting Figure 14-3 Note: For detailed description of each display mode, refer to Section 4.1 Live View Page. 4.
  • Page 134 User Manual of Network Fisheye Camera Button Operation Button Operation Start/Stop clipping video Pause files Stop Playback by frame Audio on and adjust Slow Forward volume/Mute Fast Forward Download Enable/Disable digital Stop all playback zoom Play with full screen Notes: ...

  • Page 135: Chapter 15 Picture

    User Manual of Network Fisheye Camera Chapter 15 Picture Click Picture to enter the picture searching interface. You can search, view, and download the pictures stored in the local storage or network storage. Notes:  Make sure HDD, NAS or memory card are properly configured before you process picture searching.

  • Page 136: Chapter 16 Application

    User Manual of Network Fisheye Camera Chapter 16 Application Click Application to enter the heat map statistics interface. You can search, view, and download the counting data stored in the local storage or network storage. 16.1 People Counting Statistics After you enable the people counting function, you can view and download the people counting data from application tab.

  • Page 137: Heat Map Statistics

    User Manual of Network Fisheye Camera 16.2 Heat Map Statistics Purpose: Heat map is a graphical representation of data represented by colors. The heat map function of the camera usually be used to analyze the visit times and dwell time of customers in a configured area.
  • Page 138 User Manual of Network Fisheye Camera Space Heat Map Figure 16-2 Time Heat Map: The heat value of the pre-defined area is calculated by hour, day, or month. You can click the Export button to export the data in an excel file. Time Heat Map Figure 16-3 Note:...

  • Page 139: Intersection Analysis Statistics

    User Manual of Network Fisheye Camera 16.3 Intersection Analysis Statistics After you enable the intersection analysis function, you can view and download the intersection analysis data from application tab. To get more intuitional results, you can display the data in different charts. Steps: 1.

  • Page 140: Appendix

    User Manual of Network Fisheye Camera Appendix Appendix 1 SADP Software Introduction  Description of SADP SADP (Search Active Devices Protocol) is a kind of user-friendly and installation-free online device search tool. It searches the active online devices within your subnet and displays the information of the devices.
  • Page 141 User Manual of Network Fisheye Camera  Search online devices manually You can also click Refresh button to refresh the online device list manually. The newly searched devices will be added to the list. You can click on each column heading to order the information; you can click to expand the device table and hide the network parameter panel on the right side, or click...

  • Page 142: Appendix 2 Port Mapping

    User Manual of Network Fisheye Camera Appendix 2 Port Mapping The following settings are for TP-LINK router (TL-WR641G). The settings vary depending on different models of routers. Steps: 1. Select the WAN Connection Type, as shown below: Figure A.2.1 Select the WAN Connection Type 2.
  • Page 143 User Manual of Network Fisheye Camera another camera as 81, 8001, 555, 8201 with IP 192.168.1.24. Refer to the steps as below: Steps: 1. As the settings mentioned above, map the port 80, 8000, 554 and 8200 for the network camera at 192.168.1.23 2.
  • Page 144 User Manual of Network Fisheye Camera...
