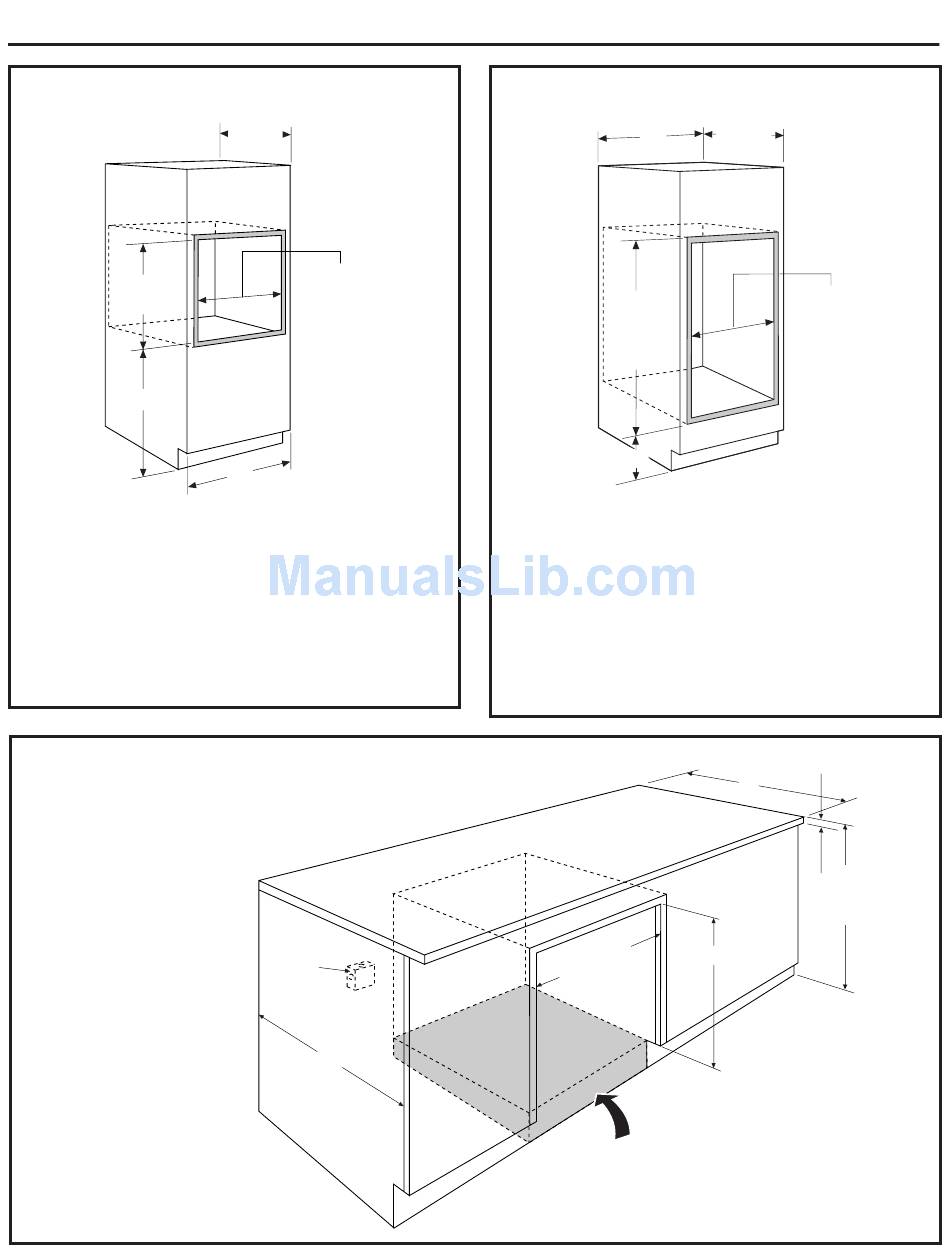

Framed Cabinet, Single oven

23"
Max.
34"
Order a 30" oven cabinet with the cutout sized to fit
the single oven.
• These ovens require 3/4" overlap on both sides.
Allow 1" Min. for top overlap and clearance to upper
doors. Allow 1/4" clearance at the bottom.
• For single ovens, 34" installation height from the
floor is recommended. 34" will bring the oven floor to
countertop height when opened.
Installation Below
A Countertop
The single oven may be
installed beneath a
countertop.
• The oven may be installed
below specific cooktop
models listed on the label
on top of the oven.
• Refer to cooktop installa-
tion instructions for
electrical requirements
and clearances.

Cabinetry

23-1/2"
28" Min.
28-3/8" Max.
30"
Oven
Junction
Box
23-1/2" Min.

Framed Cabinet, Double Oven

30"
47-5/8"
Min.
47-3/4"
Max.
12"
Order a 30" oven cabinet with the cutout sized to fit
the double oven.
• These ovens require 3/4" overlap on both sides.
Allow 1" Min. for top overlap and clearance to upper
doors. Allow 1/4" clearance at the bottom.
• Installing a double oven 12" from the floor will place
the base of the upper oven at countertop level. The
oven may be installed more than 12" above the floor,
depending on user preference.
28" Min.
28-3/8" Max.
Elevate the oven floor to desired height.
The support must be level, rigidly mounted
and capable of supporting 250 lbs.
4
23-1/2"
Inside
28" Min.
28-3/8" Max.
1-1/2" Cabinet Top
25"
36"
Countertop
Height
23" Max.
