D-Link DCS-6314 Product Highlights

Product Highlights
Rugged Construction
IP68 weatherproof housing and weathershield makes
the DCS-6314 ideal for the most demanding of
surveillance applications
Full HD Resolution with Wide Dynamic Range
A high-resolution megapixel sensor provides Full HD
1080p resolution while Wide Dynamic Range technology
ensures that you capture the details you need
Versatile Installation
Power over Ethernet support and a range of
mounting options allow installation in a wide variety
of indoor and outdoor locations and situations

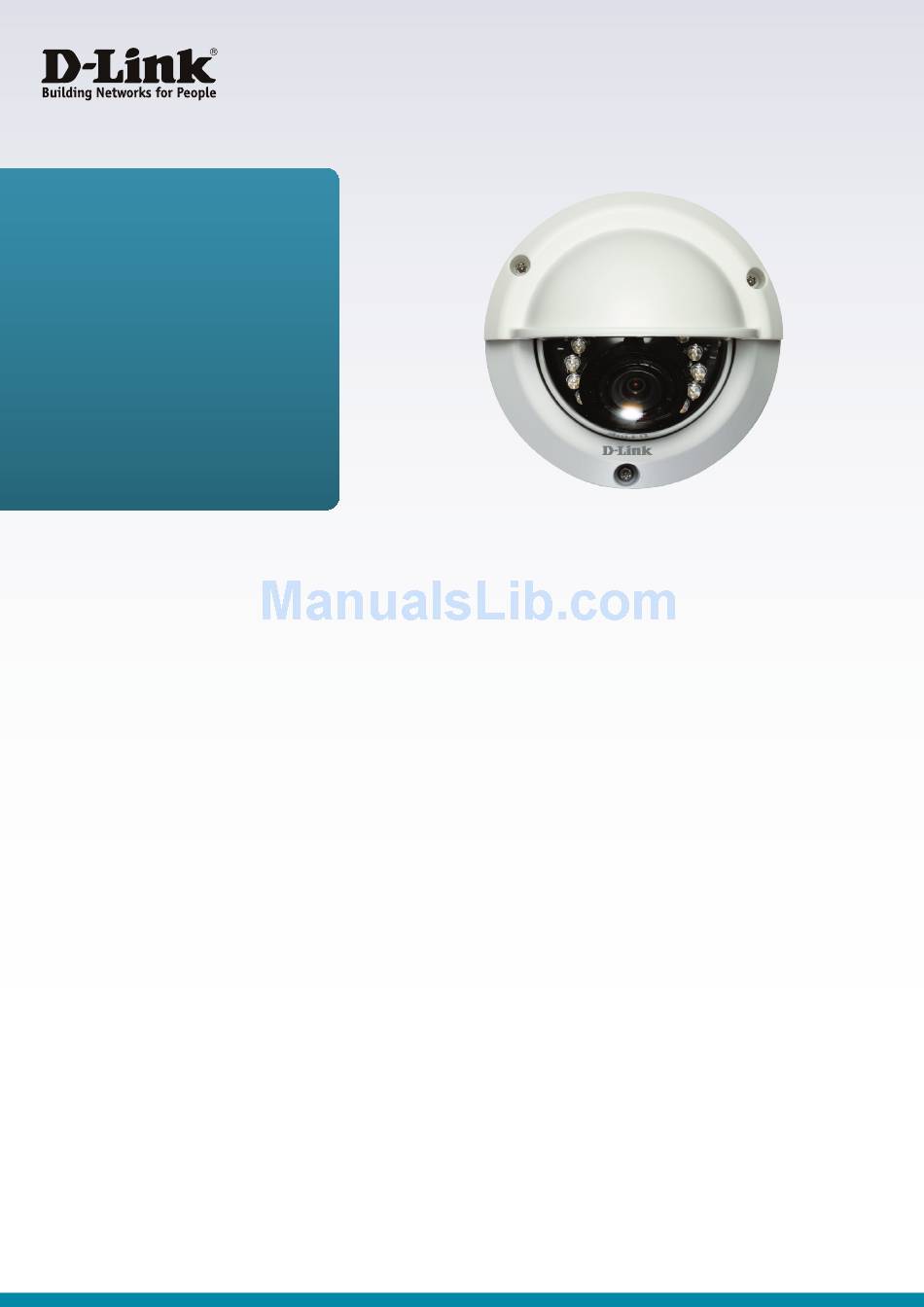

DCS-6314
Full HD Outdoor Fixed Dome Network Camera
Features
Exceptional Video Quality
• 1/2.8" 2 megapixel progressive CMOS sensor
• Full HD resolution of 1920 x1080
• Wide Dynamic Range image enhancement
• H.264, MPEG-4, MJPEG codec support for
streaming and recording
• Motion detection
• Privacy mask
Outdoor Placement
• Built-in IR LED illuminator with a 15 meter range
for use in dark areas
• Range of mounting options for flexible
placement
• Rugged IP68 weatherproof housing
• Weathershield to protect unit when mounted
outdoors
Flexibility
• Micro SD/SDHC Card slot for onboard storage
• 10/100 Fast Ethernet port with PoE ensures easy
integration into your network
• DI/DO socket for connection to external devices
• Audio in and out jacks can be connected
to a microphone and speaker for 2-way
communication
The D-Link DCS-6314 Full HD Outdoor Fixed Dome Network Camera is a high definition
professional surveillance and security solution suitable for small, medium, and large enterprises.
The camera uses a high-sensitivity megapixel progressive scan CMOS sensor with onboard
WDR image enhancement to deliver truly superior quality video in all conditions. The all-in-one
rugged design makes this camera extremely reliable and ideal for deployment in surveillance
applications without the need for accessories.
High-Quality Video
To maximize bandwidth efficiency and improve image quality, the DCS-6314 provides real-
time video compression using the H.264, MPEG-4, and MJPEG codecs, and supports three
separate profiles for simultaneous video streaming and recording. This versatility enables a
wide variety of security applications, such as monitoring public areas to detect incidents and
to coordinate responses, enforcing access control to restricted areas, deterring criminal activity,
or monitoring inventory.
Continuous Monitoring
The DCS-6314's WDR image enhancement gives you improved image quality in environments
with uneven or difficult lighting, so you can identify subjects that are backlit or in brightly
lit areas. In low-light situations, the IR cut filter automatically slides out of the way to use
all available light. The DCS-6314 also has built-in IR LED illuminators with a 15 meter range,
allowing the camera to keep watch even in complete darkness. These features work together to
give you a reliable surveillance camera capable of monitoring an area 24 hours a day.
