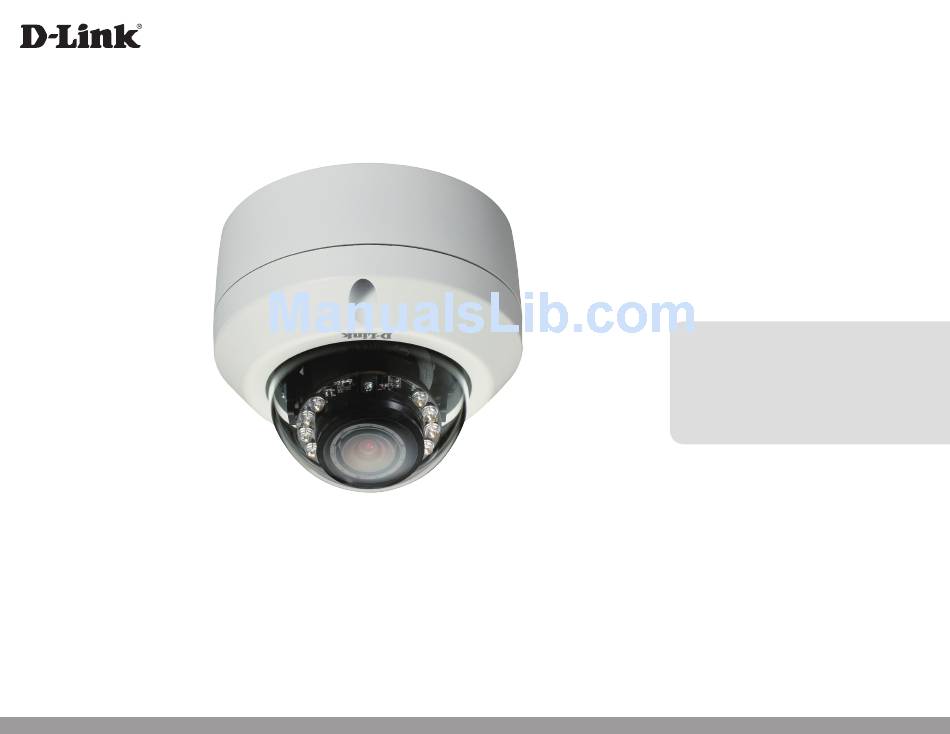

Version 1.0 | 06/27/2013

User Manual

Full HD Outdoor Fixed Dome Network Camera
DCS-6314

Advertisement

Table of Contents
loading

Related Manuals for D-Link DCS-6314

Summary of Contents for D-Link DCS-6314

  • Page 1: User Manual

    Version 1.0 | 06/27/2013 User Manual Full HD Outdoor Fixed Dome Network Camera DCS-6314...

  • Page 2: Manual Revisions

    Preface D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to notify any person or organization of such revisions or changes. Information in this document may become obsolete as our services and websites develop and change.

  • Page 3: Table Of Contents

    Connection Using Power over Ethernet .....25 HTTPS ..................63 Software Installation ............26 Access List................64 D-ViewCam Setup Wizard ..........29 Maintenance ................65 Admin ..................65 Configuration ..............31 System ..................66 Using the Configuration Interface ........31 Firmware Upgrade ..............67 Live Video ..................32 D-Link DCS-6314 User Manual...
  • Page 4 Status ....................68 Device Info ................68 Logs ..................69 Help ..................70 DI/DO Specifications ............71 Technical Specifications ..........72 Contacting Technical Support ........75 Warranty ................76 Registration ..............82 D-Link DCS-6314 User Manual...

  • Page 5: Product Overview

    Section 1: Product Overview Product Overview Package Contents CAT5 Ethernet cable DCS-6314 Full HD Outdoor Fixed Dome Network Camera CD-ROM with User Manual and software Screws and wall socket Quick Installation Guide Weather Shield Power adapter 4-Pin Terminal Block Security Wrench If any of the above items are missing, please contact your reseller.

  • Page 6: Introduction

    The DCS-6314 has an IP68 certified weatherproof housing, designed for both indoor and outdoor use. The built-in removable IR-cut filter and IR LEDs give the DCS-6314 the capability to view up to 49 feet at night. The camera supports PoE (Power over Ethernet), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

  • Page 7: Features

    The DCS-6314 uses an IP68 weatherproof housing. So you can rest assured that even under the toughest conditions, this camera will continue to provide round-the-clock surveillance. PoE (Power over Ethernet) for Flexible Installation The DCS-6314 can get all the power it needs from a PoE switch or PoE injector for a simple and streamlined installation. D-Link DCS-6314 User Manual...

  • Page 8: Hardware Overview

    Light Sensor and infrared accordingly. Camera Lens Vari-focal lens records video of the surrounding area. IR LEDs Infrared LEDs illuminate the camera's field of view at night. Power/Status LED Status LED indicates the camera's current status. D-Link DCS-6314 User Manual...

  • Page 9: Top

    IR LEDs. For details on how to adjust the camera angle, refer to"Orienting the Camera" on page For details on how to turn the IR LEDs on/off, see "ICR and IR" on page D-Link DCS-6314 User Manual...

  • Page 10: Cable Harness

    Power connector for the provided 12V DC power adapter. Connects to an RJ-45 Ethernet port. Can be used with PoE to provide power Ethernet Jack to the camera. Reset Button Press and hold the recessed button for 10 seconds to reset the camera. D-Link DCS-6314 User Manual...

  • Page 11: Internal

    Section 1: Product Overview Internal microSD Card Slot Insert a microSD card for storing recorded images and video. Note: For step-by-step instructions on how to insert a microSD card, refer to "Installing a microSD Card" on the next page. D-Link DCS-6314 User Manual...

  • Page 12: Assembly And Installation

    Remove the adjustable top part of the camera housing after removing the three retaining screws. Step 3 Remove the base of the camera by holding the camera firmly and rotating the base in a counter clockwise direction. D-Link DCS-6314 User Manual...
  • Page 13 Step 5 Replace the base of the camera by holding the camera firmly and rotating the base in a clockwise direction ensuring a tight fit. Note: Make sure the weatherproof seals are secured firmly in place. D-Link DCS-6314 User Manual...

  • Page 14: Deploying The Camera

    Step 2 Use a 6mm drill bit to make required holes approximately 30mm deep. Step 3 Remove the Alignment Sticker. Step 4 Insert wall anchors and attach the mounting plate using the screws provided. D-Link DCS-6314 User Manual...
  • Page 15 Section 2: Assembly and Installation Step 5 Secure the camera to the mounting plate using the screw provided. Make sure the cables are routed through the cable channel or via the mounting plate cut-out. D-Link DCS-6314 User Manual...

  • Page 16: Mounting The Camera

    Section 2: Assembly and Installation Mounting the Camera The DCS-6314 is suitable for mounting to a wall using the camera shoe and wire-in bracket provided. Step 1 Remove the top part of the camera housing, using the included tool to unscrew the three retaining screws.
  • Page 17 Slide the lower half of the camera housing onto the mounting plate and re-secure it. Make sure that the cable sheath extends out of the base in such a way that the cable is not kinked or twisted. D-Link DCS-6314 User Manual...
  • Page 18 If needed, the included weather shield can now be attached to the camera. Note: If you are installing the DCS-6314 in a location where it will be exposed to harsh weather, it is recommended that you install the weather shield.

  • Page 19: Attaching The Camera To The Pendant Mount

    If you need more details, "Deploying the Camera" on page Pendant Bracket Step 4 Attach the bracket cap by rotating it counterclockwise, in order to tighten it onto the pendant bracket. Bracket Cap D-Link DCS-6314 User Manual...
  • Page 20 Reattach the top part of the camera housing and secure it by tightening the three retaining screws. Refer to "Mounting the Camera" on page 16 for more details, including how to attach the weather shield to the camera. D-Link DCS-6314 User Manual...

  • Page 21: Attaching The Camera To The Bent Mount

    If you need more details see "Deploying the Camera" on page Bent Bracket Step 4 Attach the bracket cap by rotating it counterclockwise, in order to tighten it onto the bent bracket. Bracket D-Link DCS-6314 User Manual...
  • Page 22 Reattach the top part of the camera housing, and secure it by tightening the three retaining screws. Refer to "Mounting the Camera" on page 16 for more details, including how to attach the weather shield to the camera. D-Link DCS-6314 User Manual...

  • Page 23: Orienting The Camera

    Section 2: Assembly and Installation Orienting the Camera The DCS-6314 can be adjusted to ensure an optimal viewing position when mounted to a wall by following the steps outlined. Step 1 Turn the lens module left and right until the desired position is achieved.

  • Page 24: Camera Installation Wizard

    Camera Installation Wizard General Connection Using 12 V DC Power Adapter Step 1 Connect the network camera to a switch with an Ethernet cable. Step 2 Connect the supplied power cable from the camera to a power outlet. D-Link DCS-6314 User Manual...

  • Page 25: Connection Using Power Over Ethernet

    Connection Using Power over Ethernet Step 1 If you are using a PoE switch, connect the IP camera to the switch with an Ethernet cable. This will enable transmission of both power and data over a single cable. D-Link DCS-6314 User Manual...

  • Page 26: Software Installation

    Select your camera from the list, then click Wizard. If you have multiple cameras, you can identify them by using the MAC ID that is printed on the label attached to the back of your camera. D-Link DCS-6314 User Manual...
  • Page 27 DHCP (Dynamic IP) if you want your router or DHCP server to automatically assign the camera its network settings. Note: Select DHCP if you are unsure of which settings to choose. Click Next to continue. D-Link DCS-6314 User Manual...
  • Page 28 Step 6 Confirm your camera login details and settings, and then click Restart. The LED on the front of the DCS-6314 will blink, then turn solid green once it successfully connects to your network. Step 7 Your DCS-6314 camera is now set up. Click Exit to exit the wizard.

  • Page 29: D-Viewcam Setup Wizard

    D-ViewCam Setup Wizard D-ViewCam is a comprehensive management tool for IP surveillance. D-ViewCam software allows the administrator to remotely manage multiple D-Link IP cameras. This software can be used to configure all the advanced settings for your cameras. Step 1 Insert the CD-ROM into the CD-ROM drive.
  • Page 30 Step 4 Remove any disks from drives and click Finish to complete the installation. Step 5 For more details about using the D-ViewCam software, refer to the D-ViewCam Manual on the included CD. D-Link DCS-6314 User Manual...

  • Page 31: Configuration

    After completing the Camera Installation Wizard, you are ready to use your camera. The camera’s built-in Web configuration utility is designed to allow you to easily access and configure your DCS-6314. Step 1 Click the Link button on the wizard. The Setup Wizard will automatically open your web browser to the IP address of your camera.

  • Page 32: Live Video

    (ROI). Language: You may select the language for the UI using this drop-down menu. Go To: If any presets have been defined, selecting a (Preset List) preset from this list will display it. D-Link DCS-6314 User Manual...
  • Page 33 Enables or disables the ability to listen using the built-in speakers. Listening Talk/Stop Talking Enables or disables the ability to record audio using the built-in microphone. Start/Stop Digital Enables or disables the ability to use the built in digital in/out port. Output D-Link DCS-6314 User Manual...

  • Page 34: Setup

    "Network Setup" on page To configure your Network Camera’s motion detection settings, click Motion Detection Setup Wizard. If you want to enter your settings manually, click Manual Motion Detection Setup and skip to"Motion Detection" on page 50. D-Link DCS-6314 User Manual...

  • Page 35: Internet Connection Setup Wizard

    Section 3: Configuration Internet Connection Setup Wizard This Internet Connection Setup Wizard will guide you through a step- by-step process to configure your new D-Link Camera and connect the camera to the internet. Click Next to continue. Select DHCP if your ISP (Internet Service Provider) has not provided you with connection settings, or if you are not sure about your settings.
  • Page 36 If you have a Dynamic DNS account and would like the camera to update your IP address automatically, select Enable DDNS and enter your host information. Click Next to continue. Enter an IP Camera Name and click Next to continue. D-Link DCS-6314 User Manual...
  • Page 37 Select the correct Time Zone to ensure that all events will be triggered as scheduled. Click Next to continue. Confirm the IP camera settings are correct and click Apply to save them. The settings will be saved to the DCS-6314 and the camera will restart. D-Link DCS-6314 User Manual...

  • Page 38: Motion Detection Setup Wizard

    Click on Always to make sure your camera always records whenever motion is detected. Otherwise, click on From, and select the motion detection time schedule from the drop-down list. Also indicate the day(s) you want motion detection enabled by checking the corresponding boxes. D-Link DCS-6314 User Manual...
  • Page 39 FTP account. Click Next to continue. Step 4 You have completed the Motion Detection Wizard. Verify your settings and click Apply to save them. Wait a few moments for the camera to save your settings and restart. D-Link DCS-6314 User Manual...

  • Page 40: Network Setup

    Enabling this setting allows your camera to be Presentation: configured as a UPnP device on your network. Enable Enabling this setting allows the camera to add port UPnP Port forwarding entries into the router automatically on Forwarding: a UPnP capable network. D-Link DCS-6314 User Manual...
  • Page 41 This will ensure a consistent Quality of Service during busy periods. If the Network Camera is connected to a router that itself implements QoS, the router's settings will override the QoS settings of the camera. D-Link DCS-6314 User Manual...
  • Page 42 IP address. Then you can specify an Optional IP address, specify an Optional default router and an Optional primary DNS. Enable The DCS-6314 allows you to multicast each of the Multicast for available streams via Multicast group address, stream: and specify the TTL (Time to Live) value for each stream.

  • Page 43: Dynamic Dns

    Enter the Password used to connect to your DDNS Password: server account and Verify Password. Timeout: Enter the DNS timeout values you wish to use. Status: Indicates the connection status, which is automatically determined by the system. Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 44: Image Setup

    Select the frequency used by your power lines to avoid interference or distortion. White Balance: Use the drop-down menu to change White Balance settings to help balance colors for different environments. You can choose from Auto, Outdoor, Indoor, Fluorescent, and Push Hold. D-Link DCS-6314 User Manual...
  • Page 45 Select None or specify a value from zero to 10 to specify how much WDR (Wide Dynamic Range) to apply to the image. Reset Default: Click this button to reset the image to factory default settings. D-Link DCS-6314 User Manual...

  • Page 46: Audio And Video

    Maximum frame The number selected represents frames per second. rate: A higher frame rate provides smoother motion for videos, and requires more bandwidth. A lower frame rates will result in stuttering motion, and requires less bandwidth. D-Link DCS-6314 User Manual...
  • Page 47 Audio out off: Checking this box will mute outgoing audio. Audio out This setting controls the amount of gain applied volume level: to outgoing audio to increase its volume. Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 48: Preset

    Preset view. Clicking the Remove button will delete the currently selected Preset. Preset This section allows you to create a Preset Sequence, Sequence: which automatically moves the camera's view between a set of preset views. D-Link DCS-6314 User Manual...
  • Page 49 Clicking the Trash can icon removes the currently selected Preset from the sequence. Update: If you want to change the Dwell time for a Preset, select it from the list, enter a new dwell time, then click the Update button. D-Link DCS-6314 User Manual...

  • Page 50: Motion Detection

    • Select All: Draws a motion detection area over the entire screen. • Clear All: Clears any motion detection areas that have been drawn. • Restore: Restores the previously specified motion detection areas. Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 51: Time And Date

    Check the box to set the Time and Date manually. Time Manually: Enter Year, Month, Day, Hour, Minute, and Second. Copy Your This will synchronize the Date and Time information Computer's Time from your PC. Settings: Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 52: Event Setup

    Event Setup Typically, when motion is detected, the DCS-6314 sends images to a FTP server or sends an e-mail notification. As shown in the illustration below, an event can be triggered by various conditions, such as motion detection or system reboot. When an event is triggered, a specified action will be performed.
  • Page 53 2. To remove a selected item from the drop-down menu, click Delete. 3. Click on the item from the drop-down menu to open a window for modifying the item. The pages that follow explain how to Add a Server, Add Media, and Add an Event. D-Link DCS-6314 User Manual...

  • Page 54: Add Server

    Enter the configuration for the target FTP server account. Network Specify a Network Storage Location. Only one Storage: network storage device is supported. SD Card: Select this option to use the camera's onboard SD card storage. Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 55: Add Media

    You can set up to 7 post-event images to be taken. File name The prefix name will be added on the file name. Prefix: SNAPSHOTS20080104_100341 Date and time suffix File name prefix The format is: YYYYMMDD_HHMMSS D-Link DCS-6314 User Manual...
  • Page 56 The prefix name will be added on the file name. Prefix: System log: Select this option to set the Media Type to System Log. This saves the Event to the camera's system log. However, no snapshots or video will be recorded. Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 57: Add Event

    Network Lost: Triggers an Event when a network connection is lost. Time: Select Always or select the Event Schedule. Trigger D/O: Check the box to trigger Digital Output for specified number of seconds. Click the Save Settings. D-Link DCS-6314 User Manual...

  • Page 58: Add Recording

    (folder) and then will delete the oldest file and create new file for cyclical recording. Size of each file If this is selected, file size will be based on the for recording: number of megabytes you specify. D-Link DCS-6314 User Manual...
  • Page 59 File Name The prefix name will be added onto the file name Prefix: of the recording file(s). Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 60: Sd Card

    If video files are stored on the SD card, click on the Recorded Video: link to the video file you would like to view. Format SD Card: Click to automatically Format the SD card and create Picture and Video folders. D-Link DCS-6314 User Manual...

  • Page 61: Advanced

    Open. N.O. stands for Normally Open. This means that the normal state of the circuit is open. Therefore events are triggered when the device status changes to Closed. Click Save Settings. D-Link DCS-6314 User Manual...

  • Page 62: Icr And Ir

    The IR light will turn on when the ICR sensor is on. Sync: The IR Light Control will turn on and off based on Schedule: the schedule that you select using the drop-down menus below. Click on Save Settings. D-Link DCS-6314 User Manual...

  • Page 63: Https

    Click to Create Certificate. Status: Displays the current status of the certificate. Click Save Settings. Note: The certificate cannot be removed while the HTTPS is still enabled. To remove the certificate, you must first uncheck Enable HTTPS secure connection. D-Link DCS-6314 User Manual...

  • Page 64: Access List

    Section 3: Configuration Access List Here you can set access permissions for users to view your DCS-6314. Allow List /Start The starting IP Address of the device(s), such as a IP address: computer, that have permission to access the video from the camera. Click Add to save.

  • Page 65: Maintenance

    OSD if it is enabled. Show Time: Check the box to enable the time-stamp display on the video screen. Click Save. Check the box to indicate whether to turn the camera LED On or Off. Click Save. D-Link DCS-6314 User Manual...

  • Page 66: System

    In the System section, you may backup, restore, and reboot your camera. If you Restore Factory Defaults, you can use the Camera Installation Wizard to reconfigure your DCS-6314. (Refer to page 26.) Click on Save Configuration to save your current...

  • Page 67: Firmware Upgrade

    Section 3: Configuration Firmware Upgrade The current firmware version for your DCS-6314 will be displayed on this screen, under Firmware Information. Visit the D-Link Support Website to check for the latest available firmware. It is recommended that you keep your IP camera firmware up-to-date to improve the performance of your IP camera. To upgrade the firmware for your DCS-6314, download and save the latest firmware version from the D-Link Support Page to your local hard drive and then upload.

  • Page 68: Status

    Section 3: Configuration Status Device Info This page displays detailed information about your DCS-6314 and your network connection. D-Link DCS-6314 User Manual...

  • Page 69: Logs

    Section 3: Configuration Logs This page displays the system log information for your DCS-6314. First Page: Click on First Page to go to the first page of the system logs. Previous 20: Click Previous 20, to view the previous 20 events that have occurred.

  • Page 70: Help

    Section 3: Configuration Help This page provides links to helpful information regarding camera operation. D-Link DCS-6314 User Manual...

  • Page 71: Di/Do Specifications

    Appendix A: DI/DO Specifications DI/DO Specifications D-Link DCS-6314 User Manual...

  • Page 72: Technical Specifications

    • DNS client • CoS • DDNS client (D-Link) • Multicast • SMTP client • ONVIF compliant • FTP client Security • Administrator and user group protection • HTTP and RTSP digest encryption • Password authentication D-Link DCS-6314 User Manual...
  • Page 73 • Operating: -30 to 50 °C (-22 to 122 °F) • Storage: -20° to 70° C (-4° to 158° F) • Operating: 20% to 80% non-condensing • Storage: 5% to 95% non-condensing Humidity • CE • FCC Certifications • CE LVD • C-Tick D-Link DCS-6314 User Manual...
  • Page 74 Full HD Outdoor Fixed Dome Network Camera Pendant Mount DCS-34-2 201 x 150 mm (7.9 x 5.9 inches), 665 grams (1.45 lbs) Optional Accessories Bent Arm Mount DCS-34-3 253 x 150 mm (9.96 x 5.9 inches), 770 grams (1.7 lbs) D-Link DCS-6314 User Manual...

  • Page 75: Contacting Technical Support

    • Hardware Revision (located on the label on the bottom of the camera (e.g. rev A1)) • Serial Number (s/n number located on the label on the bottom of the camera). You can find software updates and user documentation on the D-Link website as well as frequently asked questions and answers to technical issues.

  • Page 76: Warranty

    Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects to the defective Hardware.
  • Page 77 D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially conforms to D-Link’s...
  • Page 78 • The customer must submit with the product as part of the claim a written description of the Hardware defect or Software nonconformance in sufficient detail to allow D-Link to confirm the same, along with proof of purchase of the product (such as a copy of the dated purchase invoice for the product) if the product is not registered.
  • Page 79 The availability of some specific channels and/or operational frequency bands are country dependent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. D-Link DCS-6314 User Manual...
  • Page 80 Purolator Canada or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an address in Canada, otherwise we will ship the product to you freight collect. Expedited shipping is available upon request and provided shipping charges are prepaid by the customer.
  • Page 81 Appendix D: Warranty For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local D-Link office. Industry Canada Statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 82: Registration

    Appendix E: Registration Registration Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty rights. Version 1.0 June 27, 2013 D-Link DCS-6314 User Manual...
