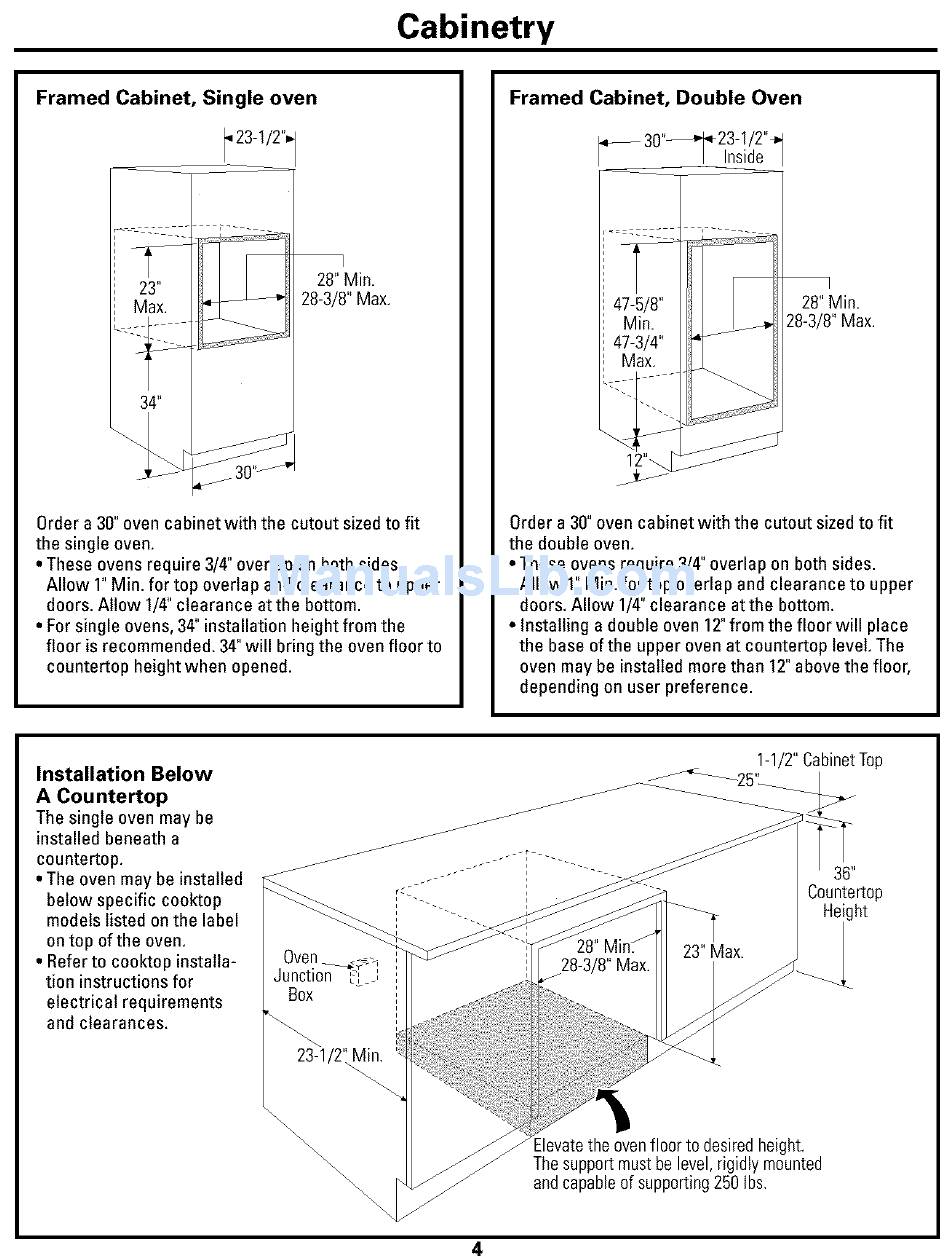

Cabinetry
Framed Cabinet, Single oven
I23-1/2" 1
I
28" Min.
28-3/8" Max.
Order a 30" oven cabinet with the cutout sized to fit
the single oven.
• These ovens require 3/4" overlap on both sides.
Allow 1" Min. for top overlap and clearance to upper
doors. Allow 1/4" clearance atthe bottom.
• For single ovens, 34" installation height from the
floor is recommended. 34" will bring the oven floor to
countertop height when opened.
Framed Cabinet, Double Oven
_- 30"_23-1/2%'
/ Inside
47-5/8"
Min.
47-3/4"
Max.
I
28"Min.
28-3/8"Max.
Order a 30" oven cabinet with the cutout sized to fit
the double oven.
• These ovens require 3/4" overlap on both sides.
Allow 1" Min. for top overlap and clearance to upper
doors. Allow 1/4" clearance atthe bottom.
• Installing a double oven 12"from the floor will place
the base of the upper oven at countertop level. The
oven may be installed more than 12"above the floor,
depending on user preference.
Installation Below
A Countertop
The single oven may be
installed beneath a
countertop.
• The oven may be installed
below specific cooktop
models listed on the label
on top of the oven.
• Refer to cooktop installa-
tion instructions for
electrical requirements
and clearances.
23-1/2'_
\\\\\ \
\\\\\\\\
\
1-1/2" Cabinet Top
_25'_
23"Max.
38"
Countertop
Height
J
levate the oven floor to desired height.
The support must be level, rigidly mounted
and capable of supporting 250 Ibs.
