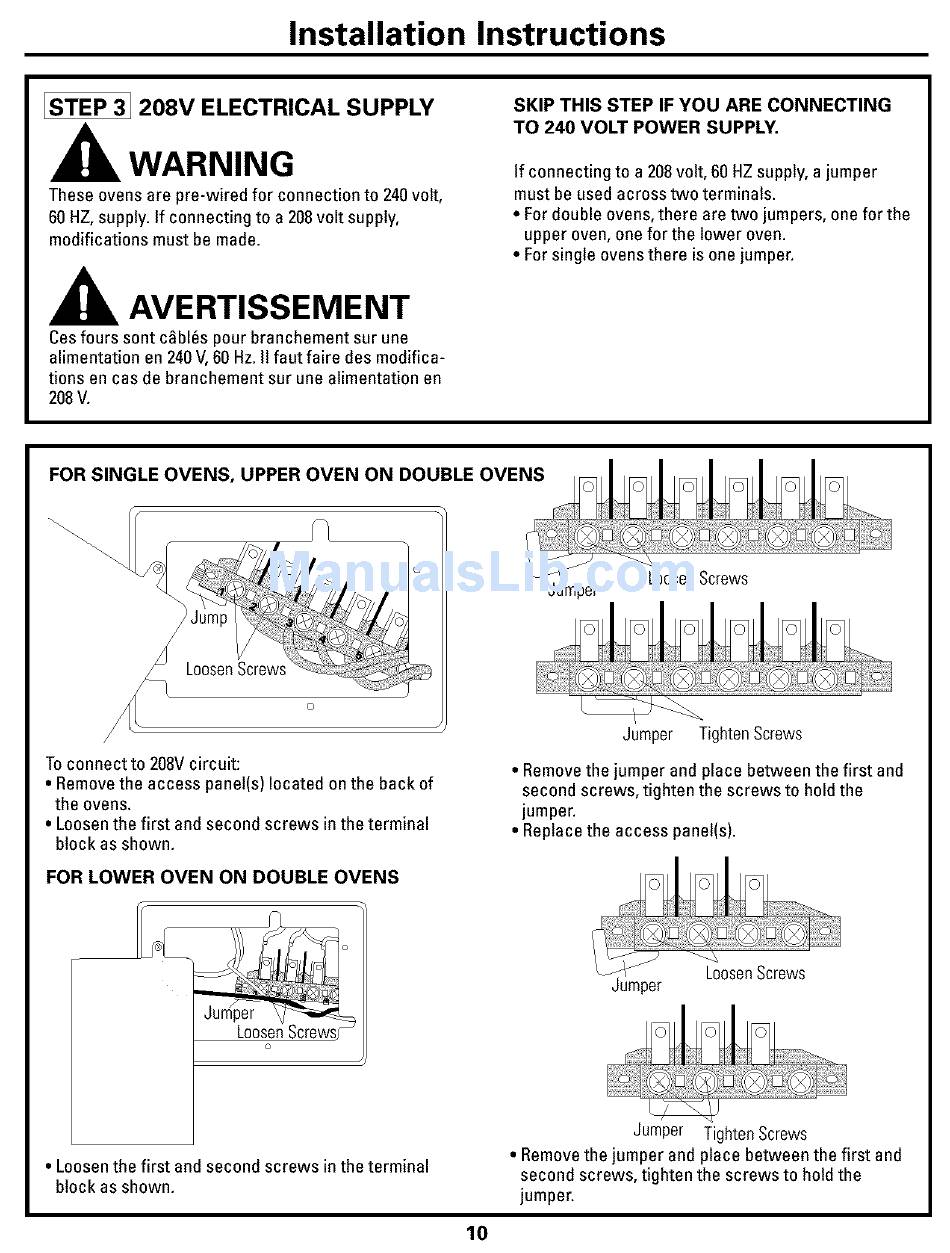

Installation Instructions
[STEP 208V ELECTRICAL SUPPLY
WARNING
These ovens are pre-wired for connection to 240 volt,
60 HZ, supply. If connecting to a 208 volt supply,
modifications must be made.
AVERTISSEMENT
Ces fours sont c_bl_s pour branchement sur une
alimentation en 240 V, 60 Hz. It faut faire des modifica-
tions en cas de branchement sur une alimentation en
208 V.
SKIP THIS STEP IF YOU ARE CONNECTING
TO 240 VOLT POWER SUPPLY.
If connecting to a 208 volt, 60 HZ supply, a jumper
must be used across two terminals.
• For double ovens, there are two jumpers, one for the
upper oven, one for the lower oven.
• For single ovens there is one jumper.
FOR SINGLE OVENS, UPPER OVEN ON DOUBLE OVENS
_L_m_ er _Loosen Screws
o
Jumper Tighten Screws
To connect to 208V circuit:
• Remove the access panel(s) located on the back of
the ovens.
• Loosen the first and second screws in the terminal
block as shown.
• Remove the jumper and place between the first and
second screws, tighten the screws to hold the
jumper.
• Replace the access panel(s).
FOR LOWER OVEN ON DOUBLE OVENS
Loosen Screws_
o
Jumper
• Loosen the first and second screws in the terminal
block as shown.
Jumper Tighten Screws
• Remove the jumper and place between the first and
second screws, tighten the screws to hold the
jumper.
10
