1.3.1 D
IPSWITCH
2 P
ROGRAMMING
Setting the ProBridge Gateway to Programming mode:
•
Set the device to programming mode by setting the dipswitch at SW4.
(SW4-7 RS232 SEL on, SW4-8 RS485 SEL off)
•
Ensure the RS232 (4310-0047B) cable is connected from the PC to one
of the port 1 connectors on the ProBridge Gateway.
•
Open HyperTerminal on a PC,
o
o
•
Cycle power on the ProBridge Gateway box and follow the instructions
in HyperTerminal.

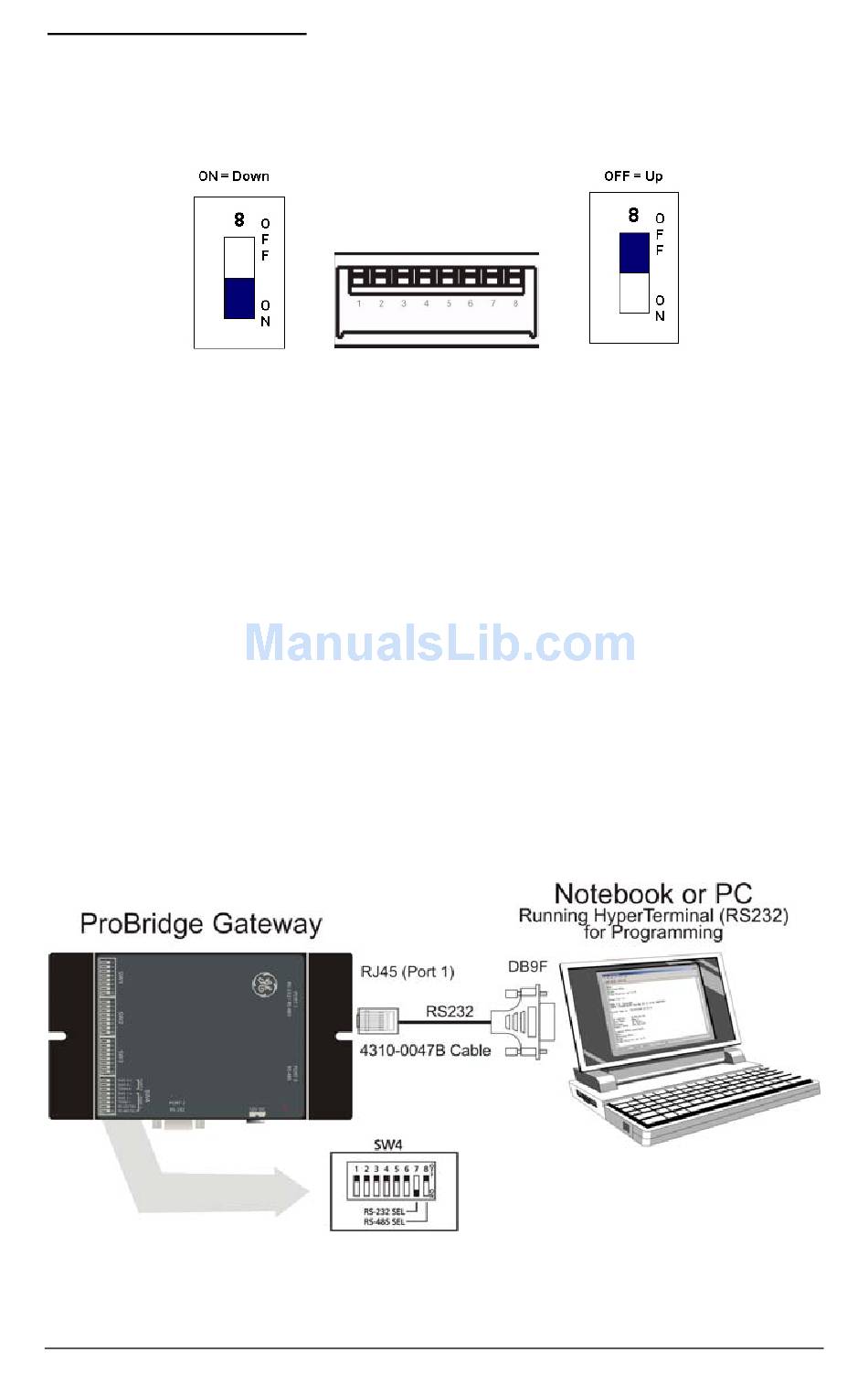

Connection Diagram for programming mode is shown below
8
P L
OSITION EGEND
M
ODE
Set the RS232 port to 9600, N, 8, 1 and flow control to None.
(File/Properties, "Connect to" tab, "Configure" button)
Set local echo on (File/Properties, "Settings" tab, "ASCII Setup"
button)
ProBridge Gateway
0150-0265C / April 2006
