Cisco Video Surveillance 6020 IP Camera
Product Overview
The Cisco
leading image quality and processing power. The camera is capable of full 1080p resolution at 30 frames per
second (fps) while optimizing network usage with either H.264 or MJPEG compression. Contact closures allow
integration with access control systems. With its open, standards-based design, the camera provides an ideal
platform for integration and operation as an independent device or as part of a Cisco Video Surveillance network.

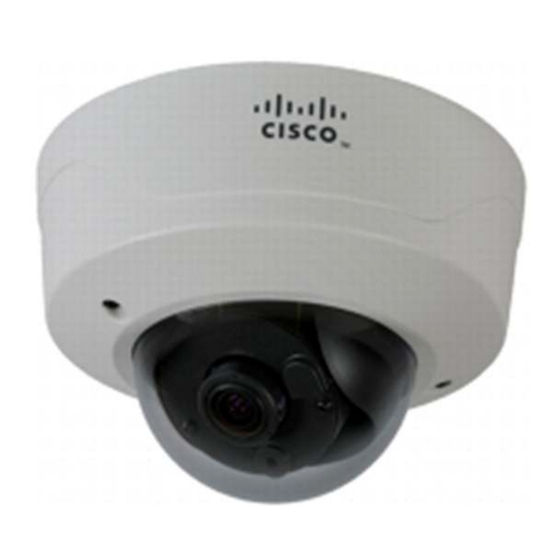

Figure 1.
The Cisco Video Surveillance 6020 IP Camera offers a variety of benefits, including:
True high-definition video: The camera streams crisp and clear 1080p (1920 x 1080) (2.1 megapixel)
●
video at 30 fps while maintaining low network bandwidth.
Motorized focus and zoom: The lens on the 6020 IP Camera's dome allows the focus and zoom to be
●
controlled remotely, greatly simplifying installations and field of view adjustments.
Dual streaming: The camera can stream H.264 and MJPEG video simultaneously. Each video stream can
●
be configured with individual resolution, quality, and frame-rate settings.
Day/night operation: The camera provides true day/night functionality and includes an infrared filter that
●
automatically switches to night mode in low-light scenes. This function can be set to manual, automatic, or
scheduled control.
Privacy regions: The camera supports up to four user-defined privacy regions. Any video within a privacy
●
region is masked in the video stream.
Local storage: Video data can automatically be recorded to a microSD card when the camera loses
●
network connectivity.
Bidirectional audio: The camera supports full-duplex audio and options for half-duplex operation.
●
© 2013 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information.
®
Video Surveillance 6020 IP Camera is a high-definition, full-functioned video endpoint with industry-
Cisco Video Surveillance 6020 IP Camera
Data Sheet
Page 1 of 8
Advertisement
Related Manuals for Cisco 6020
Summary of Contents for Cisco 6020
- Page 1 ● video at 30 fps while maintaining low network bandwidth. Motorized focus and zoom: The lens on the 6020 IP Camera’s dome allows the focus and zoom to be ● controlled remotely, greatly simplifying installations and field of view adjustments.
- Page 2 ● power through an optional external power supply. Medianet support: The camera supports the Cisco Medianet interface. When connected to a Cisco switch ● that also supports Medianet, the switch recognizes the camera as a video endpoint and then uses SmartPort macros to set the right network parameters for the video stream on the network.
- Page 3 DC: 4.7W AC: 6.3W PoE: 6.2W Table 2 lists the video stream support for the Cisco Video Surveillance 6020 IP Camera for 16:9 aspect ratios. Table 2. Cisco Video Surveillance 6020 IP Camera Video Stream Support for 16:9 Aspect Ratios Primary (H.264)
- Page 4 160 x 96 160 x 96 Table 3 lists the video stream support for the Cisco Video Surveillance 6020 IP Camera for 4:3 aspect ratios. Table 3. Cisco Video Surveillance 6020 IP Camera Video Stream Support for 4:3 Aspect Ratio...
-
Page 5: Specifications
Connectors Table 4 describes the connectivity and connectors of the Cisco Video Surveillance 6020 IP Camera. Table 4. Cisco Video Surveillance 6020 IP Camera Connectors Item Specification Network connectivity 100 BASE-TX Ethernet with RJ-45 connector Alarm input One logic level programmable... -
Page 6: Package Contents
● KN24 Operating temperature 14 to 122° F (-10 to 50° C) Figure 2 shows the dimensions of the Cisco Video Surveillance 6020 IP Camera. All dimensions are in millimeters. Figure 2. Cisco Video Surveillance 6020 IP Camera Dimensions Package Contents Table 7 describes the items that ship with the Cisco Video Surveillance 6020 IP Camera. -
Page 7: Ordering Information
Services and Support Cisco and our certified partners can help you accelerate success and improve the return on your investment in a Cisco Physical Security solution. The Cisco lifecycle approach to services defines the requisite activities at each phase of the solution lifecycle. This approach allows you to: Reduce deployment costs by identifying the features that will best meet your business requirements ●... - Page 8 For more information about the Cisco Video Surveillance 6020 IP Camera, please visit http://www.cisco.com/go/physec or contact your local Cisco account representative. Printed in USA C78-728702-01 12/13 © 2013 Cisco and/or its affiliates. All rights reserved. This document is Cisco Public Information. Page 8 of 8...
