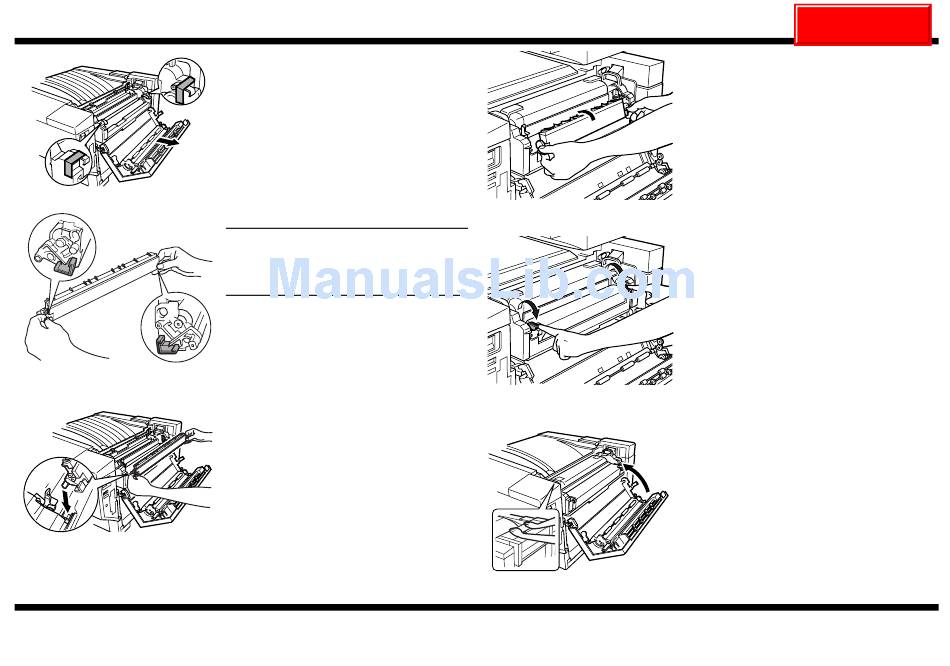

2. Remove the two pieces of tape from the lock
levers of the oil-coating unit shown.
3. Remove the oil-coating unit from its box.
NOTE
When picking up the oil-coating unit, pick it
up by the two handles (one on each end of
the unit) with both hands.
4. Insert the oil-coating unit, making sure that
the two pins (one on each end of the unit) fit
into the notches in the printer.
CF2001P
C4004O153AA
C4004O154AA
C4004U174AA
– 7 –
NEXT
NEXT
5. Swing the oil-coating unit up to install it.
6. Secure the oil-coating unit by moving the two
lock levers (one on each end of the unit)
toward you.
7. Grasp the upper right-side door as shown,
and then carefully close it.
