Ilo Mp Lan Port; Serial Port Connector; Serial Port Pinouts; Ilo Mp Lan Port Pinouts - HP rp4410 Service Manual

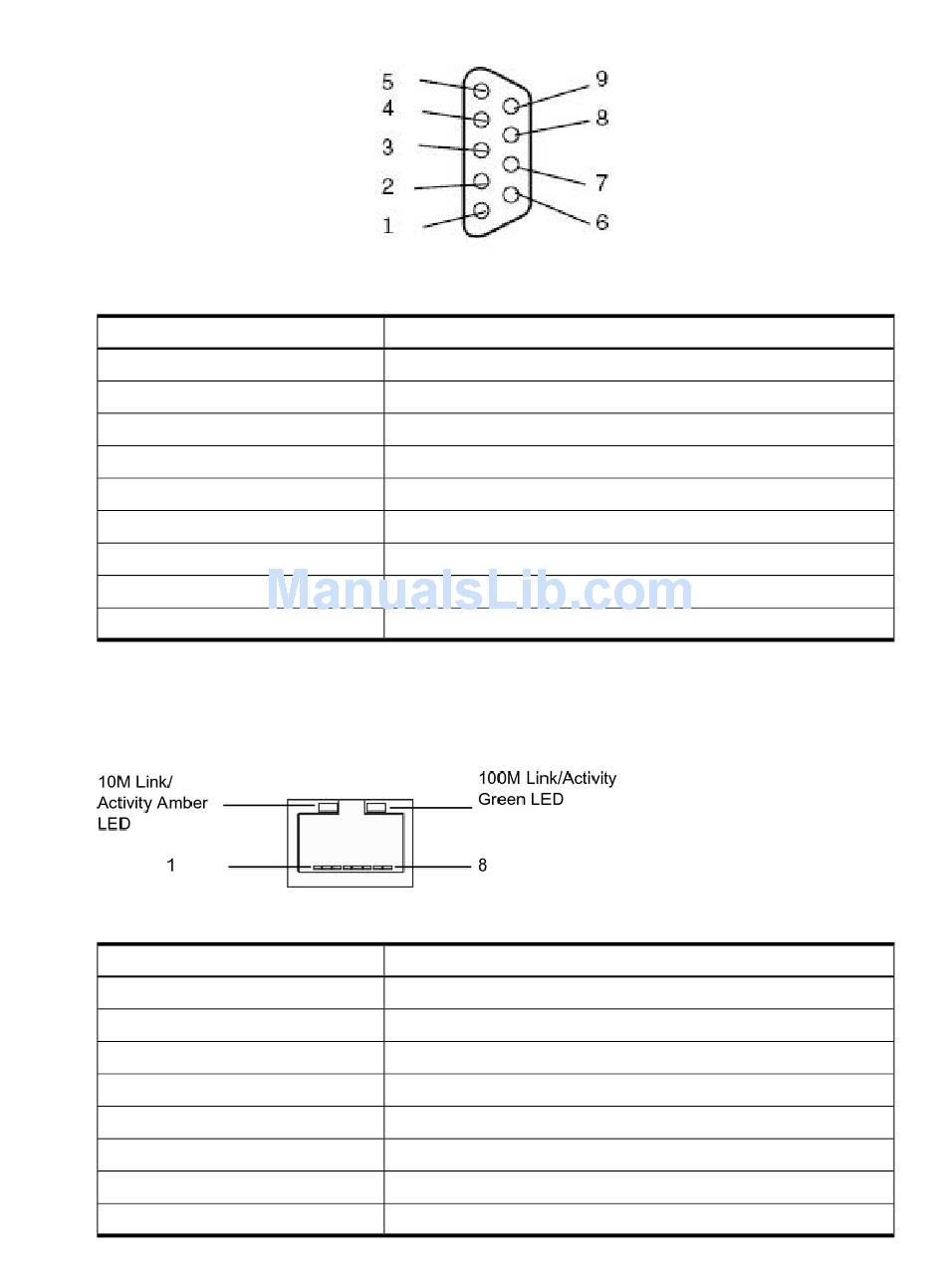

Figure 1-15 Serial Port Connector
Table 1-10 Serial Port Pinouts
Pin Number
1
2
3
4
5
6
7
8
9

iLO MP LAN Port

Figure 1-16 and
Figure 1-16 iLO MP LAN Port
Table 1-1 1 iLO MP LAN Port Pinouts
Pin Number
1
2
3
4
5
6
7
8
34 Overview
Signal Description
Data carrier detect
Receive data
Transmit data
Data term ready
Ground
Data set ready
Request to send
Clear to send
Ring indicator
Table 1-11 show the iLO MP LAN port connector and pinouts.
Signal Description
TXP
TXN
RXP
Not used
Not used
RXN
Not used
Not used
