Table 5-4 QuickFind Diagnostic Panel LED Definitions (continued)
Item
Memory bank
X (0-7)
Check power
supply
Memory
config error
Processor
config error
Missing
component
System temp
Check event
log

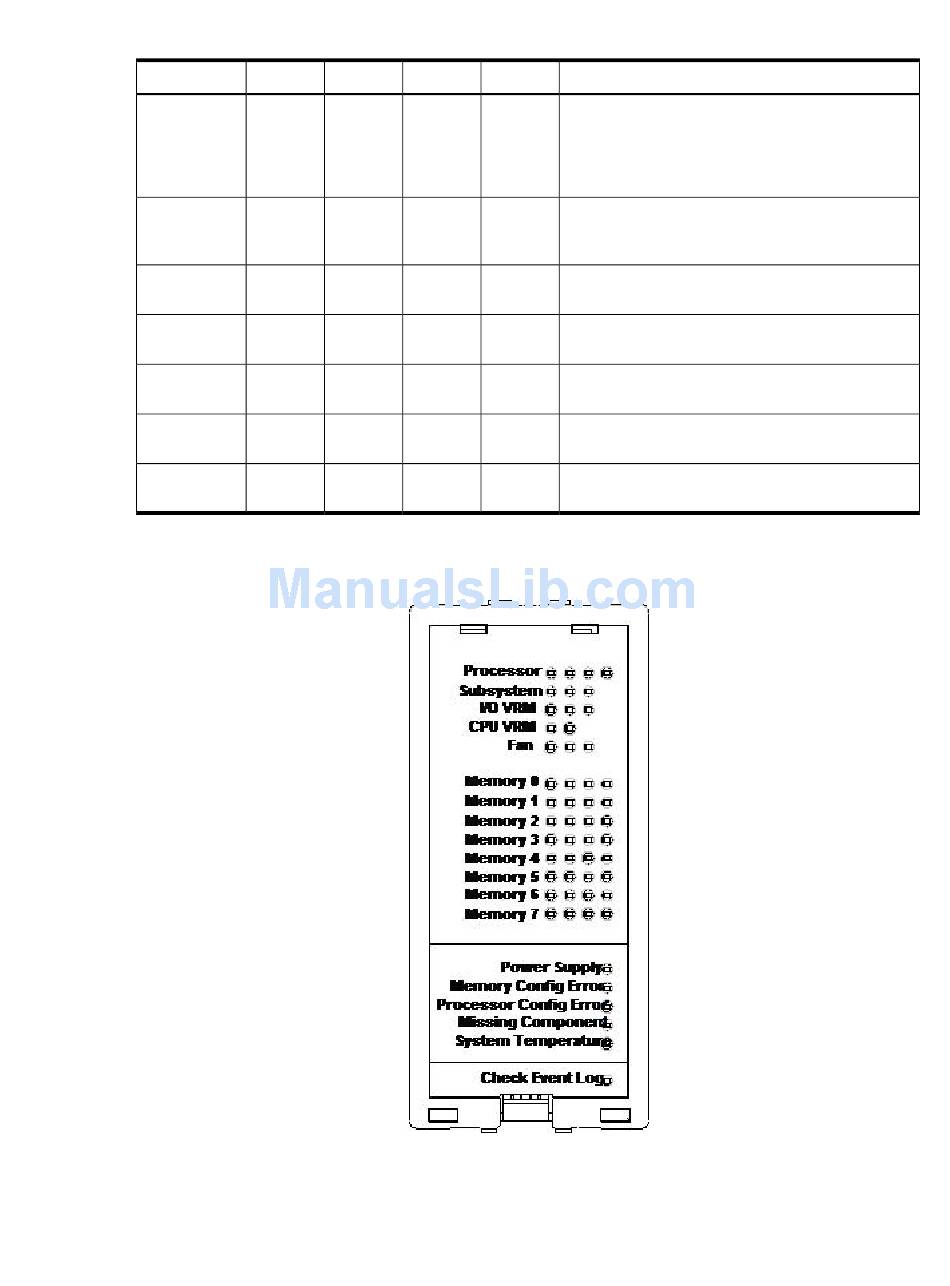

Figure 5-3 shows the QuickFind diagnostic panel.
Figure 5-3 QuickFind Diagnostic Panel

I/O Baseboard LED Indicators

Figure 5-4 shows the LEDs, sensors, and reset or attention buttons on the I/O baseboard.
LED 0 LED 1 LED 2
DIMM DIMM xB DIMM xC
xA
n/a n/a n/a
n/a n/a n/a
n/a n/a n/a
n/a n/a n/a
n/a n/a n/a
n/a n/a n/a
LED 3 Details
DIMM The specified DIMM has failed and must be replaced.
xD If all the LEDs for a rank (0-7) are lit and the memory
config error LED is lit, then the DIMMs in the
specified rank are mismatched—replace mismatched
DIMM
One of the power supplies or power supply fans have
failed. Replace the power supply. The faulty power
supply LED (located on power supply) lights
The DIMMs in a rank are mismatched. All the DIMM
LEDs in the specified rank (0-7) light.
The processors are mismatched. Replace mismatched
processor.
A required component(s) is not installed in the
system. This prevents the server from powering on.
The internal temperature of the server has exceeded
the warning or critical level.
An event has occurred that requires attention.
Troubleshooting Using LED Indicators 141
