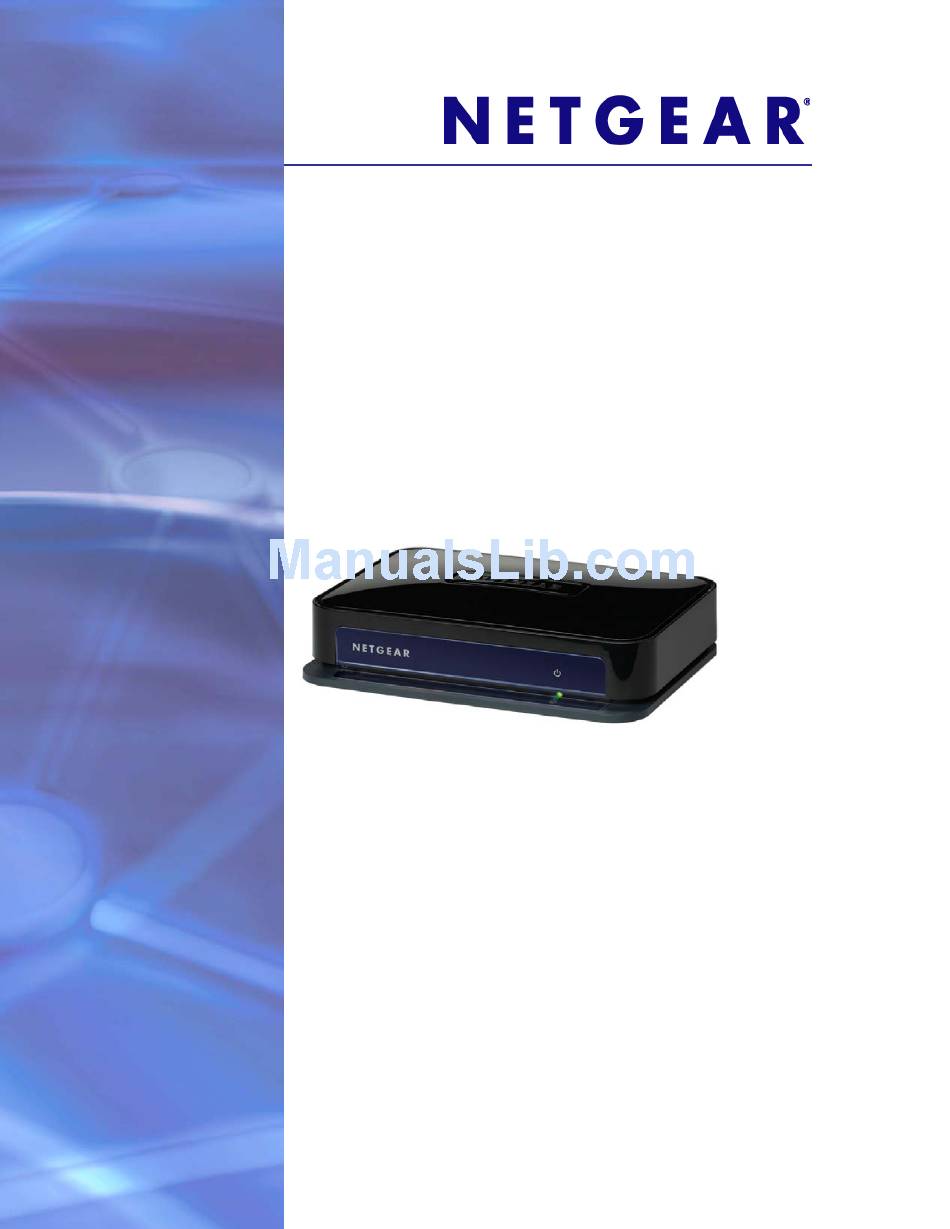

Page 1: User Manual
Push2TV HD Adapter (PTV2000) for Intel Wireless Display User Manual 350 East Plumeria Drive San Jose, CA 95134 January 2011 202-10769-01 v1.0... -
Page 2: Technical Support
NETGEAR, Inc. Technical Support Thank you for choosing NETGEAR. To register your product, get the latest product updates, or get support online, visit us at http://support.netgear.com. -
Page 3: Table Of Contents
Contents Chapter 1 Getting Started Adapter Hardware ..........5 Front and Rear View. - Page 4 Push2TV HD TV Adapter for Intel® Wireless Display User Manual Adapter Power Does Not Turn On ......19 Changing the TV Input .
-
Page 5: Chapter 1 Getting Started
Getting Started With Intel Wireless Display and the Push2TV HD Wireless Adapter, you can connect your laptop wirelessly to your TV and enjoy and share your personal media collections, latest YouTube videos, downloaded or streamed movies, music, or a variety of other Internet content from the comfort of your home. -
Page 6: Adapter Cable Connections
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Adapter Cable Connections The power cord connects to the rear panel of the adapter. Plug the other end of the power cord into an electrical outlet. The HDMI cable connects to the rear panel as shown: HDMI Power Figure 2. -
Page 7: Opening Intel Wireless Display On The Laptop
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Opening Intel Wireless Display on the Laptop To open Intel Wireless Display, click the Windows Start icon on the laptop’s taskbar. Type Intel Wireless Display into the search field. In the search results click Intel Wireless Display. -
Page 8: Connecting To The Adapter
Push2TV HD TV Adapter for Intel® Wireless Display User Manual After the scan is complete, any adapters in range are displayed in the Detected adapters field. If your adapter is not detected, click the Scan for available adapters button. If your adapter still does not appear, see the on page 20. -
Page 9: Playing Media
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Playing Media Playing DVDs with Intel Wireless Display Personal content you have burned into a disc will play. Many DVDs and Blu-ray discs include copy protection mechanisms that prevent playback over unprotected outputs. the Push2TV HD Wireless Adapter can play protected content on a protected content-supported laptop with Intel Wireless Display application software version 2.1 or higher. -
Page 10: Chapter 2 Wireless Display Settings
Wireless Display Settings After you install the Push2TV HD Wireless Adapter, you can adjust the settings. Changing the Display Language To change the adapter display language, use the Restore Factory Settings button located on the bottom of the adapter. Figure 1. Cycling through display languages CAUTION: Pressing the Restore Factory Settings button for more than 5 seconds erases the adapter setup. -
Page 11: Updating The Firmware
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Updating the Firmware If the firmware needs updating, there is an Update available button on the Adapter properties screen. The Properties button is available only if you are currently connected to an adapter. -
Page 12: Adapter Properties
• Protocol) address. Adapter ID. A preset and unchangeable number set by the adapter. • Adapter manufacturer. NETGEAR. • Adapter model. This is the model of the adapter currently connected. • Adapter hardware version. The version of the current hardware. -
Page 13: Adjusting The Sound
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Adjusting the Sound Once a connection begins, the laptop’s sound is muted. When the connection ends, the laptop’s sound is enabled. Testing the Audio When the laptop is connected, clicking the Test audio button on the Adapter properties screen takes you to an audio test screen. -
Page 14: Hdtv 1080P Resolution
Push2TV HD TV Adapter for Intel® Wireless Display User Manual There are two instances where the auto-connect is attempted. The auto-connect adapter is discovered when the Intel Wireless Display application is launched. If the auto-connect adapter is in the list of adapters when the Intel Wireless Display application is relaunched. - Page 15 Push2TV HD TV Adapter for Intel® Wireless Display User Manual After you connect to PTV2000, your laptop displays two screen in clone mode (duplicated displays). This is the default display mode and the resolution is 1280 x720 for both screens. For the Multiple Displays setting, select Extend these displays (extend mode), as shown in the following figure: Now screen_1 (laptop) is back to its default resolution of 1280 x 800 (or 1366 x768), and...
-
Page 16: Chapter 3 Troubleshooting
• www.intel.com/go/wirelessdisplayupdate. For additional help, visit • http://kbserver.netgear.com/products/PTV2000.asp. TV Display The Color on the Laptop Looks Different thanon the TV Sometimes colors on the TV screen and the laptop might be a slightly different. To match the colors, change the TV settings until the screens are the same. (See your TV manual for color adjustment help.) -
Page 17: Tv Image Is Rough, Frozen, Or Delayed
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Two Displays Simultaneously press the Windows key and the letter P on the keyboard. Select Duplicate in the pop-up window to make both laptop and TV screens the same. Three Displays The laptop is capable of displaying only two screens at the same time including its own. -
Page 18: Your Video Mode Has Changed
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Your Video Mode Has Changed The video display resolution might change while you are using Intel Wireless Display. This can happen regardless of whether you change the display resolution manually or it is changed by another application. -
Page 19: Initial Setup
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Initial Setup Adapter Power Does Not Turn On The On/Off button is located on the rear of the adapter. On/Off Figure 1. On/Off button If the adapter is not turning on, make sure the power cord is pushed all the way into both the wall outlet and the adapter. -
Page 20: There Are No Adapters Detected
The laptop has to have specific audio settings for Intel Wireless Display to work correctly. NETGEAR recommends that you do not adjust these settings to a unsupported audio mode. The Unsupported audio mode screen appears if the audio display settings need adjusting. -
Page 21: Your Wireless Switch Is Turned Off
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Manually Setting the Correct Security Profile If the previous steps do not automatically select the correct security profile, click the Intel My WiFi Utility icon in the taskbar and select Open Intel My WiFi Utility. Use the help document in Intel My WiFi Utility and search for Security. -
Page 22: Windows Power Saving
Push2TV HD TV Adapter for Intel® Wireless Display User Manual In the firewall control panel, make sure that the Name, Private, and Public check boxes are selected for both WiDiApp and Wireless PAN DHCP Server. When done, click OK and connect again. Windows Power Saving Microsoft Windows software might be set to dim the display or put the computer to sleep after a period of time. -
Page 23: Common Solutions To Many Issues
If the media application in use can be set to mute or unmute only for both the laptop and • TV at the same time, NETGEAR recommends that you use a different media application. Pressing Control + Alt + Delete on the laptop might freeze the TV image. -
Page 24: Appendix A Factory Settings And Technical Specifications
Factory Settings and Technical Specifications Restoring Factory Settings You can use the Restore Factory Settings button to restore default settings or to change the language (see on page 10). You can also use this button to Changing the Display Language return the adapter to its original firmware and settings. -
Page 25: Technical Specifications
Push2TV HD TV Adapter for Intel® Wireless Display User Manual Technical Specifications Feature Description Compatible laptops Intel Core i3, i5, or i7 processor Intel Graphics Media Accelerator HD graphics adapter Intel WiFi Link wireless networking adapter Microsoft Windows 7 operating system Intel Wireless Display software Network interface IEEE 802.11 a/b/g/n wireless... -
Page 26: Appendix B Related Documents
Related Documents This appendix provides links to reference documents you can use to gain a more complete understanding of the technologies used in your NETGEAR product. Document Link Document Link Using Microsoft Vista and http://documentation.netgear.com/reference/enu/winzerocfg/vistaxpconfi Windows XP to Manage g.pdf... -
Page 27: Appendix C Notification Of Compliance
FCC Declaration of Conformity We, NETGEAR, Inc., 350 East Plumeria Drive, San Jose, CA 95134, declare under our sole responsibility that the Push2TV HD Adapter (PTV2000) for Intel Wireless Display complies with Part 15 Subpart B of FCC CFR47 Rules. - Page 28 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. For complete DoC please visit the NETGEAR EU Declarations of Conformity website at: http://kb.netgear.com/app/answers/detail/a_id/11621/...
- Page 29 Directive 1999/5/EC. Español Por medio de la presente NETGEAR Inc. declara que el Radiolan cumple con los [Spanish] requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
- Page 30 Svenska [Swedish] överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG. Hér með lýsir NETGEAR Inc. yfir því að Radiolan er í samræmi við Íslenska [Icelandic] grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
