Router Back Panel

The back panel of the wireless-N modem router contains port connections.
3
4
2
1

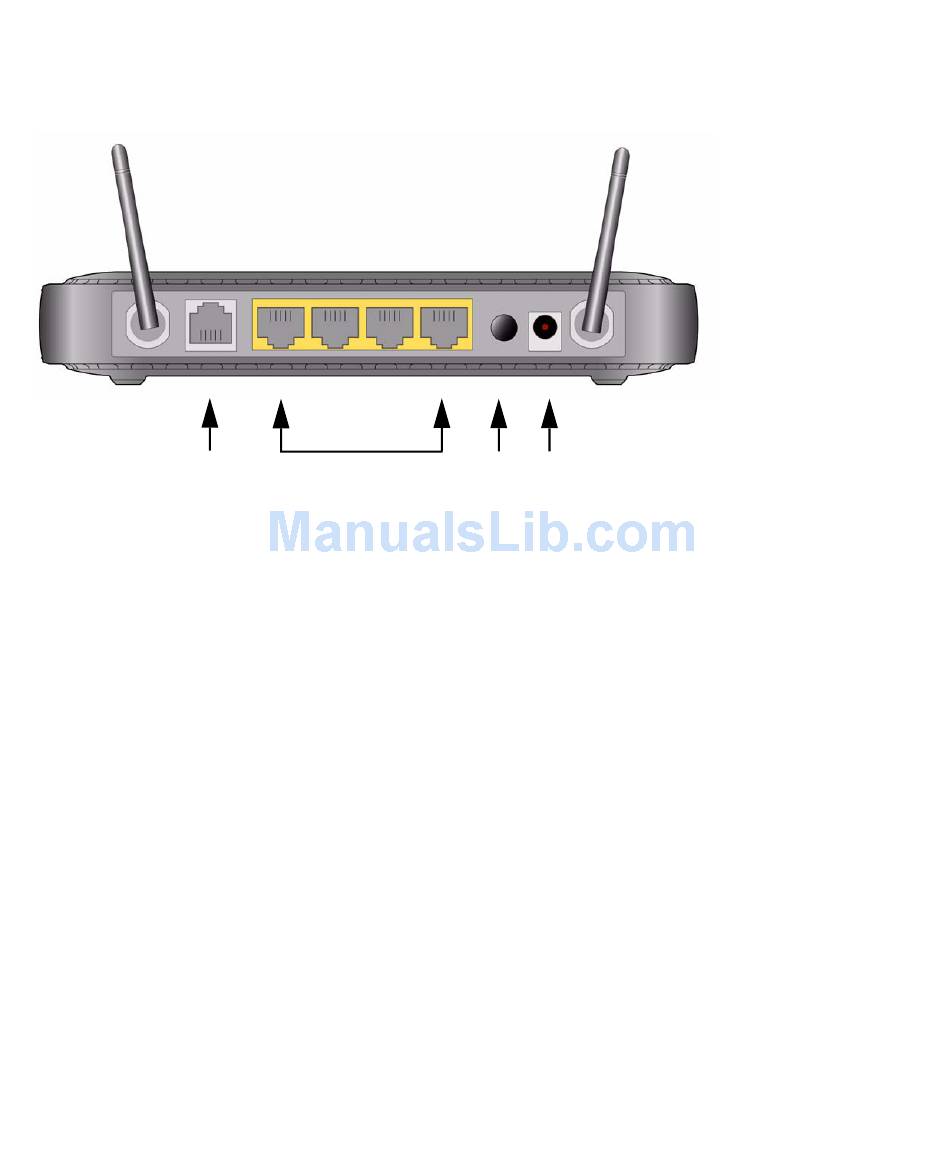

Figure 2
Viewed from left to right, the rear panel contains the following elements:
1. RJ-11 ADSL port for connecting the wireless-N modem router to an ADSL line
2. Four Local Ethernet RJ-45 LAN ports for connecting the wireless-N modem router to the local
computers
3. Power On/Off button
4. AC power adapter input
The ports on the router are color-coded to distinguish your Internet port from the other four ports
that connect to the wired computer(s) on your LAN.
