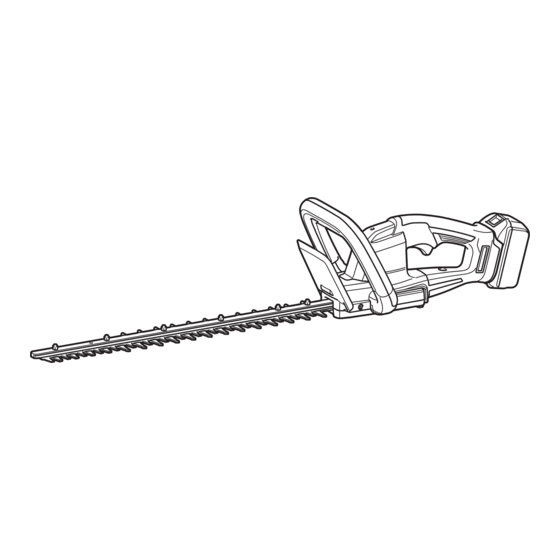

- Page 1 INSTRUCTION MANUAL Cordless Hedge Trimmer DUH506 DUH606 Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: DUH506 DUH606 Blade length 500 mm 600 mm Strokes per minute 4,000 min Overall length 846 mm 965 mm (Without battery) Rated voltage D.C. 18 V Net weight 2.5 - 2.9 kg 2.7 - 3.0 kg • Due to our continuing program of research and development, the specifications herein are subject to change without notice. -
Page 3: Safety Warnings
Noise Applicable standard : EN62841-4-2 Model Sound pressure level Sound power level (dB(A)) Uncertainty K (dB(A)) Uncertainty K (dB(A)) (dB(A)) DUH506 DUH606 NOTE: The declared noise emission value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared noise emission value(s) may also be used in a preliminary assessment of exposure. - Page 4 Avoid body contact with earthed or grounded Always wear protective goggles to protect surfaces, such as pipes, radiators, ranges and your eyes from injury when using power tools. refrigerators. There is an increased risk of elec- The goggles must comply with ANSI Z87.1 in the USA, EN 166 in Europe, or AS/NZS 1336 tric shock if your body is earthed or grounded.
-
Page 5: Additional Safety Instructions
When using the tool, do not wear cloth work When clearing jammed material or servicing gloves which may be entangled. The entangle- the unit, make sure all power switches are off and the battery pack is removed or discon- ment of cloth work gloves in the moving parts may nected. - Page 6 Do not use the tool in the rain or in wet or Do not charge battery in rain, or in wet very damp conditions. The electric motor is not locations. waterproof. SAVE THESE INSTRUCTIONS. Make sure you have a secure footing before starting operation.
-
Page 7: Functional Description
Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and Fig.1 charger. ► 1 . Red indicator 2. Button 3. Battery cartridge... -
Page 8: Overload Protection
Let the machine and battery(ies) cool down. 50% to 75% If no improvement can be found by restoring protection system, then contact your local Makita Service Center. 25% to 50% NOTICE: If the tool stops due to a cause... -
Page 9: Electronic Function
This tool is equipped with an electric brake. If the tool consistently fails to quickly stop the shear blades after releasing the switch trigger, have the tool serviced at Makita Authorized Service Center. • Accidental re-start preventive function Even if you install the battery cartridge while pull- ing the switch trigger, the tool does not start. - Page 10 Place the tool upside down, then remove 6 bolts, Remove 2 bolts, the felt pad and the sleeves, and and then remove the cover and the plate. then remove the shear blades. Fig.8 ► 1 . Felt pad 2. Bolt 3. Sleeve 4. Shear blades Remove the blade cover, and then attach it to the new shear blades.
- Page 11 Slide the shear blades slightly as shown in the Slide the shear blades and sleeves so that the figure, and then attach the sleeves to the shear blades. holes on the sleeves are aligned with the holes on the tool. Fig.11 ► 1 . Sleeve Fig.13 Slide the blade cover slightly toward the tip of the shear blades, and then attach the shear blades to the ► 1 .
- Page 12 ► 1 . Claw 2. Groove the crank properly. Install the shear blades again. NOTICE: If the parts other than the shear blades such as the crank is worn out, ask Makita Authorized Service Centers for parts replacement or repairs. 12 ENGLISH...
-
Page 13: Operation
Press the levers on the chip receiver, and then OPERATION hook the claws on the other side to the groove on the shear blades. WARNING: Keep hands away from shear blades. CAUTION: Avoid operating the tool in very hot weather as much as practicable. When operat- ing the tool, be careful of your physical condition. -
Page 14: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Clean the tool by wiping off dust with a dry cloth or one Fig.26 dipped in soapy water and wrung out. - Page 15 Shear blade maintenance Storage Before the operation or once per hour during operation, The hook hole in the tool bottom is convenient for hang- apply low-viscosity oil (machine oil, or spray-type lubri- ing the tool from a nail or screw on the wall. cating oil) to the shear blades.
-
Page 16: Grease Lubrication
Set the angle of a file to 35°, and grind the upper Grease lubrication blade from 2 directions with the file. Interval of lubrication: Every 50 operating hours Remove the bolt from the hole for lubrication. Fig.33 ► ( 1) File (2) 35° Fig.35 CAUTION: Before grinding the shear blades, ► 1 . Bolt make sure that the tool is switched off and the battery cartridge is removed from the tool. -
Page 17: Troubleshooting
TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. Battery cartridge is not installed. Install the battery cartridge. - Page 20 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885987-221 www.makita.com 20220624...
