Panasonic ES-WL60 - Ladies Shaver Manual

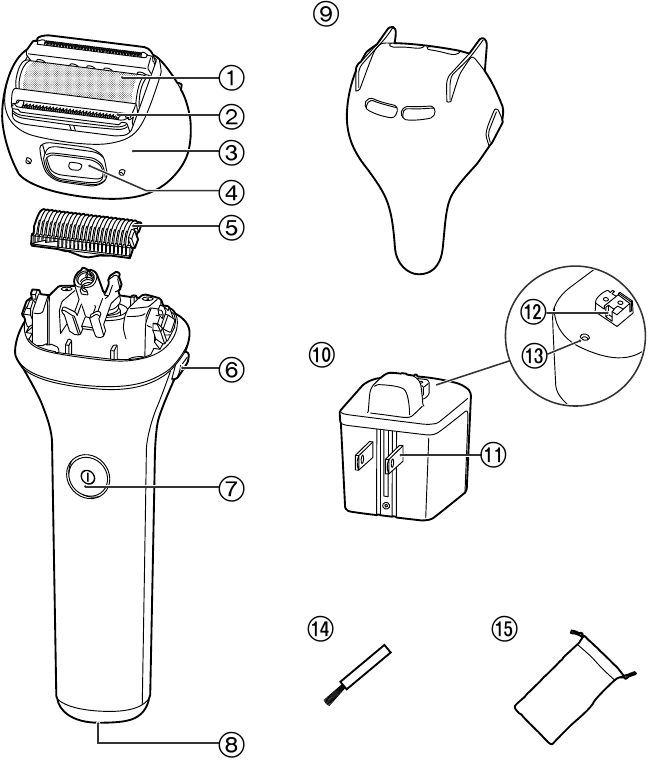

Parts identification

(Fig. 1)

1. Outer foil
2. Trimmer
3. Outer foil frame
4. Pop-up trimmer switch
5. Inner blade
6. Outer foil frame release buttons
7. Power switch
8. Appliance socket
9. Travel cap & holder (cap)
10. AC adaptor (RE6-71)
11. Power plug
12. Charging plug
13. Charging indicator lamp

Accessories

14. Cleaning brush
15. Pouch

Attaching or removing the travel cap & holder

Press down on both sides of the cap to attach or remove.

(Fig. 2)

• Check that all four protrusions on the shaver are inserted securely.
• The shaver can be kept vertically or horizontally. When carrying the shaver, you can use the cap to protect the outer foil and prevent erroneous operation of the switch.

Charging

(Fig. 3)

• Make sure that the shaver is turned off.
• Wipe off any water droplets on the appliance socket.
• You cannot operate the shaver while charging.

1. Place the shaver on the AC adaptor until it clicks.
2. Insert the power plug into a household outlet.
   • It will take approximately 20 hours to fully charge the shaver.
   • Check that the charging indicator lamp glows.
3. After charging is completed, unplug the power plug and then the shaver. (for safety and energy saving)
   • The charging indicator lamp continues to glow after charging is completed. There is no indication to show that "charging is completed".
   • Charging the battery for more than 20 hours will not affect battery performance.
   • Always unplug the shaver from the AC adaptor except when charging.

Notes

• If there is noise from the radio or other sources while using or charging the shaver, move to a different location to use it.
• The battery will deteriorate (leak battery fluid, etc.) if not used for over 6 months, so make sure to perform a full charge at least once every 6 months.
• When charging the shaver for the first time or when it has not been in use for more than 6 months, the charging time may change or the lamp on the AC adaptor may not glow for a few minutes, or the operating time may shorten. Please charge it for more than 30 hours in such cases.
• Recommended ambient temperature for charging is 0°C – 35°C (32°F – 95°F). Battery performance may decrease outside of the recommended temperature.
• A full charge supplies enough power for approximately 35 minutes of use. (Based on dry using at 20°C – 30°C (68°F – 86°F)) The operating time may differ depending on the frequency of use, the operating method and the ambient temperature.
• You can charge the battery before it is completely discharged. However, it is recommended to charge when the battery is completely discharged. The battery life depends mainly on factors such as how it is used and stored.

How to use

• Remove the cap and check that the outer foil is free from deformities, cracks and damage before use.
• The shaver may not operate in an ambient temperature approximately 0°C (32°F) or lower.

Press the power switch and shave.

For the best results, move the shaver in back and forth motion, while keeping the shaver head at a right angle (90°) to your skin. Slide the pop-up trimmer switch up when using the pop-up trimmer to cut long hair.

(Fig. 4)

Underarms Hold your arm up enough to stretch your skin and shave back and forth.

(Fig. 5)

Legs Move the shaver from ankle to knee.

(Fig. 6)

Arms Move the shaver from outside to inside.

(Fig. 7)

Bikini line Make sure the line which you would like to shave, and then trim excessive hair with the pop-up trimmer.

(Fig. 8)

Cleaning

• Regular cleaning will keep your shaver in a hygienic state and maintain the cutting performance.
• Make sure that the shaver is turned off.
• Do not wipe with alcohol or nail polish remover. Doing so may cause malfunction, cracking of the parts or discoloration.

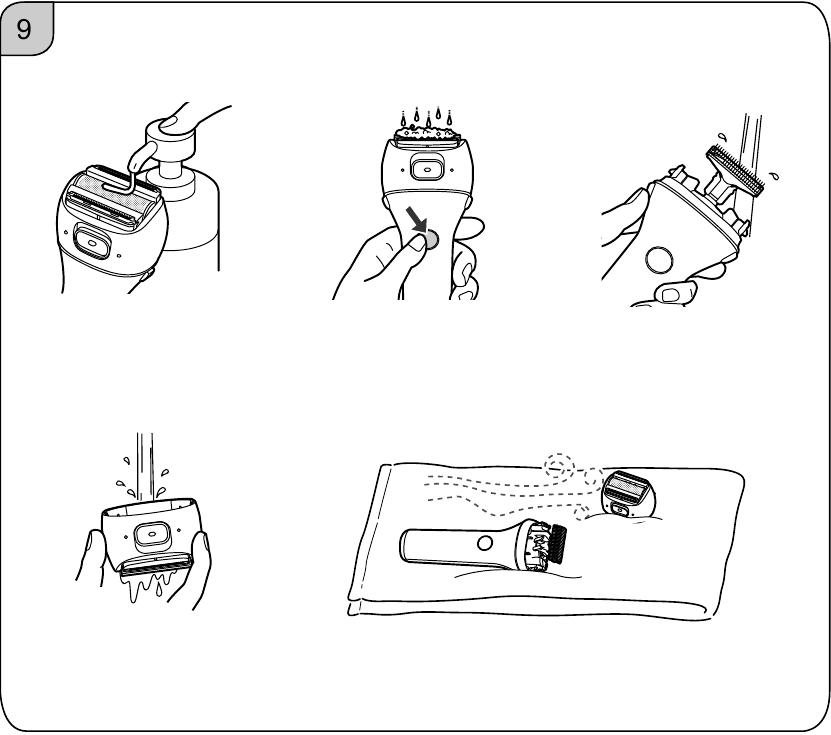

Wet cleaning

(Fig. 9)

1. Apply some hand soap onto the outer foil.
2. Turn the shaver on and turn off after few seconds.
3. Press the outer foil frame release buttons to remove the outer foil frame.
4. Rinse the inner blade and outer foil frame with cold or lukewarm water.
   • Do not use hot water.
5. Wipe the shaver with a dry cloth and dry them well.

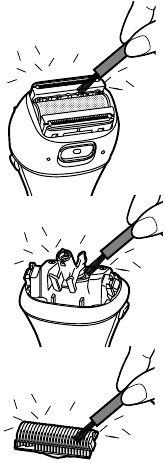

Dry cleaning

(Fig. 10)

Clean the hair dust with the cleaning brush.

Storing

Attach the cap.

• Do not leave the shaver in a place with high temperature and high humidity. Doing so may cause malfunction.

Replacing shaving head components

Replacing the outer foil

1. Press the outer foil frame release buttons to remove the outer foil frame.

   (Fig. 11)
2. Hold the knobs on the outer foil with your finger. Lift it up in the direction of the arrow while pushing the edge of outer foil from the outside.

   (Fig. 12)
3. Align the directions of knobs as illustrated and insert the new outer foil into the frame. (Fig. 12)
4. Insert the plastic edges into the frame until they click.

Replacing the inner blade

(Fig. 13)

1. Hold the inner blade at both ends firmly and pull it straight away from the shaver to remove.
2. Insert the new inner blade by holding it at both ends and press it downward until it clicks.

Troubleshooting

The appliance does not operate.

• Fully charge the appliance.
• If the appliance and the AC adaptor are connected to the household outlet, disconnect from the household outlet before use.
• Perform wet-cleaning.

The usage time gets short.

• Fully charge the appliance.
• Use the appliance in an ambient temperature approximately 0°C (32°F) or higher.
• Contact to skin with gentle force.

The appliance is not cutting as well as before.

• Clean the hair dust.
• Replace the blade.

Guidelines for replacement

If the problems still cannot be solved, contact the store where you purchased the appliance or a service center authorized by Panasonic for repair.

Battery life

The life of the battery is 3 years. Have the battery replaced by an authorized service center.

Specifications

Power source	See the name plate on the AC adaptor.
Motor voltage	1.2 V
Charging time	Approx. 20 hours

This product is intended for household use only.

Safety precautions

Make sure to follow these instructions.
To prevent accidents, injuries or damage to property, please follow the instructions below.

Indicates potential hazard that will result in serious injury or death.

Indicates potential hazard that could result in serious injury or death.

Indicates potential hazard that could result in minor injury or property damage.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions are required to always be followed, including the following.
Read all instructions before using this appliance.

To reduce the risk of electric shock:

1. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
2. Unplug this appliance before cleaning.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.
3. Never use this appliance if it has a damaged plug, when not working properly, if it has been dropped, damaged, or after it has been submerged under water. Return the appliance to a service center for examination and repair.
4. Never drop or insert any object into any opening.
5. Do not use outdoors or operate where aerosol (spray) products are being used.
6. Do not use this appliance with a damaged or broken attachment as it has the potential to cause facial injury.
7. Always attach the plug to the appliance first, then to the outlet. To disconnect, turn all controls to "off" then remove plug from outlet.
8. Plug charger directly into receptacle - do not use an extension cord.
9. Unplug charger before plugging or unplugging appliance.

SAVE THESE INSTRUCTIONS

Power supply

• Do not damage the power plug.
  Do not deface, modify, forcefully bend or pull the power plug.
• Do not immerse the AC adaptor in water or wash it with water
• Do not place the AC adaptor over or near water filled sink or bathtub.
• Never use the appliance if the AC adaptor is damaged or if the power plug fits loosely in a household outlet.
  Doing so may cause electric shock or fire due to a short circuit.
• Do not connect or disconnect the AC adaptor to a household outlet with a wet hand.
  Doing so may cause electric shock or injury.
• Do not use in a way exceeding the rating of the household outlet or the wiring.
  Exceeding the rating by connecting too many plugs to one household outlet may cause fire due to overheating.
• Do not use anything other than the supplied AC adaptor for any purpose. Also, do not use any other product with the supplied AC adaptor.
  Doing so may cause burn or fire due to a short circuit.
• Always ensure the appliance is operated on an electric power source that matches the rated voltage as indicated on the AC adaptor.
• Fully insert the AC adaptor.
  Failure to do so may cause fire or electric shock.

This product

• This product has a built-in rechargeable battery. Do not throw into flame or heat.
  Doing so may cause fluid leak, overheating, or explosion.
• Do not modify or repair.
  Doing so may cause fire, electric shock, or injury. Contact an authorized service center for repair (battery change etc.).
• Never disassemble except when disposing of the product.
  Doing so may cause fire, electric shock, or injury.

In case of an abnormality or malfunction

• Immediately stop using and remove the AC adaptor if there is an abnormality or malfunction.
  Failure to do so may cause fire, electric shock, or injury.

<Abnormality or malfunction cases>

• The main unit or the AC adaptor is deformed or abnormally hot.
• The main unit or the AC adaptor smells of burning.
• There is an abnormal sound during use or charging of the main unit or the AC adaptor.
  Immediately request inspection or repair to an authorized service center.

Preventing accidents

Do not place within reach of children or infants. Do not let them use it.
Doing so may cause an accident or injury due to accidental ingestion of the inner blade, brush, etc.

Cleaning

• Regularly clean the power plug and the charging plug to prevent dust from accumulating.
  Failure to do so may cause fire due to insulation failure caused by humidity.
  Disconnect the AC adaptor and wipe with a dry cloth.

To protect the skin

• The following persons should not use this appliance:
  Persons with sensitive or delicate skin, persons with allergies
• Do not use in the following body area:
  • Face, vulva
  • Injuries, rashes, moles, bruises, warts, pimples, etc., and the surrounding areas
  • Flaccid skin
    Doing so may cause injury, inflammation of the skin, or bleeding.
• Do not apply strong pressure to the skin, move repeatedly over the same area or move back and forth in one area.
  Also, do not use with a jabbing motion.
  Doing so may cause injury or inflammation of the skin, or increased pain.
• Do not forcefully press the outer foil. Also, do not touch the outer foil with fingers or nails when in use.
  Doing so may cause injury to skin or reduce the life of the outer foil.
• Do not touch the blade section (metallic section) of the inner blade.
  Doing so may cause injury to your hands.
• Before using, check that the outer foil is free from deformities, cracks, and damage.
  Failure to do so may cause injury to the skin.
• If skin problems appear after use, stop using the appliance and contact a dermatologist.
  Failure to do so may cause symptoms to worsen.
• When storing or carrying, always attach the cap.
  Failure to do so may cause injury to skin or reduce the life of the outer foil.

This product

• Do not allow metal objects or trash to adhere to the power plug or the charging plug.
  Doing so may cause electric shock or fire due to a short circuit.
• Do not share with your family or others.
  Doing so may cause infection or inflammation.
• Do not drop or subject to shock.
  Doing so may cause injury.

Important information

• This WET/DRY shaver can be used for wet shaving using shaving lather or for dry shaving. You can use this watertight shaver in the shower and clean with water. The following symbol means suitable for use in a bath or shower.


• Charge the appliance correctly according to these Operating Instructions. (See "Charging".)
• This appliance contains battery that is only replaceable by skilled persons. Please contact an authorized service center for the details of repair.

TOLL-FREE HOT LINE: 1-800-332-5368.
(IN USA ONLY)
