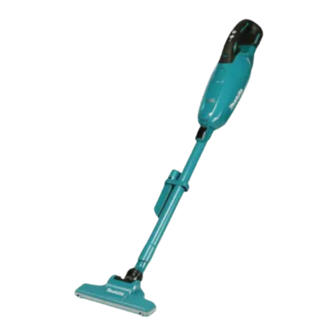

- Page 1 INSTRUCTION MANUAL Cordless Cleaner DCL285F Read before use.
-
Page 2: Specifications
WARNING • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruc- tion concerning use of the appliance in a safe way and understand the hazards involved. •... -
Page 3: Safety Warnings
19. Do not use a battery pack or appliance that Intended use is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour The tool is intended for collecting dry dust. resulting in fire, explosion or risk of injury. 20. - Page 4 It will A battery short can cause a large current also void the Makita warranty for the Makita tool and flow, overheating, possible burns and even a charger. breakdown.
-
Page 5: Functional Description
If no improvement can be found by restoring protection system, then contact your local Makita Service Center. To remove the battery cartridge, slide it from the tool Indicating the remaining battery while sliding the button on the front of the cartridge. - Page 6 Lighting up the lamp Indicator lamps Remaining capacity CAUTION: Do not look in the light or see the Lighted Blinking source of light directly. 75% to 100% To turn on the lamp, push the suction power change button. The lamp goes off in approximately 10 seconds. 50% to 75% While the cleaner is running, the lamp turns on.
- Page 7 Insert the protrusion of the dust bag into the lower NOTICE: To prevent dust from getting into the groove on the dust stopper as shown in the figure. motor: Make sure that the dust bag or paper filter is • installed before use.
- Page 8 Installing the paper filter Place the dust stopper and the dust bag together into the cleaner cavity in the same direction of arrow on the dust stopper. Insert them all the way into the slots in Use the dust stopper also when installing paper filter. the cleaner cavity.
-
Page 9: Operation
Spread the container part of the paper filter inside There is no distinction between the upper and lower sides of the paper filter. You may insert its protrusion of the cleaner. any side into the lower groove of the dust stopper. Fig.20 Fig.17 Close the front cover completely. - Page 10 When using attachment with lock function Cleaning (Suction) To install attachment, insert it to the suction inlet of the cleaner until it clicks. Make sure that the attachment is locked. Nozzle Attach the nozzle to clean off tables, desks, furniture, etc.
- Page 11 For picking up dust on a floor in a standing position, it is You can store the sash nozzle in the nozzle holder. convenient to attach the extension wand to the cleaner. Fig.28 ► 1. Nozzle holder 2. Sash nozzle Fig.31 ►...
-
Page 12: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should Fig.34 be performed by Makita Authorized or Factory Service ► 1. Dust stopper 2. Dust bag Centers, always using Makita replacement parts. After use When using the paper filter Remove the dust stopper and dispose of the paper filter. - Page 13 Dust stopper Cleaning Wipe dust off from the dust stopper. Clean the dust bag and filter Remove dust and dirt on the sponge part by lightly CAUTION: tapping it. when they become clogged. Continuing use in the clogged condition may result in heating or fire. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like.
-
Page 14: Troubleshooting
To install the sponge filter, press in the whole edge of Wall mount for cordless cleaner the sponge filter against the recessed wall inside the dust bag/paper filter mounting area. Optional accessory NOTE: The screw to mount the holder is not included. Prepare a screw which fits with the material to screw into. -
Page 15: Optional Accessories
Optional accessory CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 16 NOTE: Check that the cyclone attachment, cleaner, NOTE: Check that the cyclone attachment, cleaner, and extension wand (straight pipe) are locked prop- and extension wand (straight pipe) are locked prop- erly before use. erly before restarting operation. NOTE: Empty the dust case of the cyclone attach- NOTE: If the suction force does not recover even ment and the dust bag or paper filter of the cleaner after disposing of the dust and cleaning the mesh...
- Page 17 When the mesh filter gets dirty badly, clean it in the following procedures. Turn the mesh filter in the direction of the arrow and remove it while the hooks are unlocked. Fig.48 ► 1. Mesh filter 2. Hook Remove the dust on the mesh filter and then wash it with water.
- Page 20 Jan-Baptist Vinkstraat 2, Makita Europe N.V. 3070 Kortenberg, Belgium 3-11-8, Sumiyoshi-cho, Makita Corporation Anjo, Aichi 446-8502 Japan 885A26-223 www.makita.com 20221111...
