Product Overview - Canon imagePROGRAF iPF825 Service Manual

1.1 Product Overview

1.1.1 Product Overview

This printer is a large-format printer that prints in a maximum width of 44 inches with high-speed photographic picture quality.
This printer is a stand-mounted type printer and is capable of output to either roll media or cut sheet.

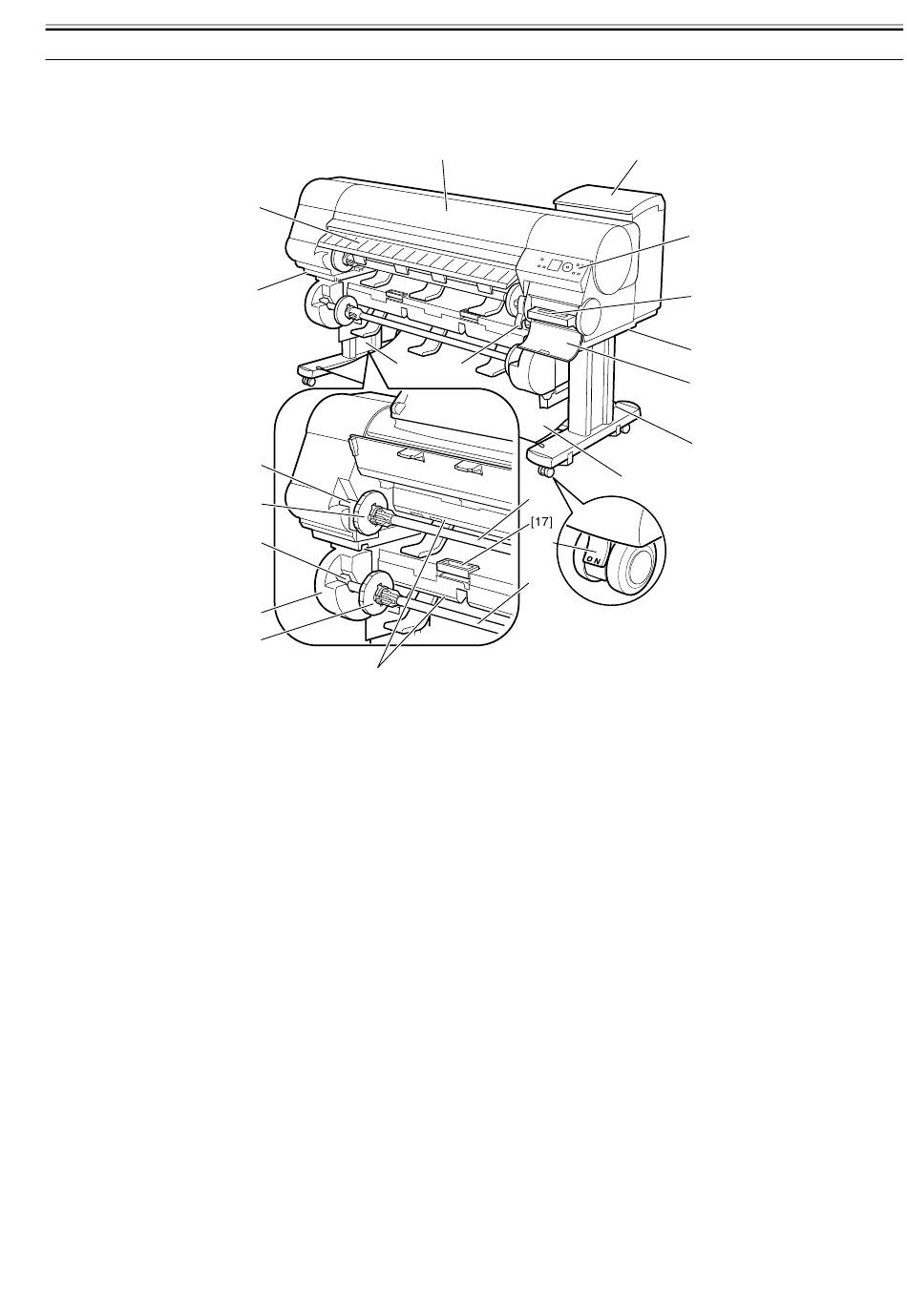

[1] Upper Cover
[2] Ejection Guide
[3] Roll Holder Slot
[4] Roll Holder
[5] Cut Sheet Protective Cloth
[6] Paper Feed Slot
[7] Holder Stopper
[8] Ink Tank Cover
[9] Operation Panel
[2]
[12]
[17]
[3]
[7]
[3]
[16]
[7]
[6]
[1]
[10]
[4]
[15]
[4]
F-1-1
T-1-1
[10] Release Lever
[11] Maintenance Cartridge
[12] Carrying Handles
[13] Maintenance Cartridge Cover
[14] Stand
[15] Stopper
[16] Lower Roll Unit
[17] Lower Roll Unit Lever
[8]
[9]
[11]
[12]
[13]
[14]
[5]
