Page 1 EBL512 G3 V. 3.0.X OPERATING INSTRUCTONS Fire alarm solutions 5000S Series www.panasonic-fire-security.com...
Page 2: Table Of Contents
Table of Contents INTRODUCTION ABBREVIATIONS GENERAL DESCRIPTION EBL512 G3 FRONT 5.1. FIRE BRIGADE PANEL 5.2. CONTROL PANEL 5.3. DETAILED DESCRIPTION OF THE FRONT 5.3.1. LED INDICATORS 5.3.2. PUSH BUTTONS 5.3.3. DISPLAY 5.4. INFORMATION PRIORITY ORDER 5.5.
Page 3 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS EVACUATE OPEN DOOR 17.1. DISABLE ROUTING EQUIPMENT WITH DOOR SWITCH 17.2. SILENCE BUZZER WITH DOOR SWITCH ALARM 18.1. ALARM TYPES 18.1.1. PRE-WARNING 18.1.2. FIRE ALARM 18.1.3. HEAVY SMOKE ALARM / HEAVY HEAT ALARM 18.1.4.
Page 4 UPGRADE NUMBER OF ALARM POINTS 24.1. CONTROL UNITS IN A NETWORK RESTART 25.1. SAFE SHUT DOWN 25.2. RESTART TABLE 25.2.1. EXPLANATION OF RESTART CODES 25.3. DURING RESTART 25.3.1. MEMORY FAULT MENUS PERFORM MONTHLY TEST (H1) DISABLE OR RE-ENABLE (H2) 28.1.
Page 5 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS PERFORM ZONE TEST (TEST MODE) (H7) 33.1. DURING THE TEST 33.2. AFTER THE TEST MAINTENANCE (H8) 34.1. DIS- / RE-CONNECT LOOP / ZONE LINE INPUT (H8/S1) 34.2.
Page 6: Introduction
S/W and SSD, different settings, conventions, languages, and so on can be set to fulfil national regulations. Since the EBL512 G3 control unit (c.i.e.) is produced for many countries the look, the texts, the functions and so on might vary.
Page 7 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS TYPE NUMBER - ARTICLE NUMBER - PRODUCT NAME A product consists of one or more parts (HW) according to a Product Parts List. A product has a type number. An article number is often the same as the type no. but a country code can be added, S for main board 5012, or PRT for printer.
Page 8: Abbreviations
2. ABBREVIATIONS PFSEU AB Panasonic Fire & Security Europe AB Units, which can generate a fire alarm (in the control unit), i.e. analog detectors (sensors), Alarm points conventional detectors, manual call points, etc. Smoke detector Analog or conventional photoelectric (optical) smoke detector...
Page 9 EBL Firmware Manager PC program used to download another / new software version. The Gateway is used to get EBL512 G3 information as well as remote control via a PC Gateway (browser) and an intranet / internet. The Gateway is configured via the PC tool EBLWin.
Page 10: General Description
G3 can have up to 1012 addresses, of which up to 512 can be alarm points - according to EN54-2. EBL512 G3 can be used as a stand-alone control unit or connected to a network. A network can have up to 30 control units.
Page 11 The PC program TLON Manager is used for the TLON Network programming and installation. APPLICATIONS The EBL512 G3 system is intended for small, medium, and large installations. The intelligent control units offer the system designer and end user a technically sophisticated range of facilities and functions.
Page 12: Ebl512 G3
Grey metal cabinet DIN rail for Gateway (5088) • MMI board (5015) (Not in 5001S) EBL512 G3 front with display (not in 5001S) • Main board (5012) Four COM loops (0-3) to which the loop units are connected Four programmable supervised voltage outputs (S0-S3) Two programmable relay outputs (R0-R1) Four programmable supervised / not supervised inputs (I0-I3).
Page 13: Front
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 5. FRONT 1) Fire brigade panel 2) Control panel 5.1. FIRE BRIGADE PANEL The fire brigade panel is used by the fire brigade personnel to see which alarm point(s) / zone(s) having activated fire alarm and to take required operational control of the system.
Page 14: Detailed Description Of The Front
5.3. DETAILED DESCRIPTION OF THE FRONT Menu Next zone Re-enable Evacuate 11 12 13 14...
Page 15: Led Indicators
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 5.3.1. LED INDICATORS See reference picture on page 14. 5.3. DETAILED DESCRIPTION OF THE FRONT Fire Fire alarms. See 18 ALARM Output(s) for extinguishing equipment activated. (Or a programmable input type "Extinguishing" is Extinguishing activated.)
Page 16: Push Buttons
5.3.2. PUSH BUTTONS See reference picture on page 14. 5.3. DETAILED DESCRIPTION OF THE FRONT Used to clear / delete all visible entry fields. Used to stop input of data or to step upwards in the menu system. Key pad Numeric key pad for the digits 0-9.
Page 17: Display
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 5.3.3. DISPLAY See reference picture on page 14. 5.3. DETAILED DESCRIPTION OF THE FRONT The door is open in any c.i.e. (not valid for 5055) in the system. See also section 17. OPEN DOOR on page 35.
Page 18: Information Priority Order
5.4. INFORMATION PRIORITY ORDER When the control unit / system is in normal operation (quiescent state), which means no fire alarms, no faults, no disablements, no service signals, no zones in test mode, no activated interlocking in / outputs, and/or Alert Annunciation function not enabled, only the LED "Operation"...
Page 19: System Information In The Lcd
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 5.5. SYSTEM INFORMATION IN THE LCD EBL512 G3, control unit number, date and time are displayed. The exact look is convention / language dependent. One example of the information area: EBL512 G3...
Page 20: User Data
Via EBLWin (menu “System”) ten different User names with individual Passwords are possible to define in the "User data" dialog box. One of three different levels /Types can be selected for each user name. They have to be used to log on to an EBL512 G3 and/ or for Gateway access.
Page 21: Password
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 6.2. PASSWORD Each user has a password for an access level, for example. "Information only", "Building officer" or "Service personnel". 6.2.1. CHANGE OF PASSWORD Normally the user names and passwords are downloaded / changed via EBLWin and SSD download. A logged on person (user name) can also change his/her password via menu H10.
Page 22: Access
7. ACCESS To use the key pad in the control unit and get access to the menus, it is necessary to log in with a user name and a password for level 2B, 2C or 3A. See section on page 23. 8.1.
Page 23: User Levels
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 8. USER LEVELS Each user level type has access to specific menus according to the following table. INFORMATION ONLY BUILDING OFFICER SERVICE PERSONNEL H4 Present system status H1 Perform monthly test...
Page 24: User Level 2A
8.1.2. USER LEVEL 2A After the door has been opened with the fire brigade key ("Door open" symbol in the symbol area), the user / fire brigade personnel have access to the following push buttons: 26) Reset 27) Silence alarm devices 28) Silence buzzer 8.1.3.
Page 25: User Level 2C
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 8.1.4. USER LEVEL 2C After the door has been opened with the fire brigade key ("Door open" symbol in the symbol area), you have access to level 2A and after log on as “Building officer” (level 2C), access to the following menus:...
Page 26: User Level 3A
ACCESS LEVEL 3B Used by Service / maintenance / commissioning engineers when a PC (i.e. EBLWin) is to be connected to EBL512 G3 for backup (upload), download of site specific data (SSD) and/or download of software. EBLWin require an EBLWin key (5094) to be plugged in the PC.
Page 27: Technical Number
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 9. TECHNICAL NUMBER The technical number, NNNNNN, is used when programming all units connected to the COM loops. Technical number is also used to identify which unit has generated a fault.
Page 28: Presentation Number
10. PRESENTATION NUMBER For each fire alarm point / input / zone, a presentation number, NNN-NN, has to be programmed. The presentation number is shown in the c.i.e. display and the external display units, to identify the point / zone activating fire alarm. It is also used to disable / re-enable fire alarm points / zones and as trigger conditions in control expressions to activate programma- ble outputs.
Page 29: Silence Alarm Devices
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 11. SILENCE ALARM DEVICES In the control unit front (the FBP part) there is a push button "Silence alarm devices". (No.27, see reference on page 14). 5.3. DETAILED DESCRIPTION OF THE FRONT When the alarm devices are activated (sounding) and the push button "Silence alarm devices"...
Page 30: Disable Or Re-Enable Alarm Devices
12. DISABLE OR RE-ENABLE ALARM DEVICES Outputs programmed for sounders can be collectively disabled for all control units during Fire alarm or Alert Annunciation alarm. This is done via menu H2/B4. The disablement is indicated by LED Fault / Disablements "General disablements" and "Alarm devic- es", which are steady ON.
Page 31: Silence Buzzer
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 13. SILENCE BUZZER The buzzer in the control unit will sound for: • Fire alarm (0.4 / 0.4 sec.) • Co-incidence alarm (2-zone or 2-unit dependent fire alarm): When only one zone or one zone / address (alarm point) is in alarm status (0.8 / 5 sec.)
Page 32: Disable Or Re-Enable Output
14. DISABLE OR RE-ENABLE OUTPUT All control outputs (except outputs of type “Alarm devices” and "Alarm devices for evacuation") can via menu H2/B2, be individually disabled: • Loop unit xxxxxx output x • Control unit xx Sx • Control unit xx Rx •...
Page 33: Disable Or Re-Enable Control Outputs
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 15. DISABLE OR RE-ENABLE CONTROL OUTPUTS All control outputs programmed as type: • Control (general) • Ventilation (Fire ventilation) • Extinguishing • Interlocking … can via menu H2/B3 be collectively disabled for a specified control unit or all control units. This is indicated by LED Fault / Dis- ablements "General disablements".
Page 34: Evacuate
When the soft key "Evacuate" is pressed, all outputs that are programmed for sounders (type "Alarm devices" and "Alarm devices for evacuation"), will be collectively turned ON (steady). This is indicated in the LCD: EBL512 G3 Evacuate in progress yyyy-mm-dd hh:mm Alternatively, the same is the result when an input programmed as “Evacuate”...
Page 35: Open Door
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 17. OPEN DOOR A special key is used to open the control unit door to get access to the front / system. If any door in the system is open the following symbol is shown in the c.i.e display’s symbol area: See also section on page 97.
Page 36: Alarm
Any programmable input can also be used to activate a pre-warning, e.g. for a High Sensitivity Smoke Detector system. Aspirating smoke detector Aspect Lazeer (AE2010L-P) programmed for Detection type "And with pre-warning" will activate a pre-warning for "alarm" from one detection area only. See EBL512 G3 Planning instructions for the system.
Page 37 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS IN CASE OF A PRE-WARNING, THE FOLLOWING HAPPENS: • The buzzer in the c.i.e. sounds 0.8 sec. each 5th sec. (0.8 / 5 sec.). • Outputs programmed for pre-warning are activated.
Page 38: Fire Alarm
18.1.2. FIRE ALARM The system can handle up to 15360 fire alarms but only 512 fire alarms can be shown in the c.i.e. display. If more than 512 fire alarms are activated, no more fire alarms will be shown until one or more of the first 512 fire alarms are reset. Normally all fire alarms will be presented in all control units (default) but it is possible to have Selective alarm presentation, i.e.
Page 39 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS MORE THAN ONE ALARM POINT ACTIVATING FIRE ALARM. Example; fire alarm in zone 002, address 03 (within zone 002) and nine other fire alarms (of which the latest alarm is 003-11) in four...
Page 40 ENTERING THE MENUS DURING FIRE ALARM By pressing the soft key "Menu" during fire alarm, you will get access to the menu system See chapter on page 22. 7. ACCESS Access code is required. In this case a part of the display's alarm window will be temporarily suppressed to permit the display of the menu system.
Page 41 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS TEST MODE ALARM Regarding Test mode, see chapter on page 87 and 27. PERFORM MONTHLY TEST (H1) 33. PERFORM ZONE TEST (TEST MODE) on page 114. (H7) When an alarm point in a zone set in test mode is tested, it is presented in the display as a fire alarm but with the information "Test mode"...
Page 42: Heavy Smoke Alarm / Heavy Heat Alarm
An analog detector can activate a heavy smoke / heat alarm for a higher alarm level than the normal fire alarm level, i.e. a normal fire alarm is already activated by a detector activating a heavy smoke / heat alarm. See EBL512 G3 Planning Instructions for the system.
Page 43: Alert Annunciation Alarm (Aa Alarm)
The AA alarm has to be acknowledged within an acknowledge time and reset within an investigation time, otherwise the out- put(s) for routing equipment (fire brigade tx) will be activated. See EBL512 G3 Planning Instructions for more information regarding the AA function.
Page 44: Key Cabinet Alarm
18.1.5. KEY CABINET ALARM The fire brigade uses a key cabinet to store a key to the building. One programmable input per c.i.e. can be used to connect a key cabinet. A key cabinet alarm is like a normal fire alarm, i.e. outputs with trigger condition "General fire alarm" will be activated as well as outputs with trigger condition "Activated key cabinet"...
Page 45: Co-Incidence Alarm (2-Address / -Zone Dependence)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS KEY CABINET OPENED IN CONJUNCTION WITH A FIRE ALARM If a normal fire alarm already is activated in the c.i.e. the fire brigade personnel can open the key cabinet without activating any key cabinet alarm or fault.
Page 46: Delayed Alarm
18.1.7. DELAYED ALARM Delayed alarm is an option that has to be enabled (via EBLWin) for the alarm point respectively. The delay time (0-255 sec.) is, for the whole system, set via EBLWin (System Properties, page 1). The delay time will be added at the end of the alarm algorithm when a fire alarm normally would have been activated.
Page 47: Local Alarm Acknowledgement (Laa)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 18.1.8. LOCAL ALARM ACKNOWLEDGEMENT (LAA) One or more Local Alarm Acknowledgement Units are used in the system. See Technical description MEW01838 for more information. During the Acknowledgement Period (10-120 sec.), the following information (a list if many) is shown in the c.i.e. display:...
Page 48: Quiet Alarm
18.1.9. QUIET ALARM One or more smoke detectors, via EBLWin programmed for Quiet alarm, have passed the fire alarm level. Quiet alarm is used for activating outputs based on smoke detected by a smoke detector without activating fire alarm in the system. INDICATIONS AND ACTIONS: Detector LEDs are turned on (i.e.
Page 49: Alarm Source
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 18.2. ALARM SOURCE An alarm point can activate a fire alarm based on detection of smoke, heat, or multi. A Manual call point can be used to manually activate a fire alarm.
Page 50: Alarm Reset
19. ALARM RESET 19.1. PRE-WARNING RESET Pre-warning is automatically reset. 19.2. FIRE ALARM RESET The detectors having activated fire alarm shall, after reset, be inspected, tested and replaced when re- quired. One of the following alarm reset alternatives is valid. This is selected via EBLWin. "All" is default. 19.2.1.
Page 51: Single
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 19.2.2. SINGLE Each fire alarm (alarm point / zone) has to be reset one by one. This function is available only if it is set in EBLWin. Press "Reset" to reset the fire alarm currently shown in the middle of the display with large digits.
Page 52: Single With Automatic Disablement
19.5. ALERT ANNUNCIATION Regarding the function, see section on page 43 and EBL512 G3 Planning 18.1.4. ALERT ANNUNCIATION ALARM (AA ALARM) Instructions, chapter "Alert annunciation". Reset of the AA alarm(s) can be done via push button "Reset" on a display unit 5054 or in the c.i.e.
Page 53: Key Cabinet Alarm Reset
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 19.6. KEY CABINET ALARM RESET A key cabinet alarm has to be reset like the normal fire alarms. After reset a fault message is shown in the display to inform the user that the key cabinet has been opened.
Page 54: Fault
20. FAULT All faults are delayed in order not to generate any unnecessarily faults, for example. for COM loop and zone line input faults the delay time is approx. 45 seconds. Some units may also have an internal delay time, which makes the delay time even longer, for example the Multipurpose I/O unit 4461 has an internal delay time of 30 seconds, which results in 45+30=75 seconds delay time in total.
Page 55 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS • In the c.i.e. display up to three fault messages can be shown simultaneously. In the display, down to the left, is displayed the number of faults. • If a fault has been corrected (serviced) before it has been acknowledged, the status information is "/Serviced", see above.
Page 56: Fault Messages
21. FAULT MESSAGES Below follows a list of all fault messages, in alphabetical order. There is also an explanation to each fault. Checksum fault in downloaded data. Control unit will now restart A fault in the downloaded Site Specific Data (SSD). After the restart a new fault will be generated: FAULT: Site Specific Data (SSD), control unit xx.
Page 57 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS FAULT: 24V for external equipment output 1 (F9), CU xx xx = 00-29. Check fuse F9 on the main board in control unit no. xx. Fuse: T1.6AH 250V. This 24V output, together with the other 24V outputs for external equipment (2-4), are also protected by an auto-resettable fuse PTC1 (max 3.15A).
Page 58 FAULT: Alert annunciation unit xx, Channel x, CU xx 5054 (Alert Annunciation Unit - AAU.) The AAU unit xx, connected to channel x, control unit no. xx, is programmed as another type in the SSD or a fault in the unit. FAULT: Alert annunciation unit xx, control unit xx 5054 (Alert Annunciation Unit - AAU.)
Page 59 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS FAULT: Battery zone xxx address xx, technical number xxxxxx Valid for the wireless units 4611 and 4614. The battery voltage is < 2.8 V. The batteries have to be replaced.
Page 60 If there are several breaks on the loop the message shows the last isolator before the break in the A-direction (incl. the following isolator). There will also be a "FAULT: No reply ….." message for each unit that EBL512 G3 cannot find and "FAULT: Multiple faults …".
Page 61 The fault is to be found in the extinguishing system, which has a fault output connected to a programmable supervised input in the EBL512 G3 system, in control unit no. xx. Also check the input connections. There will also be an additional information text in the display: Extinguishing fault.
Page 62 The fault is to be found in the Fault warning routing equipment. A routing equipment fault output is connected to a programmable supervised input in the EBL512 G3 system, in control unit no. xx. Check the input connections as well. (Normally used for German routing equipment connected to an expansion board 4583).
Page 63 AAA / point PP. FAULT: Internal short circuit, loop x, CU xx Short-circuit on the connection (ribbon cable) to or between the expansion boards (458x) in the control unit xx (EBL512 G3). FAULT: Key cabinet, control unit xx The key cabinet has been opened without a prior fire alarm (i.e.
Page 64 FAULT: Loop unit, technical number xxxxxx The unit (e.g. a customized unit) is not all right, i.e. the unit is out of order / faulty. The unit has to be replaced. FAULT: Loop unit zone: xxx address: xx technical number xxxxxx The unit is not all right, i.e.
Page 65 FAULT: Mains, external power supply, control unit xx This is valid for external power supply equipment, which has a fault output connected to a programmable input in the EBL512 G3 system. The fault is activated 1-300 minutes after the input is activated.
Page 66 FAULT: Mains, technical number xxxxxx 3366 / 3364 This is valid for the external power supply unit 3366 and the addressable 2 voltage outputs unit 3364, connected on the COM loop. The fault is activated after 1-300 minutes after: • Loss of mains, i.e.
Page 67 Valid for the 8 zones exp. board 4580, the 8 relays exp. board 4581 and the Inputs and outputs exp. board 4583, mounted in the control unit no. xx. EBL512 G3 cannot communicate with the board. Check / change the address. Check the cables / connections.
Page 68 FAULT: No reply expansion board x loop x control unit xx This is valid for the I/O Matrix board (4582) no. x, connected on COM loop x in the control unit no. xx. • Check the board's address, i.e. the I/O Matrix board no. (Jumpers JP1, JP2 and JP3 on the board). •...
Page 69 Check cables, connections, etc. This could also mean a faulty 5040 board in either of the two control units listed. FAULT: Printer, control unit xx This is valid for an EBL512 G3, type 5000 with printer. Control unit no. xx. •...
Page 70 FAULT: Short circ. tech addr nnn <-> nnn, [sub-loop x], loop x, CU xx Tech addr nnn <-> nnn describes between which Short Circuit Isolators the short-circuit is located. nnn = Technical address for short circuit isolator. A & B is the built-in isolator in the EBL512 G3 c.i.e. A-direction and B-direction respectively.
Page 71 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS FAULT: Site specific data (SSD) control unit xx The Site Specific Data (SSD) in control unit no. xx is not downloaded correctly (a checksum fault, etc.). A new SSD download (via EBLWin) is required.
Page 72 FAULT: SSD mismatch, General Control Panel xx Channel x, CU xx The SSD (Site Specific Data) downloaded in the General control panel doesn't match the SSD downloaded in the control unit.. A new SSD download (via EBLWin) must be performed in both General control panel and the control unit. FAULT: Supervised input x expansion board x, control unit xx A fault on the supervised input x on the expansion board 4583 with address x, in control unit no.
Page 73 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS Supervised (EN54-13): x=0 (S0): Short circuit/break on the connected cable/ equipment x=1 (S1): Short circuit/break on the connected cable/ equipment x=2 (S2): Short circuit/break on the connected cable/ equipment x=3 (S3): Short circuit/break on the connected cable/ equipment Fuse T500mA L 250V •...
Page 74 FAULT: Temperature sensor, control unit xx The sensor is not correctly connected, is faulty, or is missing. FAULT: Wrong connections, primary network, detected by CU xx The order of the control units in the primary network ring doesn't match the order specified in the SSD data. Check cables and the SSD data programming.
Page 75 EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS FAULT: Wrong type of unit zone: xxx address: xx technical number xxxxxx Check the type of unit, which should be the same as programmed via EBLWin. FAULT: Wrong type of unit zone: xxx...
Page 76: Fault Acknowledge
22. FAULT ACKNOWLEDGE The LEDs Routing equipment "Fault tx activated" and Fault / Disablements "General fault" are turned on. This is indicating that output for routing equipment (Fault tx) is activated. (LEDs Fault / Disablements "Alarm devices", "System fault" and/or Fault / Dis- ablements "Fire brigade tx"...
Page 77: Commissioning
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 23. COMMISSIONING Before you connect the power supply to a control unit, all other cable connections shall be made. Check once more that they are correct. A tip! Measure the resistance of each loop wire (L & C respectively) before turning on the power. Check that the L-wire (SA) that goes out on terminal J5:1 comes back at terminal J5:3 and so on.
Page 78: Control Units In A Network
23.2. CONTROL UNITS IN A NETWORK The EBL512 G3 system can be build up as a single TLON Network or as a redundant network, which means two networks. In the single TLON Network, one TLON connection board (5090) has to be plugged in each control unit.
Page 79: Add A Control Unit Into A Network
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS TLON NETWORK INSTALLATION (SINGLE) a) Create a project in the PC program TLON Manager. b) Connect a PC to the modular connector "J10" (Network no. 0) in a control unit. Open the project in TLON Manager and install (download) the project.
Page 80: Make Two Networks One
23.4. MAKE TWO NETWORKS ONE a) Make sure the system properties is the same in the two systems. b) Make sure that no presentation numbers in the systems are the same as another. c) Choose one of the systems as starting point, for example the largest system, and add the control units and all other units from the other system.
Page 81: Upgrade Number Of Alarm Points
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 24. UPGRADE NUMBER OF ALARM POINTS All EBL512 G3 settings are normally factory downloaded before delivery. It is however, on site possible to upgrade the maximum number of alarm points (128 → 256 → 512).
Page 82: Restart
25.1. SAFE SHUT DOWN Safe shut down of control unit via menu H8/S6 will save the SSW data in a Flash ROM. in EBL512 G3. Before the first "Safe shut down" this memory is empty. After each "Safe shut down" the latest SSW data is saved. (Safe shut down will not save the week average sensor values) a) Activate safe shut down via menu H8/S5.
Page 83: Restart Table
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 25.2. RESTART TABLE Here follows a table describing the different reset alternatives and how the data respectively is affected: ACTION DATA deleted DATA not deleted RESTART CODE Power down and then power up again.
Page 84: During Restart
25.3. DURING RESTART During the "restart", no fire alarm can be activated and the following is shown in the display: And after a few seconds (if not, see section on page 85): 25.3.1. MEMORY FAULT Booting… A fault will be generated and the following text message will be shown in the display and the buzzer will sound: FAULT: Restart control unit nn, code xx, address yyyyyy Regarding code xx and address yyyyyy, see section...
Page 85: Memory Fault
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 25.3.1. MEMORY FAULT In case of a fault in the main board S/W (system program) or the MMI board S/W, the following fault message might be shown: FAULT: Checksum system program, control unit xx...
Page 86: Menus
26. MENUS The following ten (10) chapters describe the menus in the c.i.e. and the procedures to use them. There are different access levels for different menus. See chapter on page 23. 8. USER LEVELS For general information on navigation in the menu system, see section on page 22.
Page 87: Perform Monthly Test (H1)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 27. PERFORM MONTHLY TEST (H1) The control unit and the installation shall be tested on a regular basis. If one twelfth of the alarm points are tested each month, the whole installation will be tested after one year. In test mode, only the alarm points are tested and no outputs (sounders) will be activated during the test.
Page 88 The zone(s) will stay in test mode until the test mode is ended. The test mode is ended in this menu or automatically one hour after the latest test alarm. This is valid for each zone respectively. You will be automatically logged out 15 minutes after the latest "action" (using of any key) but the zone(s) will stay in test mode until the test mode is ended.
Page 89: Disable Or Re-Enable (H2)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 28. DISABLE OR RE-ENABLE (H2) a) Log on to the c.i.e. b) Navigate to menu H2. c) Press . A sub menu list (B1 – B6) will be displayed. A whole zone, one or more alarm points within a zone and/or control outputs can be disabled via menus H2/B1-B2. This function can be used for temporary disablement (e.g.
Page 90: Zone Or Zone/Address (H2/B1)
28.1. ZONE OR ZONE/ADDRESS (H2/B1) When a whole zone is disabled, all alarm points within the zone will be disabled except the addressable manual call points. Alarm points can be individually disabled. DISABLE: a) Log on to the c.i.e. b) Navigate to menu B1 c) Press the soft key to toggle between: Change type of disablement...
Page 91: Output (H2/B2)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 28.2. OUTPUT (H2/B2) All programmable outputs in the c.i.e. and outputs in units connected to the COM loops (except outputs of type "Alarm device" or "Alarm device for evacuation") can be individually disabled.
Page 92: Output Type (H2/B3)
28.3. OUTPUT TYPE (H2/B3) Via menu B3 outputs of the same type can be collectively disabled in a selected control unit, or in all control units. Disabled output will stay in (or return to) the normal condition for the output respectively. Disabled outputs are listed in menu H4/U1 from which it is also possible to get a print-out.
Page 93: Alarm Devices (H2/B4)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 28.4. ALARM DEVICES (H2/B4) All outputs of type "Alarm device" and "Alarm device for evacuation" can be collectively disabled. Disabled output will stay in (or return to) the normal condition for the output respectively.
Page 94: Alert Annunciation (H2/B6)
28.6. ALERT ANNUNCIATION (H2/B6) For alarm points / zones programmed for Alert Annunciation (via EBLWin) is normally the AA function enabled via a time channel, for example enabled daytime (during working hours) and disabled night time. As an alternative, the AA function can be continuously enabled (always on). Via this menu (H2/B6) it is possible to disable the AA function, i.e.
Page 95: Set Calendar And Clock (H3)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 29. SET CALENDAR AND CLOCK (H3) The RTC component has a capacitor as a backup power supply. Normally, date, day of the week and time only have to be set when the power is turned on the control unit for the first time.
Page 96: Present System Status (H4)
30. PRESENT SYSTEM STATUS (H4) If a printer is mounted (an option for control unit 5000), it is possible to get a print-out from some of the menus. In this case, the soft key "Print" shall be used. During printing "Print" will be replaced with "Abort printing". When "Abort printing" is pressed the soft key text immediately changes back to "Print"...
Page 97: Disablement By Time Channel (H4/U2)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 30.2. DISABLEMENT BY TIME CHANNEL (H4/U2) This is a static list of all disablements by time channels in the system. The list has up to four items per page. Indicated by LED "General disablements".
Page 98: Sensor Values (H4/U4)
30.4. SENSOR VALUES (H4/U4) Information on heat, smoke or multi detector sensor values. a) Log on to the c.i.e. b) Navigate to menu U4. c) Write the technical number for a specific sensor or press to start as from sensor 000001. If there are no sensors (analog detectors) when is pressed, the list view will not open.
Page 99: Explanation To The Sensor Values
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 30.4.1. EXPLANATION TO THE SENSOR VALUES Momentary: Momentary value in this menu will be updated after every detector polling, approx. every 6th second. Weekly in NORMAL mode: The very first week average sensor value for the 430x and 440x detectors in NORMAL mode is calculated within 2½...
Page 100: Sensors Activating Service Signal (H4/U5)
30.5. SENSORS ACTIVATING SERVICE SIGNAL (H4/U5) Menu H4/U5 is a list of the sensor(s) having activated service signal. When service signal is generated in the system, following symbol is shown in the display's symbol area: Regarding the service signal levels, see Planning Instructions, section "Service signal". Regarding Lifetime limit service signal, see Planning Instructions.
Page 101: Event Log (H4/U7)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 30.7. EVENT LOG (H4/U7) Three event logs (3 x 999 events) are available: • Alarm log (alarm events, for example fire alarm, fire alarm reset, and so on) • Interlocking log (interlocking events only) •...
Page 102: Information (H4/U8)
30.8. INFORMATION (H4/U8) This menu can be used to show the following information for the specific control unit you currently use: Main board version: The S/W (software / firmware / system program) version downloaded to the Main board. MMI board version: The S/W (software / firmware / system program) version downloaded to the MMI board. Alarm counter: The alarm counter is increased with "1"...
Page 103: Service (H5)
(alarm texts) shown in the display in the control unit and Display units. To be able to log on to an EBL512 G3 c.i.e. via a PC and EBLWin, the PC has to be provided with an EBLWin key (5094).
Page 104: Calibration Of Supervised Outputs (H5/A1)
31.1. CALIBRATION OF SUPERVISED OUTPUTS (H5/A1) Supervised (monitored) outputs: The voltage outputs (S0-S3) in each control unit. The voltage outputs (VO0-VO1) in the COM loop output unit 3364. The voltage outputs (0-2) on the I/O exp. boards 4583. When all alarm devices have been connected, including required end-of-line devices and when the SSD is downloaded, a calibra- tion has to be done.
Page 105: Sensitive Fault Detection Mode (H5/A2)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 31.2. SENSITIVE FAULT DETECTION MODE (H5/A2) To increase the possibilities to detect faults during the commissioning, it is possible to use the "Sensitive fault detection mode". The time delay for each fault will then be reduced, i.e. you might find some faults now instead of later. The "Sensitive fault detection mode"...
Page 106: Service Mode For Com-Loop (H5/A3)
(Since there is voltage on the loop, short circuit isolators will work normally.) It is recommended to do this check also when EBL512 G3 is power supplied via the backup battery only, since the battery voltage can be different (compared with the rectifier voltage) due to the battery condition, backup duration, etc.
Page 107: Display Current Consumption In Unit (H5/A4)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 31.4. DISPLAY CURRENT CONSUMPTION IN UNIT (H5/A4) POWER SUPPLY (CONTROL UNIT) Voltage: The 24V measured by the CPU on the main board. Corresponds to the output voltage at the power supply outputs on connector J3.
Page 108: Display Current Consumption On Com-Loop (H5/A5)
31.5. DISPLAY CURRENT CONSUMPTION ON COM-LOOP (H5/A5) The current consumption (an average value) for each COM loop can be displayed. a) Log on to the c.i.e. b) Navigate to menu A5. c) Write loop number and control unit number and press d) Please wait.
Page 109: Display Statistics For Communication (H5/A6)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 31.6. DISPLAY STATISTICS FOR COMMUNICATION (H5/A6) The statistics can be used during commissioning, service, and so on. Number of pollings is the number of pollings / "questions" sent out by the control unit to all the units connected on the COM loop.
Page 110: Activate Address Setting Mode For Du (H5/A7)
31.7. ACTIVATE ADDRESS SETTING MODE FOR DU (H5/A7) This function can be used by commissioning / service engineer to activate the address setting mode in the following Display Units connected to the c.i.e.: This can also be done via jumper "J4" inside the D.U. respectively. •...
Page 111: Setup Wireless Detectors (H5/A8)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 31.8. SETUP WIRELESS DETECTORS (H5/A8) This function can be used by commissioning / service engineer to set a Base station for wireless units (4620) to one of the following modes: Register - in order to register one or more wireless units 4611 / 4614 / 4645 to the Base station.
Page 112: Ssd Information (H5/A9)
31.9. SSD INFORMATION (H5/A9) SSD name: As written in the EBLWin dialog box "System Properties" (Name). Downloaded: Date and time when the SSD was downloaded. User name for the person who performed the SSD download. Computer: Computer name (if programmed) for the PC that was used for the SSD download. Domain: Domain (if programmed) for the PC that was used for the SSD download.
Page 113: Fault Acknowledge (H6)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 32. FAULT ACKNOWLEDGE (H6) Regarding fault indication, and so on., see chapter where all faults messages are listed. 20. FAULT 21. FAULT MESSAGES See also chapter 22. FAULT ACKNOWLEDGE All faults and the status / action are stored in the event log and can be listed, see section 30.7.
Page 114: Perform Zone Test (Test Mode) (H7)
33. PERFORM ZONE TEST (TEST MODE) (H7) Normally, zones are tested during the monthly test via menu H1. Via this menu (H7) it is also possible to perform the zone test. Up to 100 zones can be set in test mode. In test mode, only the alarm points are tested.
Page 115: During The Test
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 33.1. DURING THE TEST Perform the test as quickly as possible, since the output(s) for routing equipment (fire brigade tx) are disabled (also the parts of the zones in test mode, not visible for the test personnel, are disabled). In order to shorten the testing time, any time delay for the detectors / zones in test mode will be "disabled", i.e.
Page 116: Maintenance (H8)
34. MAINTENANCE (H8) Only authorised personnel have access to menu H8 and a password for level 3A (Service technician) is required. a) Log on to the c.i.e. b) Navigate to menu H8. c) Press . A sub menu list (S1 – S8) will be displayed. 34.1.
Page 117: Acknowledge Service Signal (H8/S2)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 34.2. ACKNOWLEDGE SERVICE SIGNAL (H8/S2) When SERVICE signal is generated in the system, following symbol is shown in the display's symbol area: See also section on page 100. 30.5. SENSORS ACTIVATING SERVICE SIGNAL (H4/U5) Sensor = analog smoke detector.
Page 118: Clear Weekly Average (H8/S3)
34.3. CLEAR WEEKLY AVERAGE (H8/S3) Valid only for 430x, 4400 and 4401 sensors in NORMAL mode: If a sensor (analog smoke detector) is replaced without having generated SERVICE signal, its week average sensor value has to be cleared and set to the default value (i.e. "1" = 0.1 %/m), other- wise the new / clean sensor will inherit the old sensor's value.
Page 119: Test Of Alarm Devices (H8/S4)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 34.4. TEST OF ALARM DEVICES (H8/S4) The programmable outputs of type "Alarm device" or "Alarm device for evacuation" can be collectively activated via this menu (H8/ S4), which makes it possible to test the alarm devices. This procedure includes Addressable siren 4477 and Addressable sounder base 4479 / 3379, wireless detector 4611, and all alarm devices 4480, 4481, 4482, 4487.
Page 120: Safe Shut Down Of Control Unit (H8/S5)
34.5. SAFE SHUT DOWN OF CONTROL UNIT (H8/S5) It's recommended to do a safe shut down of control unit before you power off a control unit, which means disconnecting it from 230 V AC and battery. Safe shut down will save the SSW in a Flash ROM and put the CPUs at rest. If safe shut down is not done, it might also generate a fault when you power up the control unit again: FAULT: Read/write site data (SSW), control unit xx").
Page 121: After Restart
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 34.5.1. AFTER RESTART After a restart, see chapter on page 82, there will always be two restart faults. The code will be 00 / 50 after Power 25. RESTART off / Power on restart and 03 / 53 after a countdown restart. Address 0. This fault must be acknowledged, see chapter 32.
Page 122: Activate Address In Alarm Mode (H8/S6)
34.6. ACTIVATE ADDRESS IN ALARM MODE (H8/S6) One alarm point (zone-address), not a whole zone, can be set in alarm. It will be presented as a fire alarm, the built-in LED in the alarm point (for example a detector) will be turned on and all outputs, standard and programmable, which would have been activat- ed by a normal fire alarm from the same alarm point will be activated.
Page 123: Synchronize The Control Units (H8/S7)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 34.7. SYNCHRONIZE THE CONTROL UNITS (H8/S7) After any control unit restart, synchronization will start automatically. Synchronization can also be started via EBLWin and via this menu (H8/S7). The control units must be synchronized when the following fault message is shown: FAULT: Control unit xx has wrong information.
Page 124: Activate / Reset Outputs (H8/S8)
34.8. ACTIVATE / RESET OUTPUTS (H8/S8) Via this menu, a loop unit output, control unit output and expansion board output can be activated and reset. Any output can be activated, which means the function can be tested. (Can also be done via EBLWin.) This is including Addressable siren 4477, Addressable sounder base 3379 / 4479, wireless detector 4611, light indicator 4383, and all alarm devices 4480, 4481, 4482, 4487.
Page 125: Interlocking Outputs And Inputs (H9)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 35. INTERLOCKING OUTPUTS AND INPUTS (H9) a) Log on to the c.i.e. b) Navigate to menu H9. c) Press . A sub menu list (C1 – C3) will be displayed.
Page 126: Activate / Deactivate Interlocking Output (H9/C2)
35.2. ACTIVATE / DEACTIVATE INTERLOCKING OUTPUT (H9/C2) The output in each interlocking combination (area / point) can be manually activated via this menu. The corresponding interlocking input will be "monitored" in the same way as if the output was activated by its control expression. The output in each interlocking combination (area / point) can be manually deactivated via this menu.
Page 127: Disable / Re-Enable Interlocking Output (H9/C3)
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 35.3. DISABLE / RE-ENABLE INTERLOCKING OUTPUT (H9/C3) Interlocking outputs (Type = Interlocking) can be individually disabled via this menu (and collectively via menu H2/B3). The "In- terlocking Combination" (Area / Point) is to be entered to disable the output. Up to 100 interlocking outputs can be disabled in the whole system.
Page 128: Change Password (H10)
36. CHANGE PASSWORD (H10) A password changed via menu H10 (+ H8/S5) will be valid until it is changed via menu H10 again or it is erased via EBLWin (menu Tools / Reset user passwords. a) Log on to the c.i.e. b) Navigate to menu H10.
Page 129: Replacing Tlon Board And Main Board
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 38. REPLACING TLON BOARD AND MAIN BOARD By the TLON network programming, some unique data will be stored in a memory on the 5090 TLON connection board and some will be stored in a memory on the main board.
Page 130: Battery Maintenance
39. BATTERY MAINTENANCE The batteries - 2 x 12 V, 28 Ah (for example Panasonic LC-P1228AP) – are placed inside the control unit. Larger batteries (≤ 65 Ah) must be placed outside the control unit, in a separate battery cabinet.
Page 131: How To Avoid Nuisance Fire Alarms
EBL512 G3 V. 3.0.X - FIRE ALARM SOLUTIONS OPERATING INSTRUCTIONS 40. HOW TO AVOID NUISANCE FIRE ALARMS We all realise, when life, buildings, production facilities, etc. shall be saved, it is of utmost importance that an initial fire is detected as soon as possible.
Page 132 LACK OF MAINTENANCE Smoke detectors (sensors) are influenced by their environment and become "dirty". In an analog system (like EBL512 G3) a Service signal is given when it is time to exchange the smoke detectors (sensors) to new ones. The alternative is to exchange detectors at given periods, to be on the safe side.
Page 133: Radioactive Radiation Source
41. RADIOACTIVE RADIATION SOURCE Today, Panasonic have no ionization smoke point detectors but old detectors connected to the EBL512 G3 installation might be smoke sensors / detectors of the ionization type. They contain a small radioactive radiation source, normally Americium 241.
Page 134 DOCUMENT NAME: OPERATING INSTRUCTIONS V. 3.0.0 DOCUMENT NUMBER: MEW02760 DATE OF ISSUE: 2022-03-07 REV: - DATE OF REVISION: - Panasonic Fire & Security Europe AB Jungmansgatan 12 SE-211 11 Malmö Tel: +46 (0)40 697 70 00 www.panasonic-fire-security.com...

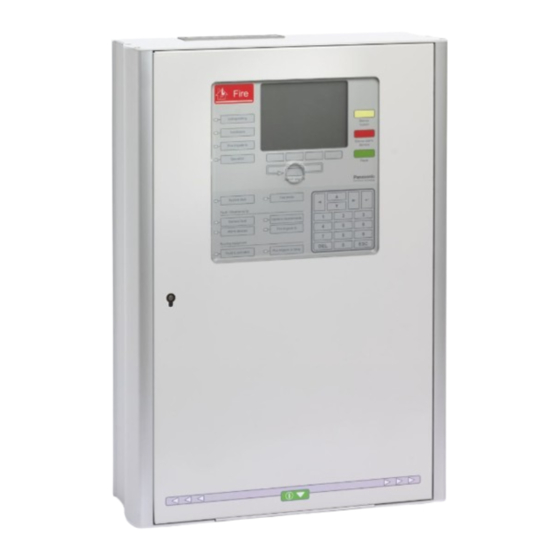

Panasonic EBL512 G3 Operating Instructions Manual

Quick Links

Related Manuals for Panasonic EBL512 G3

Summary of Contents for Panasonic EBL512 G3

Table of Contents
