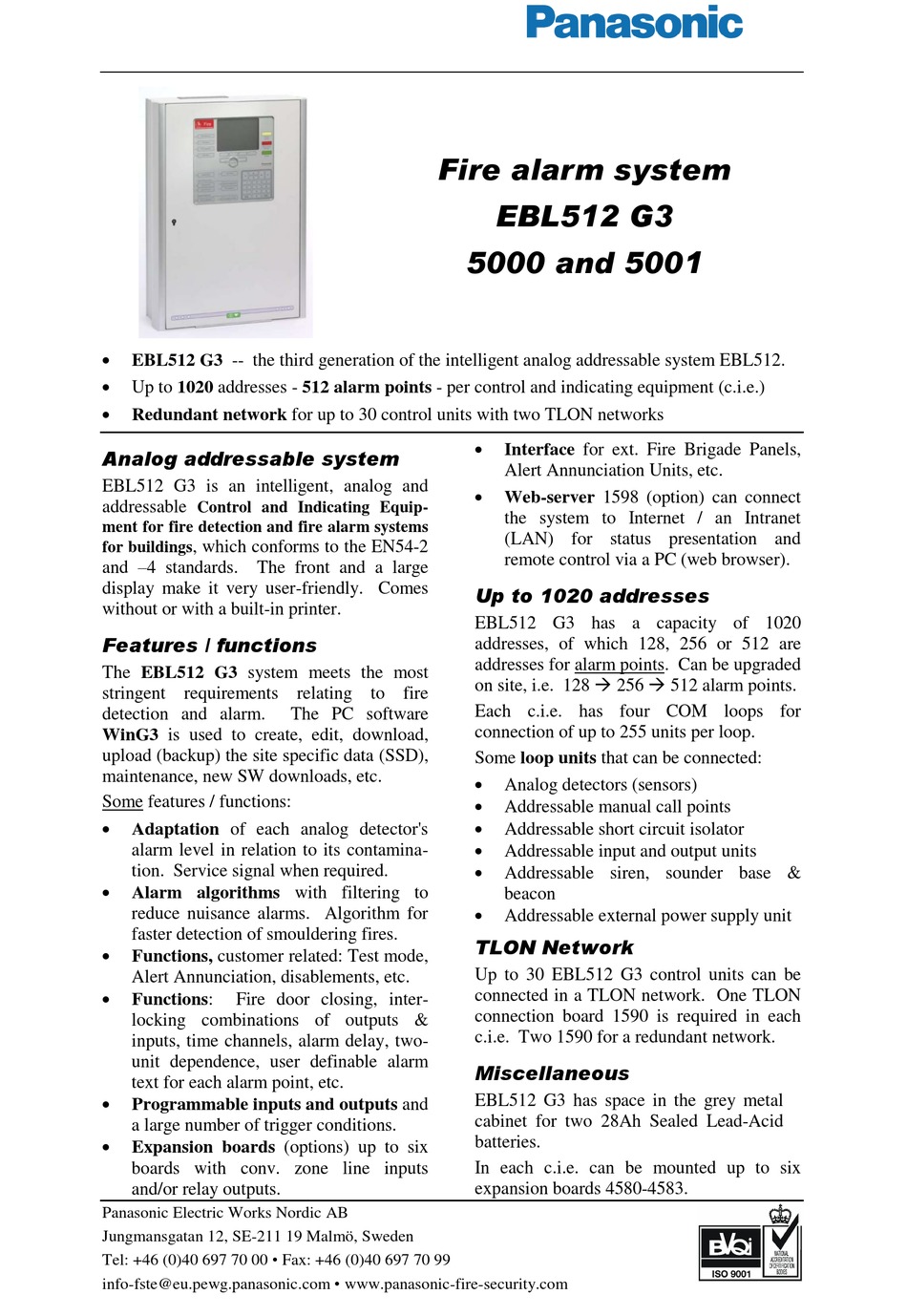

EBL512 G3 -- the third generation of the intelligent analog addressable system EBL512.

Up to 1020 addresses - 512 alarm points - per control and indicating equipment (c.i.e.)

Redundant network for up to 30 control units with two TLON networks
Analog addressable system
EBL512 G3 is an intelligent, analog and
addressable
Control and Indicating Equip-
ment for fire detection and fire alarm systems
, which conforms to the EN54-2
for buildings
and –4 standards. The front and a large
display make it very user-friendly. Comes
without or with a built-in printer.
Features / functions
The EBL512 G3 system meets the most
stringent requirements relating to fire
detection and alarm.
WinG3 is used to create, edit, download,
upload (backup) the site specific data (SSD),
maintenance, new SW downloads, etc.
Some features / functions:

Adaptation of each analog detector's
alarm level in relation to its contamina-
tion. Service signal when required.

Alarm algorithms with filtering to
reduce nuisance alarms. Algorithm for
faster detection of smouldering fires.

Functions, customer related: Test mode,
Alert Annunciation, disablements, etc.

Functions: Fire door closing, inter-
locking combinations of outputs &
inputs, time channels, alarm delay, two-
unit dependence, user definable alarm
text for each alarm point, etc.

Programmable inputs and outputs and
a large number of trigger conditions.

Expansion boards (options) up to six
boards with conv. zone line inputs
and/or relay outputs.
Panasonic Electric Works Nordic AB
Jungmansgatan 12, SE-211 19 Malmö, Sweden
Tel: +46 (0)40 697 70 00 • Fax: +46 (0)40 697 70 99
info-fste@eu.pewg.panasonic.com • www.panasonic-fire-security.com

Fire alarm system

The PC software
EBL512 G3
5000 and 5001

Interface for ext. Fire Brigade Panels,
Alert Annunciation Units, etc.

Web-server 1598 (option) can connect
the system to Internet / an Intranet
(LAN) for status presentation and
remote control via a PC (web browser).
Up to 1020 addresses
EBL512 G3 has a capacity of 1020
addresses, of which 128, 256 or 512 are
addresses for alarm points. Can be upgraded
on site, i.e. 128  256  512 alarm points.
Each c.i.e. has four COM loops for
connection of up to 255 units per loop.
Some loop units that can be connected:

Analog detectors (sensors)

Addressable manual call points

Addressable short circuit isolator

Addressable input and output units

Addressable siren, sounder base &
beacon

Addressable external power supply unit
TLON Network
Up to 30 EBL512 G3 control units can be
connected in a TLON network. One TLON
connection board 1590 is required in each
c.i.e. Two 1590 for a redundant network.
Miscellaneous
EBL512 G3 has space in the grey metal
cabinet for two 28Ah Sealed Lead-Acid
batteries.
In each c.i.e. can be mounted up to six
expansion boards 4580-4583.
