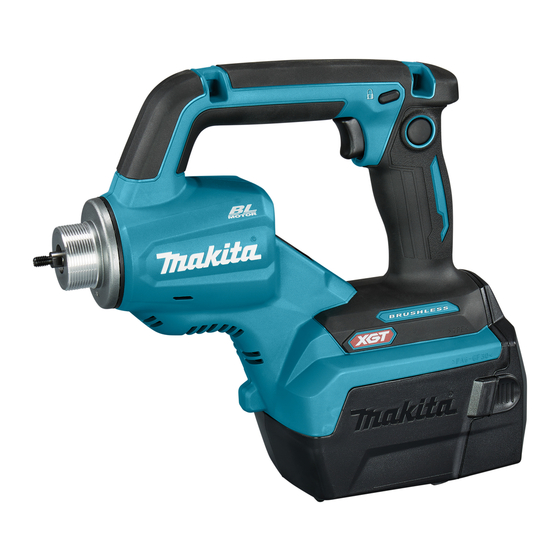

Makita VR001G Instruction Manual
Cordless concrete vibrator
Hide thumbs
Also See for VR001G:
- Instruction manual (89 pages) ,
- Instruction manual (17 pages) ,
- Instruction manual (87 pages)
Related Manuals for Makita VR001G
Summary of Contents for Makita VR001G
- Page 1 INSTRUCTION MANUAL Cordless Concrete Vibrator VR001G VR003G VR004G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: VR001G VR003G VR004G Vibrations per minute Normal mode 12,000 min Power mode 15,500 min Vibration head diameter ø32 mm ø38 mm * Supplied as optional accessories ø32 mm / ø38 mm Flexible shaft lengths 1.2 m / 2.4 m... -
Page 3: Safety Warnings
EN60745-2-12: use (taking account of all parts of the operating Model VR001G cycle such as the times when the tool is switched Sound pressure level (L ) : 80 dB (A) - Page 4 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
- Page 5 Battery tool use and care 10. Use a wet cloth or the like to carefully wipe off any wet concrete left on the tool after use. Extra Recharge only with the charger specified by care should be given to thorough cleaning of the manufacturer.
-
Page 6: Functional Description
Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum... -
Page 7: Installation
Slide an optional battery case into the tool. Open Insert a battery cartridge in place aligning its the case while pressing the buttons on sides of the tongue with the groove on the tool. If you can see the case. Then tighten the screws to secure it in place. red indicator as shown in the figure, it is not locked completely. - Page 8 For cord connected power source Pass the adapter plug and plug cord through the round hole in the battery case. Optional accessory Replace the standard equipped battery case with an optional battery case H before installation. Installation Open the battery case while pressing the buttons on sides of the battery case.
-
Page 9: Overload Protection
Uninstallation Indicator lamps Remaining capacity Open the battery case while pressing the buttons on sides of the battery case. Lighted Blinking Open the rubber sealing grommet in the battery 75% to 100% case. Make sure to squeeze the rubber sealing grommet out 50% to 75% of the round hole rim from inside the front cover of the case. - Page 10 Charge the battery(ies) or replace it/them with recharged battery(ies). Let the tool and battery(ies) cool down. If no improvement can be found by restoring protection system, then contact your local Makita Service Center. Switch action Fig.14 CAUTION: Before installing the battery car- ►...
-
Page 11: Electronic Function
Hold the drive shaft in the tool still using the NOTE: The mode you select will be saved automat- wrench provided. Then hand thread the end fitting of the ically when the tool is powered off. The tool restarts flexible core shaft onto the solid drive shaft in the tool. in the same mode as it previously used when turned on again. - Page 12 Installing shoulder strap Optional accessory WARNING: Always remove the shoulder strap from the tool while wearing portable power packs. Wearing multiple harnesses and straps may impair the chances to take the equipment off quickly in a case of emergency and result in personal injury. WARNING: Do not use the parts for attaching the shoulder strap for other purposes, such as...
-
Page 13: Operation
Effective leveling and removal of air OPERATION bubbles CAUTION: Put the shoulder strap on the Removal of the air bubbles is complete after you have shoulder, and hold the tool firmly with both worked the tool throughout each effective range, the hands. -
Page 14: Maintenance
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. OPTIONAL ACCESSORIES CAUTION:... - Page 16 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885974B220 www.makita.com 20230119...
