- Page 1 XTM404S XTM-WF400 OPERATOR MANUAL ISSUE 2...
- Page 2 Thank you and congratulations on choosing Parweld. This Owner’s Manual is designed to help you get the most out of your Parweld products. Please take time to read the Safety precautions. They will help you protect yourself against potential hazards in the workplace.
-
Page 3: Table Of Contents
Additional Welding Controls ........10 Fault Finding ..............10 Accessories ..............11 Drive Rolls ..............11 Torch Spares XP8 300A .........12 Torch Spares XP8 350A .........14 Gas Equipment ............16 EC Declaration of Conformity ........18 RoHS Compliance Declaration .......18 WEEE Statement ............19 Statement of Warranty ..........19 www.parweld.com... -
Page 4: Safety Precautions
Use only well-maintained equipment. Repair or replace damaged parts at once. Maintain unit according to manual. Wear a safety harness if working above floor level. Keep all panels and covers securely in place. Clamp work cable with good metal-to-metal contact to work piece or www.parweld.com... -
Page 5: Product Description
Argon flow regulator with cylinder pressure gauge and inlet hose, a Parweld MIG torch, and a 3.0m work cable with clamp. BUILDUP OF GAS can injure or kill. Digital meters display the actual welding voltage and amperage and Shut off shielding gas supply when not in use. -
Page 6: Technical Specifications

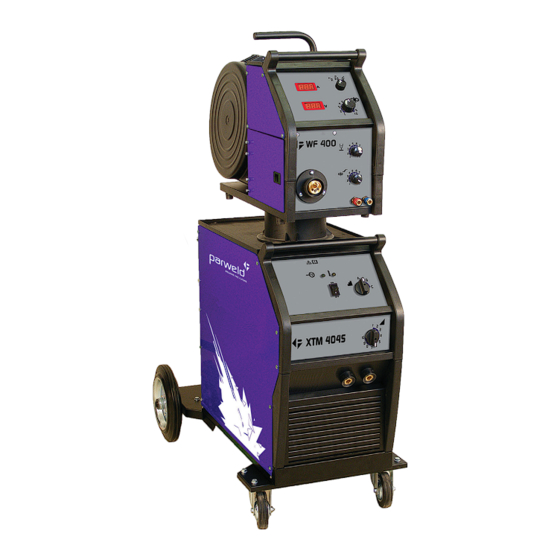

In the 4T The XTM404S is a separate type machine with the wire feed unit position a short press and release of the trigger will start the connected to the power supply by a 5m interconnecting cable. -
Page 7: Machine Front And Rear View
Welding current connector – from power source Wire speed adjustment Control connector – from power source Burn back time Gas input Motor ramp time Water cooling - to power source (optional) Welding voltage display Water cooling - from power source (optional) Welding current display www.parweld.com... -
Page 8: Installation
(+) polarity. This is the normal polarity for MIG welding. system Manually feed the wire from the wire reel and through the wire guide and then over the top of the wire feed rollers (ensure the pressure arms are in the raised position.) www.parweld.com... -
Page 9: Torch Installation
Reposition the adjustable pressure arms to there original position to apply pressure. Adjust pressure as necessary. The Parweld XTS recirculation equipment can be fitted with a fail- Note the pressure arm should be adjusted in order to give safe flow protection device to prevent overheating or meltdown. -
Page 10: Feeding Wire Electrode
(17). eye, head, and body protection. Inductance setting XTM404S. This allows 2 levels of inductance to Position wire over joint. The end of the wire may be lightly give the desired arc characteristics typically for low amperage with touching the work. -
Page 11: Accessories
Mild steel DR4V0810 DR4V1012 DR4V1216 Wire feed unit operates, but Insufficient drive roll pressure Stainless Steel DR4V0810 DR4V1012 DR4V1216 does not feed Incorrect drive rolls Aluminum DR4U0810 DR4U1012 DR4U1216 Excessive wire Flux cored DR4K0810 DR4K1012 DR4K1216 spool brake tension www.parweld.com... -
Page 12: Torch Spares Xp8 300A
8.2 TORCH SPARES XP8 300A Air Cooled MIG Welding Torch Rating: 300A, 8.7kW, Mixed Gas (80/20) @ 80% Duty Cycle, EN60974-7 .030-.045"/0 0.8mm to 1.2mm wires www.parweld.com... - Page 13 .030-.045”/0.8mm-1.2mm x 13ft/4m XP2024PC-12-50 Polyamide-Copper Liner .030-.045”/0.8mm-1.2mm x 16ft/5mt XP2024PS-12-30 Polyamide-Steel Liner .030-.045”/0.8mm-1.2mm x 10ft/3m XP2024PS-12-40 Polyamide-Steel Liner .030-.045”/0.8mm-1.2mm x 13ft/4m XP2024PS-12-50 Polyamide-Steel Liner .030-.045”/0.8mm-1.2mm x 16ft/5m Note: For flux core wire 1.6mm liner is recommended – Stock Code: XP2023-16-30 www.parweld.com...
-
Page 14: Torch Spares Xp8 350A
XP8 350A XP8 Mig Torch Packages Air Cooled MIG Welding Torch Rating: 350A, 10.5kW, Mixed Gas (80/20) @ 80% Duty Cycle, EN60974-7 .040- "/1.0mm to 1.6mm wires www.parweld.com... - Page 15 Polyamide – Steel Liner .030-.045”/0.8mm-1.2mm x 13ft/4m XP2024PS-12-50 Polyamide – Steel Liner .030-.045”/0.8mm-1.2mm x 16ft/5m XP3524PS-16-30 Polyamide – Steel Liner .045-.063”/1.2mm-1.6mm x 10ft/3m XP3524PS-16-40 Polyamide – Steel Liner .045-.063”/1.2mm-1.6mm x 13ft/4m XP3524PS-16-50 Polyamide – Steel Liner .045-.063”/1.2 mm-1.6mm x 16ft/5m www.parweld.com...
-
Page 16: Gas Equipment
" BSP inlet and outlet connections. Stock Code Description 706101 Flow Meter Mixed Gas 25 lpm (MIG) Gas Flow Tester • Designed to check gas flow at the front of Mig Torches. Stock Code Description 806001 Gas flow Tester www.parweld.com www.parweld.com... - Page 17 www.parweld.com...
-
Page 18: Ec Declaration Of Conformity
9.0 EC Declaration of Conformity Hereby we declare that the machines as stated below Type: XTM404S Complies with Low Voltage Directive 2014/35/EEC EMC Directive 2014/35/EEC European standard: EN/IEC 60974-1 – EN 60974-10 This is to certify that the tested sample is in conformity with all provisions of the above detailed EU directives and product standards. -
Page 19: Weee Statement
Parweld is registered with a compliance scheme Official registration number is WEE/FD0255QV When your equipment reaches the end of its service life you should return it to Parweld where it will be reconditioned or processed for recycling. 9.3 Statement of Warranty Limited Warranty: Parweld Ltd, hereafter, “Parweld”... - Page 20 Parweld Limited Bewdley Business Park Long Bank Bewdley Worcestershire England DY12 2TZ Tel. +44 1299 266800 www.parweld.com info@parweld.co.uk...
