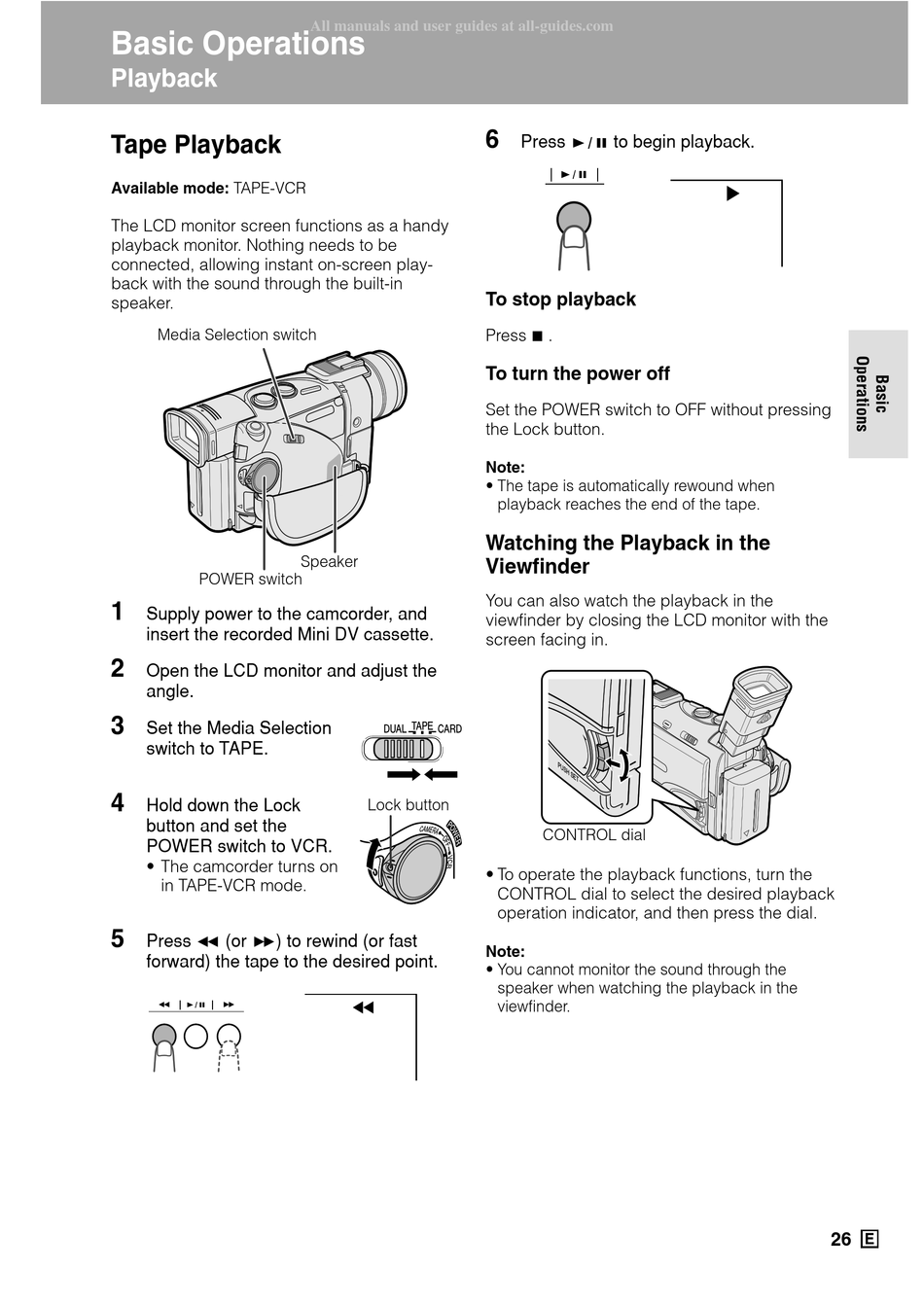

Playback Tape Playback - Sharp VL-ME10E Operating Manual

Basic Operations
Playback
Tape Playback
Available mode: TAPE-VCR
The LCD monitor screen functions as a handy
playback monitor. Nothing needs to be
connected, allowing instant on-screen play-
back with the sound through the built-in
speaker.
Media Selection switch
POWER switch
1
Supply power to the camcorder, and
insert the recorded Mini DV cassette.
2
Open the LCD monitor and adjust the
angle.
3
Set the Media Selection
switch to TAPE.
4
Hold down the Lock
button and set the
POWER switch to VCR.
• The camcorder turns on
in TAPE-VCR mode.
5
Press e (or r) to rewind (or fast
forward) the tape to the desired point.
e y r
All manuals and user guides at all-guides.com
Speaker
Lock button
6
Press y to begin playback.
y
To stop playback
Pressd.
To turn the power off
Set the POWER switch to OFF without pressing
the Lock button.
Note:
• The tape is automatically rewound when
playback reaches the end of the tape.
Watching the Playback in the
Viewfinder
You can also watch the playback in the
viewfinder by closing the LCD monitor with the
screen facing in.
CONTROL dial
• To operate the playback functions, turn the
CONTROL dial to select the desired playback
operation indicator, and then press the dial.
Note:
• You cannot monitor the sound through the
speaker when watching the playback in the
viewfinder.
26
