Technical Data
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 5 metres
SWITCH CAPACITY:
10 Amps
Incandescent lamps: 1500W max (at 230V)
TERMINAL CAPACITY: 2 x 1.5mm or 1 x 2.5mm
WEIGHT: 148g
TIME DELAY: 5, 10 or 15 mins
POWER-UP CONDITION: select ON or OFF
DETECTOR RANGE: adjustable - see installation notes
RANGE REDUCTION: adjustable - see installation notes
ULTRASONIC FREQUENCY: 40kHz
PHOTOCELL: adjustable 50 to 5000 lux
SEMI-FLUSH FIXING: requires 76mm hole to be drilled in ceiling tile
IP RATING: 3X
o
o
OPERATING TEMPERATURE: 0 C to 40 C
Honeywell Ex-Or
St. Marks Court, North Street,
Horsham, West Sussex, RH12 1BW, UK
Tel:+44 (0)1942 719229
Fax: +44 (0)1942 508753
Email: technicalsales.ex-
or@honeywell.com www.ex-or.com
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
W4006N
by Honeywell

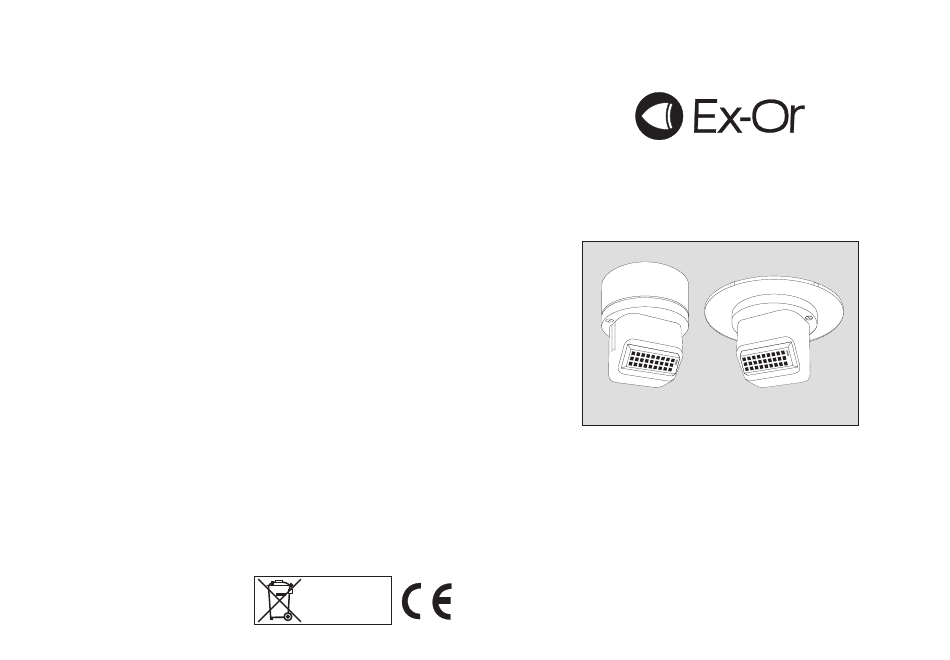

Standard Series LightSpot

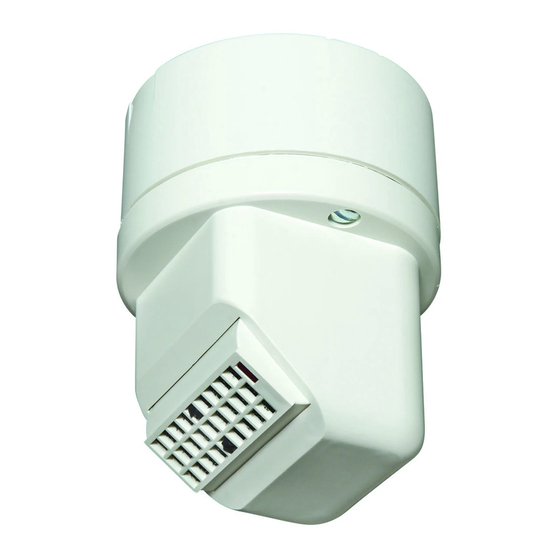

MS1500P & MS1500PF
MS1500P
MS1500PF
Installation and Commissioning
Instructions
