LightSpot Digital Luminaire Controllers
MSM2000A - Control Module
DHW/DHS - Mini Detector Head
for use with Analogue 1-10V and Fixed-Output
Electronic High-frequency Ballasts
Installation and Commissioning
Instructions
Note: QuickSet Pro required for commissioning
Advertisement
Related Manuals for Honeywell Ex-Or MSM2000A
Summary of Contents for Honeywell Ex-Or MSM2000A

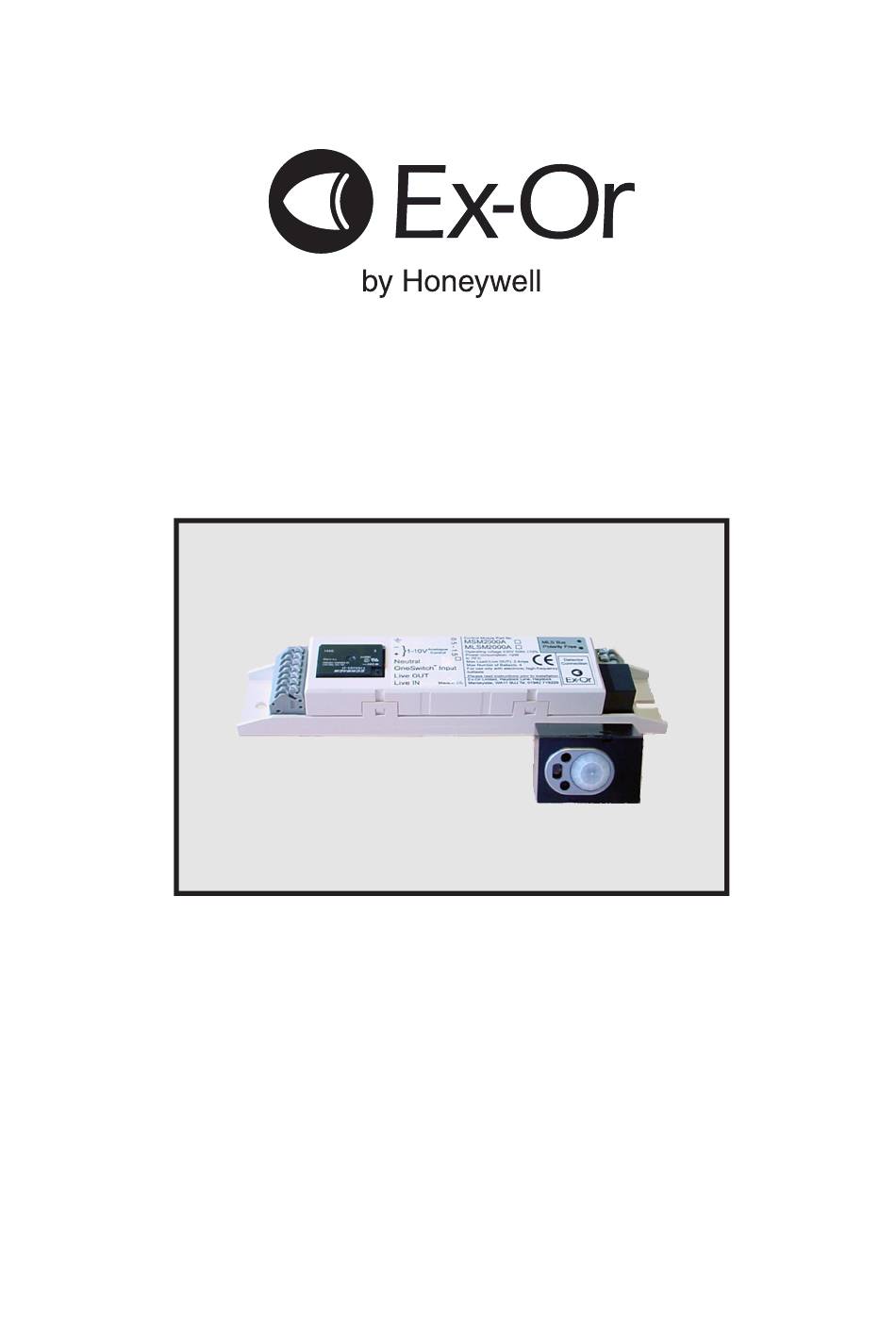

- Page 1 LightSpot Digital Luminaire Controllers MSM2000A - Control Module DHW/DHS - Mini Detector Head for use with Analogue 1-10V and Fixed-Output Electronic High-frequency Ballasts Installation and Commissioning Instructions Note: QuickSet Pro required for commissioning...
- Page 2 Electrical Connections 32mm 800mm SIDE VIEW TOP VIEW 21.5mm Flying Lead RJ12 Plug Mini Detector Head 18.8mm 17.5mm 21.3mm 21.5mm 14.9mm Analogue 1-10V Control Module Part No MSM2000A Control Module Analogue 1-10V (Height = 22mm) Operating voltage 230V 50Hz 10% Control Power consumption: <2W tc 70 C...
- Page 3 Advanced Features Photocell The MSM2000A incorporates a photocell which can be configured to operate in three different modes, selectable from within the product’s menus on the QuickSet Pro Programmer. These modes are ‘regulating’, passive’ and ‘none’. Note that in any mode of operation, the photocell affects the light output only when the Entry Scene is set to Scene 1. Setting the regulating photocell This product is intended for use with high frequency regulating ballasts with analogue 1-10V control inputs.
- Page 4 Flame retardant PC/ABS (MSM2000A) IP RATING: 20 DIMENSIONS: See diagrams overleaf WEIGHT: 32g incl. 0.8m cable (DHW/DHS) 48g (MSM2000A) Honeywell Ex-Or Albery House, Springfield Road, At the end of their useful life Horsham, West Sussex RH12 2PQ the packaging and product...
