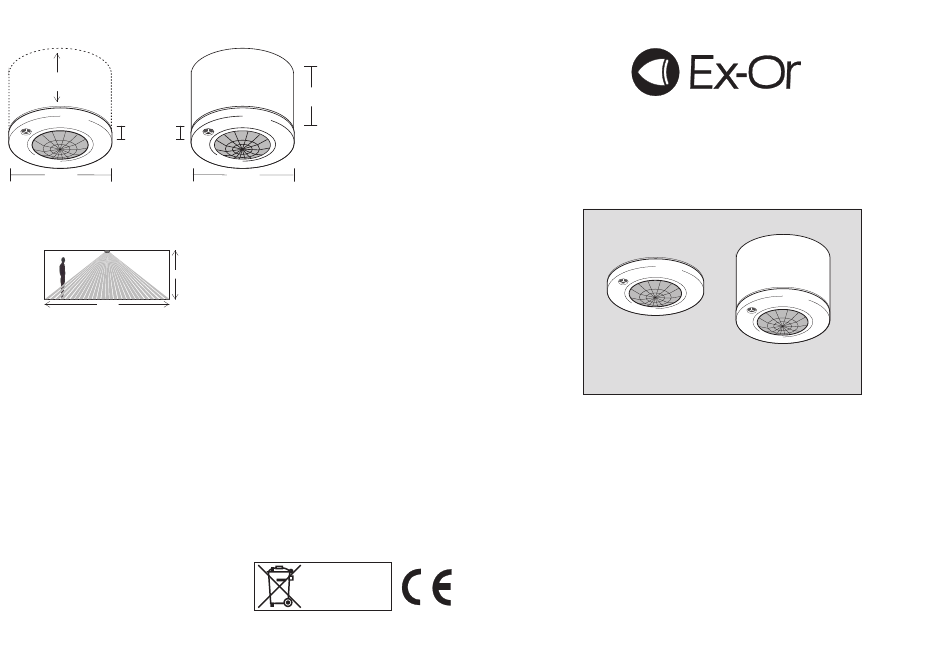

Dimensions
Flush Version
62mm
deep behind ceiling
Flange:
10mm deep
100mm
Technical Data
MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3 metres
RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height
2.5m
6.0m
OPERATING VOLTAGE: 230V 50Hz (UK & Europe)
RECOMMENDED CIRCUIT PROTECTION: 10 Amps
MAXIMUM LOAD: 6 Amps resistive or fluorescent
TERMINAL CAPACITY: 2 x 2.5mm
2
PHOTOCELL: Adjustable 50-5000 lux via HP10 / HP2000
OFF DELAY: 20 minutes (fixed) and a 10-second Walk Test Mode
DEPTH REQUIRED BEHIND CEILING (for flush version): 62mm from front flange plus an
allowance for the minimum bend radius of the cables
WEIGHT: 200g approx
COLOUR: White
MATERIAL: Flame retardant PC/ABS
IP RATING: 3X
Ex-Or
Novar ED&S Limited
Haydock Lane, Haydock, Merseyside WA11 9UJ
Tel: +44 (0)1942 719229
Fax: +44 (0)1942 272767
Email: technicalsales.ex-or@honeywell.com
www.ex-or.com
Surface Version
62mm
100mm
At the end of their useful life
the packaging and product
should be disposed of via a
suitable recycling centre.
Do not dispose of with normal
household waste.
Do not burn.
Note: HP2000 (or HP10) required for photocell commissioning
W4228H
by Honeywell
MS1101PF / MS1101PSM
Bronze Series LightSpot
with photocell
MS1101PF
MS1101PSM
Installation and Commissioning
Instructions
Advertisement
Related Manuals for Honeywell Ex-Or MS1101PF
Summary of Contents for Honeywell Ex-Or MS1101PF
- Page 1 Dimensions Flush Version Surface Version 62mm deep behind ceiling 62mm by Honeywell Flange: 10mm deep MS1101PF / MS1101PSM 100mm 100mm Bronze Series LightSpot with photocell Technical Data MAXIMUM RECOMMENDED MOUNTING HEIGHT: 3 metres RANGE: Cone-shaped detection pattern, diameter (at floor level) = 2.4 x mounting height 2.5m...
- Page 2 Bronze Series LightSpot with photocell Commissioning The units are supplied with factory default settings (power-up on, fully automatic operation, a 20 minute off delay, Only suitably qualified personnel should install this equipment. photocell disabled). Programme the photocell using the MLS Digital Programmer with LCD display (HP2000), This is a high-performance presence detector with photocell.
