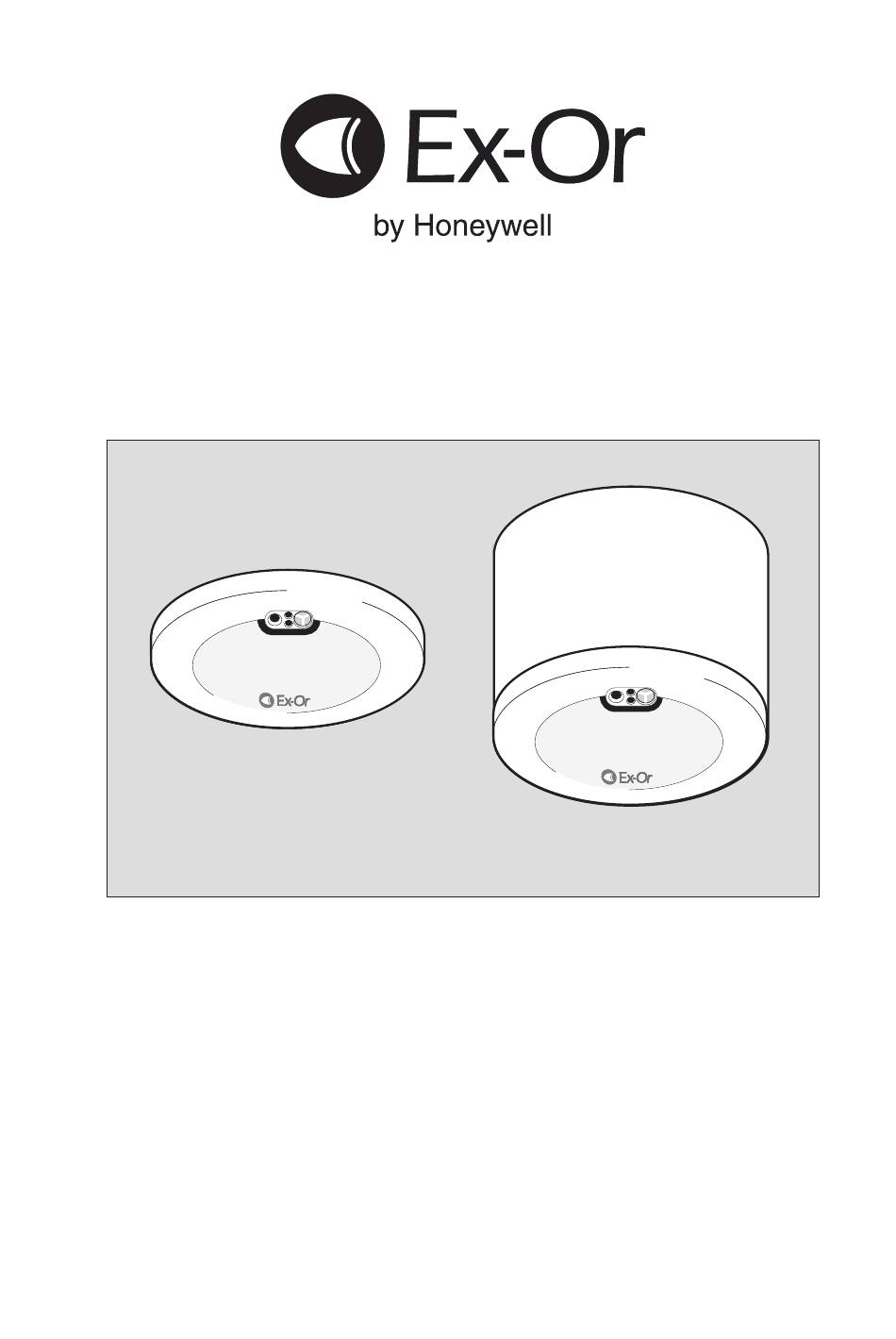

- Page 1 Gold Series LightSpot for use with Analogue 1-10V ballasts MS2421A MS2421AF MS2421ASM Installation and Commissioning Instructions Note: HP2000 required for commissioning...
- Page 2 Commissioning Gold Series LightSpot for use with Analogue 1-10V Ballasts Only suitably qualified personnel should install this equipment. The units are supplied with the factory default settings shown below which render commissioning unnecessary in many applications. To make use of the This high-performance presence detector forms a stand-alone lighting control programmable settings, an infrared commissioning tool is required (HP2000).
- Page 3 2) Regulating Control overlaid by PCELL RLY Switching Control photocell reading has been stored in the Set-point Low parameter. This is the control set-point for the regulating process which tries to maintain this First carry out the commissioning procedure described for Regulating Only photocell reading at all times by dimming or brightening the lights.
- Page 4 Haydock Lane, Haydock, should be disposed of via a suitable recycling centre. Merseyside WA11 9UJ Do not dispose of with normal household waste. Tel: +44 (0)1942 719229 Do not burn. Fax: +44 (0)1942 508753 Email: technicalsales.ex-or@honeywell.com W4475D www.ex-or.com...
