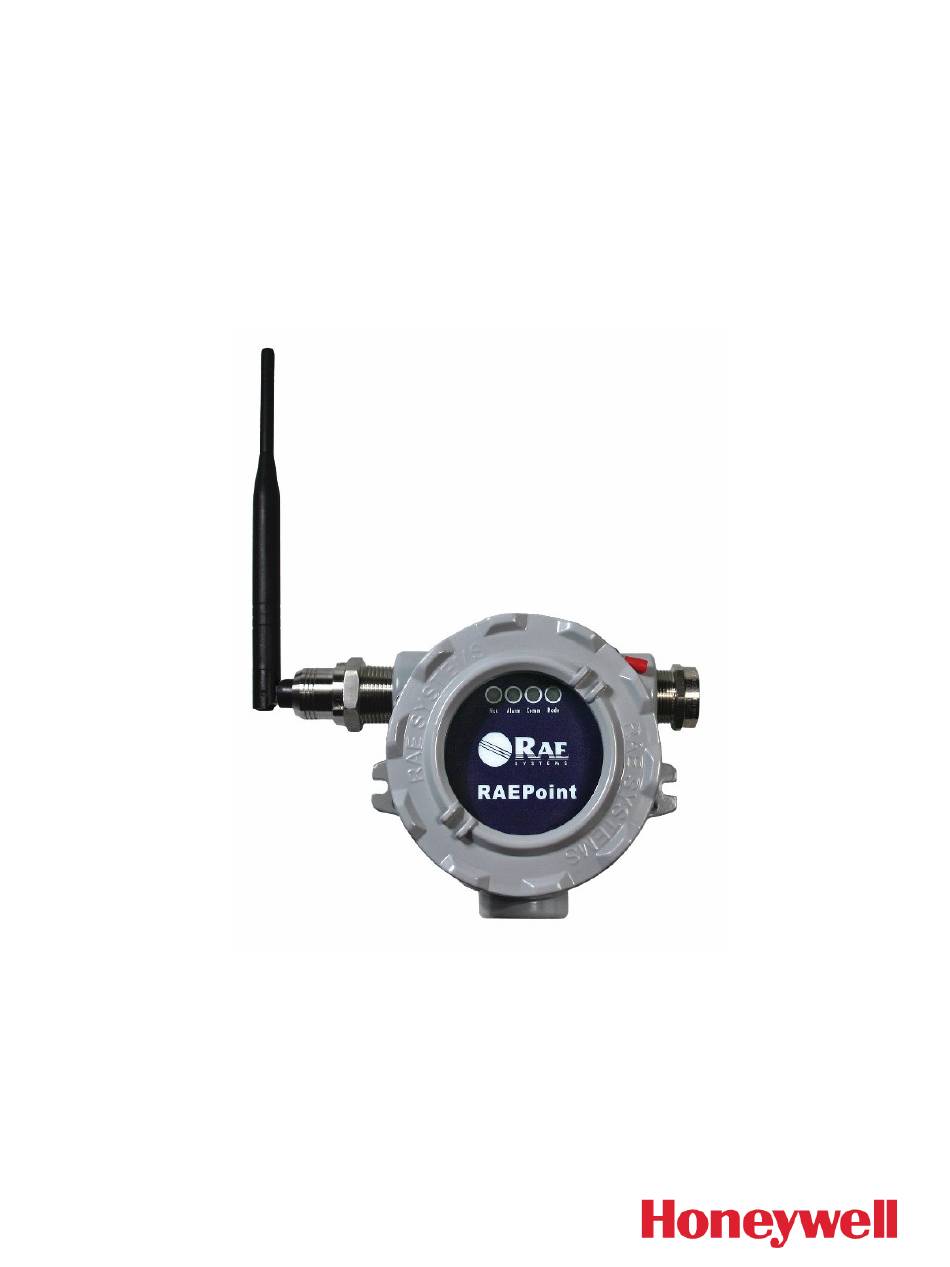

- Page 1 USER MANUAL ™ Honeywell® RAEPoint Multi-function Wireless Infrastructure Component...
-
Page 2: Table Of Contents
DC Control Wiring Switch Settings Earth Grounding Instructions Additional content Display/User Interface Alarm Signal Summary RAEPoint Host RAEPoint Remote RAEPoint Router RS485 Modbus® Message Frame /Communication Procedure Appendix A: Controlled Section Scope Responsibility Contents Models of RAEPoint Honeywell®RAEPoint | User Manual... - Page 3 Technical Support Contacts User Manual Honeywell® RAEPoint |...
-
Page 4: Special Servicing Note
Special Servicing Note If the instrument needs to be serviced, contact either: The Honeywell® distributor from whom the instrument was purchased; they will return the instrument on your behalf. Honeywell® Technical Service Department. Before returning the instrument for service or repair, obtain a Returned Material Authorization (RMA) number for proper tracking of your equipment. -
Page 5: Read Before Operating
Read and understand instruction manual completely before operating or servicing. AVERTISSEMENT Pour des raisons de sécurité, cet équipment doit être utilisé, entretenu et réparé uniquement par un personnel qualifié. Étudier le manuel d’instructions en entier avant d’utiliser, d’entretenir ou de réparer l’équipement. User Manual Honeywell® RAEPoint |... -
Page 6: General Information
For more information about disposal of this product, contact your local authority, distributor, or the manufacturer. FCC Part 15 Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: User Manual Honeywell® RAEPoint |... -
Page 7: Applications
Wireless alarm bar units include the RAEPoint fully integrated with 2 certified Xenon strobes and a certified 112dB horn. Flame and PID sensors and third-party devices (using RS-485) can be also be included. RAEPoint WA-100 DC Alarm AC/DC Wireless Alarm Bar Honeywell®RAEPoint | User Manual... - Page 8 RAEPoint can be used in large or small systems, and the network can be expanded or units removed, depending on the facility or facilities being monitored. Simple configurations that use MeshGuard sensors and a RAEPoint Wireless Alarm Bar host Full network, including externally controlled devices (AC-Powered Alarm Bar configured as Remote) User Manual Honeywell® RAEPoint |...
- Page 9 Full network, including externally controlled devices (DC-Powered Alarm Bar with RAEPoint configured as Remote) Honeywell®RAEPoint | User Manual...
- Page 10 Flame detectors and PID sensors can be included in the network, as well as third-party devices communicating with RS-485 Modbus® protocol Note: With a 2.4 GHz modem, a RAEPoint Router can connect with 24 instruments with 3 hops and a maximum of 8 Routers. User Manual Honeywell® RAEPoint |...
- Page 11 Up to 8 portable instruments can be connected with a RAEPoint Host equipped with an 868/900MHz modem Simple configuration that includes wireless monitors Honeywell®RAEPoint | User Manual...
- Page 12 Extended network with multiple RAEPoint routers New LoRa Network 869MHz or 900MHz LoRa radios only. Up to 2 hops LoRa private network. Up to 8 instruments for RAEPoint Host. Up to 64 instruments for Central Hub. User Manual Honeywell® RAEPoint |...
- Page 13 Honeywell®RAEPoint | User Manual...
-
Page 14: Raepoint Specifications
Frequency range: Within 902 to 907.5 MHz and 915 to 928 MHz, use IEEE 802.15.4 channel 1, 6, 7, 8, 9 and 10 Modulation: 802.15.4 DSSS BPSK RF power(Tx): 20dBm Data rate: 40kbps Radio model: RM2400A Frequency range: 2.400 to 2.4835GHz Modulation: 802.15.4 DSSS BPSK RF power(Tx): 20dBm Data rate: 250kbps User Manual Honeywell® RAEPoint |... - Page 15 Wireless Approval For UAE In Middle East TRA Registered No: ER36636/15 Dealer No: HONEYWELL INTERNATIONAL MIDDLE EAST - LTD - DUBAI BR TRA Registered No: ER36063/14 Dealer No: HONEYWELL INTERNATIONAL MIDDLE EAST - LTD - DUBAI BR Wireless Approval For QATAR In Middle East ictQATAR Type Approval Reg.
-
Page 16: Physical Description
Note: Prior to factory shipment, the RAEPoint is tested. However, the instrument should be tested after installation. Physical Description The RAEPoint can be easily installed and integrated with various control systems. It is designed with flexible pipe-holding/wall-mounting options and standard connection terminals. Physical Dimensions The physical dimensions are as follows: User Manual Honeywell® RAEPoint |... -
Page 17: Hardware Installation
Besides being mounted to a wall, RAEPoint can be mounted on a pipe. Note: When installing the RAEPoint, make sure the antenna is installed in the left or right inlet (not the one on the bottom). User Manual Honeywell® RAEPoint |... - Page 18 Wall Pole Honeywell®RAEPoint | User Manual...
-
Page 19: Instrument Disassembly
Press in on the clips on both sides of the display, and then lift out the circuit boards. Turn the circuit boards over to access the switches and wiring points. Be careful not to damage the antenna wire between the circuit boards and the antenna that passes through the housing. User Manual Honeywell® RAEPoint |... -
Page 20: Instrument Reassembly
Turn over the circuit board/front panel. Align the two clips with the mating points in the housing. Click the board into place. Screw on the housing top. Screw down the locking screw. Honeywell®RAEPoint | User Manual... -
Page 21: Wiring
NTC thermistor (for example, model B57236S0509M0** from EPCOS) in series between the relay and the load, to limit inrush current. Note: A RAEPoint that is factory-configured as a router does not contain relays. User Manual Honeywell® RAEPoint |... -
Page 22: Raepoint Wiring Procedure
Note: When using RS-485, make sure a RAEGuard2 PID 485 address is 0x32(default), and a Flame detector is 0x7F(default). Terminal Block 1 (Power Connections) Terminal Terminal Block 1 (Power Connections) Terminal Block 1 (RS-485 Connections) Block 1 (RS-485 Connections) Terminal Block 2 (Relay Connections) Honeywell®RAEPoint | User Manual... -
Page 23: Dc Control Wiring
Pan ID number and channel in order to communicate within the network. If you change the Pan ID number or Channel on the FMC2000, check the other units in the network, as well as the RAEPoint, to ensure they match. User Manual Honeywell® RAEPoint |... - Page 24 RAEPoint. For example, a RAEPoint with a 2.4 GHz modem can only use channels shown (15, 16, 17, 18, 19, 20, 25, 26). Note: After you change the settings on the rotary encoders, press the Reset button (labeled S4). Honeywell®RAEPoint | User Manual...
- Page 25 F082 RAEPoint Router F083 RAEPoint Host F087 MeshGuard PID F088 MeshGuard Flame F081L RAEPoint Remote LoRa F082L RAEPoint Router LoRa Note: After you change the settings on the two DIP switches, press the Reset button (labeled S4). User Manual Honeywell® RAEPoint |...
-
Page 26: Earth Grounding Instructions
Once the system is operational, test the functionality of all connected relays. Earth Grounding Instructions External Earth Grounding Fasten the crimped ground wire with hardware as illustrated below. The wire should have a minimum cross-section area of 4mm for its conductor. Honeywell®RAEPoint | User Manual... - Page 27 If a separate wire is used for grounding, its cross section should be greater than that of the power line. Finished Grounding Wires Internal and external grounding are shown here, as well as an alternate external grounding point. Always follow local electrical guidelines. User Manual Honeywell® RAEPoint |...
-
Page 28: Additional Content
Alarm Alarm Type Indicator fault Blinks for Blinks for any fault any fault Blinks for all communication Communications Activity Comm Indicator Off at any other time Blinks once per Blinks twice per Mode Device Type Indicator second second User Manual Honeywell® RAEPoint |... -
Page 29: Raepoint Host
Any high alarms and Over and Max and HighHigh Relay 4 High LEL alarms and Over and Max and HighHigh Relay 5 High H S alarms and Over and Max and HighHigh IMPORTANT! : This is a fixed configuration and cannot be modified. Honeywell®RAEPoint | User Manual... -
Page 30: Raepoint Remote
Blinks red when DC supply voltage is below 11 volts. Comm Flashes when there is RF (radio frequency) send/receive activity. Mode Blinks two times per second (green). Note: RAEPoint purchased as a router does not contain relays. User Manual Honeywell® RAEPoint |... -
Page 31: Rs485 Modbus
Mode 1: Communication Parameters for RS485 Interface RAEPoint Host Slave Baud Rate 57600 (default),38400,19200,9600 Client ID 1~16(0x01~0x10) Data bits: 8 Data Format Check bits: none Stop bits: 1 Note: Client ID is switch by the SW1. 16 client ID totally. Honeywell®RAEPoint | User Manual... -
Page 32: Message Frame /Communication Procedure
Monitors’ basic address is located from 0x0000 to 0x031F (#1 basic address: 0x0000, #2 basic address: 0x0060, #3 basic address: 0x00C0, #4 basic address: 0x0120, #5 basic address: 0x0180, #6 basic address: 0x01E0, #7 basic address: 0x0240, #8 basic address: 0x02A0, address length:0x300), step value is 0x60. User Manual Honeywell® RAEPoint |... - Page 33 = DutyCycle low PwrStatus: 0: Battery only; 1: charging; 2: fully charged+AC 3: AC only or byte[0] = PwrStatus external battery; 0x000D 0x0001 byte[1] = PwrPer PwrPer: the battery capacity in percentage 0x000E 0x0001 Byte[0] = DIO_Bank1_Settings DIO_Bank1_Settings: Honeywell®RAEPoint | User Manual...
- Page 34 (by active bitmap) 1: Logical High If Bank0 is DO 0: NO or disabled (by active bitmap) 1: NC . 0x0010 0x0004 byte[0] = SenID byte[1] = UnitID First sensor info. Total 8 bytes User Manual Honeywell® RAEPoint |...
- Page 35 = Rding low byte[7] = Rding lower The 16 sensor info byte[0 ~ 15] = User Name 0x0050 0x0008 Location: ASCII code, 16 bytes; String[0 ~ 15] 0x0058 0x0001 Byte[0] = Baud rate Baud rate: default 0, WR Honeywell®RAEPoint | User Manual...
- Page 36 0: 57600 1: 38400 Byte[1] = reserved 2: 19200 3: 14400 4: 9600 0x0059 0x0007 Reserved. User Manual Honeywell® RAEPoint |...
-
Page 37: Appendix A: Controlled Section
Below are the sections controlled by the Notified Body, including all safety-related information in the manual. Controlled sections are: Warnings and directive information Marking of the RAEPoint Hazardous Location Classifications Instructions for Safe Use Connections and Ratings Maintenance Physical dimensions Honeywell®RAEPoint | User Manual... - Page 38 Disconnect the power before removing the sensor module for service. Never operate the instrument when the cover is removed. Remove instrument cover and sensor module only in an area known to be non- hazardous. Use of non-Honeywell® components will void the warranty and can compromise the safe performance of this product. WARNING Wireless communication is intended for use as a secondary remote alarm status notification only.
- Page 39 II 2G, Ex d ia IIC T6 Gb Temperature range: -20° C ≤ T ≤ 55° C WARNING READ USER’S MANUAL FOR SAFETY PRECAUTIONS. DO NOT OPEN WHEN AN EXPLOSIVE ATMOSPHERE MAY BE PRESENT. REFER TO USER MANUAL FOR ENTRY TYPE AND SIZE. Honeywell®RAEPoint | User Manual...
- Page 40 The appropriate regulations for installation, service and repair must be properly observed during such activities. To prevent ignition of hazardous atmospheres, area must be free of flammable vapors and supply circuit must be disconnected before removing cover. WARNING Negative terminal of power supply must be grounded. User Manual Honeywell® RAEPoint |...
- Page 41 Use the same hardware as shown in the illustration of external earth grounding. The wire should be no less than the size of the power lines. Finished Grounding Wires Internal and external grounding are shown here, as well as an alternate external grounding point. Always follow local electrical guidelines. Honeywell®RAEPoint | User Manual...
-
Page 42: Models Of Raepoint
3/4" 14 NPT containing the antenna coupler for mounting of the external antenna. The physical dimensions are as follows: Models of RAEPoint Model Number Product Name RRA2000 RAEPoint Wireless Switch Remote RRA2000 RAEPoint Wireless Router RRA2000 RAEPoint Wireless Switch Host / RAEPoint Gateway User Manual Honeywell® RAEPoint |... - Page 43 Technical Support To contact Honeywell® Technical Support: Monday through Friday, 7:00AM to 5:00PM Pacific (US) Time Phone (toll-free): +1 888-723-4800 Phone: +1 408-952-8461 Email: tech@raesystems.com Contacts Honeywell RAE Systems 700 Mint St. Charlotte, NC 28202, USA Phone : +1 888 749 8878 Email: rae-callcenter@honeywell.com...
