Honeywell NOTIFIER N-ANN-80 Series Product Installation Document

12 Clintonville Road
Northford, CT 06472-1610 USA
800-289-3473 • FAX 203-484-7118
www.notifier.com
General

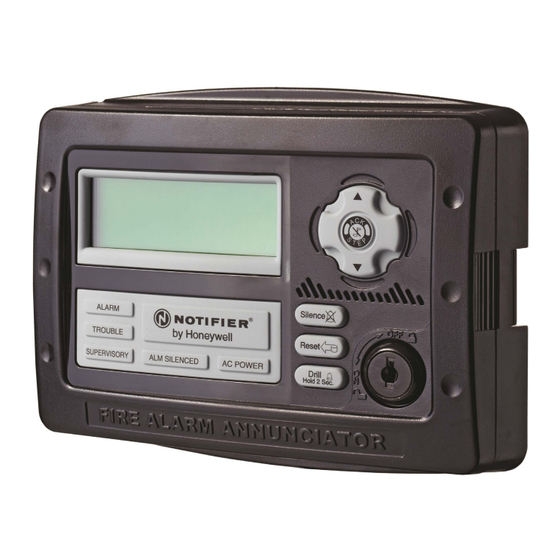

The N-ANN-80 Series Remote Fire Annunciators and Indicators
(N-ANN-80, N-ANN-80-W, N-ANN-80C) are compact, backlit LCD
displays designed for use with compatible FACPs (Fire Alarm Control
Panels). The displays mimic the FACP display and are capable of dis-
playing English-language text of system point status including device
type, independent point alarm, trouble or supervisory zone and custom
labels programmed into the FACP. Refer to the FACP manual installa-
tion section for detailed system information and wiring. The
N-ANN-80C Indicator is intended for use as a replacement part only
per ULC S527-99.
NOTE: Installation and wiring must be done in accordance with
NFPA 72 and local wiring codes.
Specifications
TB1 Terminals 1 & 2

Operating Voltage Range: 18.8VDC to 38.2VDC
Maximum Current Consumption:
• Normal/Standby (no activity): 39 mA
• Trouble Condition: 46 mA
• Alarm: 48 mA
• AC Fail (not backlit): 15 mA
TB1 Terminals 3 & 4

ANN-BUS rated at 5.5 VDC and 60 mA max.
Dimensions

6.875"W x 5.375"H x 1.375"D (17.46cm x 13.65cm x 3.49cm)
Mounting
The N-ANN-80 Series plastic enclosures can be surface or semi-flush
mounted in a single, double or 4" (10cm-sized) square electrical box.
To mount the N-ANN-80 Series enclosure:
1. Open the N-ANN-80 Series cover by turning the key switch
counterclockwise to the ON (Unlocked) position.
2. Push in the snap latch tab located on the right side while pulling the
cover open.
3. Pull wire through 7/8" (2.22cm) hole in backplate and feed through
wire channel to lower left corner of backplate before routing to
terminal block (refer to appropriate FACP manual).
Cover with
LCD Display
Figure 1 Opening the N-ANN-80 Series
Backplate
Press in latch
and then
Pull open cover
Key switch shown
in OFF position
N-ANN-80 Series
Product Installation Document
PN 52986:C3 12/6/2022 ECN: 00028310
4. The cover must remain attached to the backplate while mounting
the annunciator to the electrical box/wall. The cover cannot be
reattached or removed after the annunciator has been mounted.
5. If the cover should become detached from the backplate, reattach as
shown below.
N-ANN-80
Series
Cover
Figure 2 Cover Reattachment
6. Surface or Semi-flush mount the N-ANN-80 to a single, double or
4" (10cm-sized) square electrical box. The ANN-SB80KIT(-R/-B/-
W) is an available kit that contains two plastic backboxes that can
be used to surface mount the N-ANN-80 Series.
Wiring the N-ANN-80 Series to the FACP
Refer to Table 1 and Figure 3 for wiring connections.
N-ANN-80 Series
Terminals (TB1)
Terminal 1 (-)
Terminal 2 (+)
Terminal 3 (A)
Terminal 4 (B)
N-ANN-80 Series
Terminals (TB2)
Terminal 1
Table 1 N-ANN-80 Series to FACP Connections
* TB2 is not available on the N-ANN-80C.
• Position cover behind
backplate.
• Align hinge posts and
N-ANN-80
holes
Series
• Slide holes down
Backplate
onto posts.
• Close cover to lock
hinges into place.
N-ANN-80 N-ANN-80
Series Series
Cover Backplate
FACP ANN-BUS
Terminals
(-)
(+)
A (ANN-BUS)
B (ANN-BUS)
FACP ANN-BUS
*
Terminals
Earth Ground
