Page 1: Installation Manual

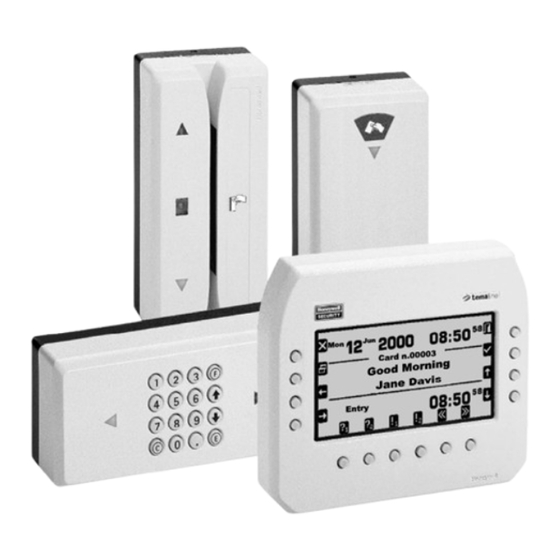

Modular terminal Installation Manual TABLE OF CONTENTS Page 3... -
Page 2: Table Of Contents
TABLE OF CONTENTS Installation Manual..................3 FCC NOTICE....................6 Canadian Compliance Statement ............6 PRELIMINARY OPERATIONS ......7 Mounting Instructions ................... 7 Arranging the Cable Tubes and Junction Boxes ......... 8 Cabling: Recommendations ..............8 Electrical Connections ................10 LONWORKS Data Cables ................. - Page 3 RTU-T01 ............. 31 (Numeric Keyboard Module) Optional Parts ..................... 32 Installation Manual Page 5...
-
Page 4: Fcc Notice
FCC NOTICE NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 5: Preliminary Operations
PRELIMINARY OPERATIONS Mounting Instructions The cables are attached to an encased box. Make sure that you place the box at a height of 120cm from the floor (see Figure 1). tube cables floor Figure 1: Space requirements for mounting Mounting Instructions Page 7... -
Page 6: Arranging The Cable Tubes And Junction Boxes
Arranging the Cable Tubes and Junction Boxes All the cables consist of 4 wires that must be connected in parallel from one node to the next. It is possible to link nodes in free topology, i.e. by means of a star or bus configuration. Cabling: Recommendations Figure 2 provides an example of a typical free topology installation. - Page 7 If you want to mount the tubes on the surface of the walls, it is advisable to place the junction boxes under each terminal (see example in Figure 3). Figure 3: Location of the junction boxes Arranging the Cable Tubes and Junction Boxes Page 9...
-
Page 8: Electrical Connections
Electrical Connections The RTU is powered at low voltage (12V 120mA) by a battery-operated power supply module (RTU-Qxx). When determining the correct size for power cables, refer to the table below. Type of cable Lengt h (m) in r elat ion t o effect ive load ohm/Km 1 0 0 [mA] 2 0 0 [mA] 5 0 0 [mA] 1 [A] 2 [A]... -
Page 9: Lonworks Data Cables
Data Cables ORKS • The L data cable must be twisted pair ORKS • In a free topology configuration, the sum total of the sections must not exceed 500m • In a bus configuration, the sum total of the sections must not exceed 2700m •... - Page 10 • The FTT10A Echelon v1.2 User Guide recommends the cables indicated in Table 2. Manufacturer and AWG Connection to bus - Connection in free topology model maximum total length –maximum node-node length max. [m] Belden 85102 2700 Belden 8471 2700 Level IV (twisted pair, 1400...
-
Page 11: Mounting The Unit On The Wall
Mounting the Unit on the Wall Horizontal Assembly – Single Module To assemble the unit in a horizontal position, follow these steps: 1. Drill two holes in the wall (to accommodate the 2 plastic dowels), so that the frame will cover the hole through which the cables pass. 2. -
Page 12: Horizontal Assembly - Triple Module
Horizontal Assembly – Triple Module To assemble the unit in a horizontal position, follow these steps: 1. Drill two holes in the wall (to accommodate the 2 plastic dowels), so that the frame will cover the hole through which the cables pass. 2. -
Page 13: Combined Assembly - Single And Triple Modules
Combined Assembly - Single and Triple Modules A combined wall assembly of single and triple modules allows you to create units consisting of 2, 4 and 5 units. This procedure consists of the following steps: 1. Drill the necessary holes in the wall (2 plastic dowels for each module), so that the lower plate will cover the hole through which the cables pass. - Page 14 NET1 NET2 At t achment At t achment +12V clip clip NET1 NET2 +12V Figure 7: Combined assembly of single and triple module wall units Page 16 Mounting the Unit on the Wall...
-
Page 15: Fastening The Cables
Fastening the Cables Fasten the cable clamps to the cable bar so that the cables are arranged towards the inside of the frame (see Figure 8). CONNECTIONS NET1 (green) NET2 (yellow) GND (black) +12V (red) Figure 8: Fastening the cables Mounting the Unit on the Wall Page 17... -
Page 16: Vertical Assembly
Vertical Assembly To assemble the unit in a vertical position, follow these steps: 1. Drill two holes in the wall (to accommodate the 2 plastic dowels), so that the frame will cover the hole through which the cables pass. 2. Insert the cables in the cable clamp without pulling out the screws. 3. -
Page 17: Channeling The Cables From The Bottom Of The Box
Channeling the Cables from the Bottom of the Box As an alternative, you can channel the cables so that they exit from the bottom of the frame. This alternative procedure consists of the following steps: 1. Drill a hole in the wall so that the hole from which the cables exit is in the center of the lower plate. -
Page 18: Installation
INSTALLATION Combining the Modules Each TemaKey consists of one or more RTU modules that must be positioned and connected to their respective wall attachment frames (RTU- Sxx) as indicated in the table below. Reader Code Grouping Horizontal Vertical Notes TK-S07 1 x RTU-B07 Weight=0.45Kg... -
Page 19: Terminals
1 x RTU-C02 Weight=0.95Kg 2 x RTU-S01 Power=5.2W Current=380mA Terminals Code Grouping Horizontal Vertical Notes TK-D07 1 x RTU-C01 Weight=0.9Kg 1 x RTU-B07 Power=2.7W 2 x RTU-S01 Current=200mA TK-D012 1 x RTU-C01 Weight=0.9Kg 1 x RTU-B12 Power=2.9W 2 x RTU-S01 Current=200mA Terminals with Keyboards Code... -
Page 20: Interactive Terminals
Interactive Terminals Code Grouping Horizontal Vertical Notes TK-D27 1 x RTU-C02 Weight=1.25Kg 1 x RTU-B07 Power=6W 1 x RTU-S03 Current=440mA TK-D212 1 x RTU-C02 Weight=1.25Kg 1 x RTU-B12 Power=6,2W 1 x RTU-S03 Current=460mA Interactive Terminals with Keyboards Code Grouping Horizontal Vertical Notes TK_T27... -
Page 21: Attaching The Modules To The Wall
Attaching the Modules to the Wall All tEmaline modules are equipped with a simple attachment mechanism; the module clicks into position without the need for tools. To attach the module to the frame, follow these steps: 1. Check that the fitting at the back of the RTU modules is positioned correctly. -
Page 22: Applying The Entry/Exit Labels
Applying the Entry/Exit Labels Apply the two entry/exit labels to the magnetic reader according to the pre- configured transit direction. Make sure that you place the labels in the appropriate hollows (see details in Figure 12 and Figure 13). O U T EXIT ENTRY Figure 12: Entry/exit labels... -
Page 23: Identification Via Bar Code
Identification via Bar Code The components enclosed in the packaging include a bar code label. The person responsible for installing the terminal must apply this label to the corresponding identification form, and indicate the location of the terminal in the appropriate box (see example in Table 3). Description of location Office entrance area, first floor - staircase E Description of TemaServer... -
Page 24: Summary Of Modular Devices
TECHNICAL DATA Summary of Modular Devices This section contains technical data regarding the modular devices: • RTU-B07 (Reader module for HID proxy cards) • RTU-B12 (Reader module for Mifare proxy cards) • RTU-C01 (Alphanumeric LCD module) • RTU-C02 (Graphic LCD module) •... -
Page 25: Rtu-B07 (Proxy Reader For Hid Cards)
RTU-B07 (Proxy Reader for HID Cards) Code 1520145 Parameter Value DC power supply ±15% 60mA Weight 0.30 Kg Dimensions 72 x 160 x 52 mm IP Protection Rating IP55 Operating temperature 0-50 °C Proxy receiver For HID cards Double-antenna receiver (bidirectional) ®... -
Page 26: Rtu-B12 (Proxy Reader For Mifare Cards)
RTU-B12 (Proxy Reader for MIFARE Cards) Code 1500119 Parameter Value DC power supply ±15% 90mA Weight 0.30 Kg Dimensions 72 x 160 x 52 mm IP Protection Rating IP55 Operating temperature 0-50 °C Proxy receiver / 13.56MHz RX/TX Trasmitter for MIFARE (ISO14443-2A) cards ®... -
Page 27: Rtu-C01 (Alphanumeric Lcd Module)
RTU-C01 (Alphanumeric LCD Module) Code 1500105 Parameter Value DC power supply ±15% 140mA (nominal) 70mA (backlight off) Weight 0.30 Kg Dimensions 72 x 160 x 52 mm IP Protection Rating IP55 Operating temperature 0-50 °C Display Alphanumeric LCD with backlight 2 rows of 16 characters format Keyboard 4 keys with symbols... -
Page 28: Rtu-C02 (Graphic Lcd Module)
RTU-C02 (Graphic LCD Module) Code 1500101 Parameter Value DC power supply ±15% 380mA (nominal), 140mA (backlight off) Weight 0.65 Kg Dimensions 166 x 190 x 52 mm IP Protection Rating IP55 Operating temperature 0-50 °C Display Graphic LCD with backlight 240 x 128 pixels format Keyboard 14 function keys... - Page 29 RTU-T01 (Numeric Keyboard Module) Code 1500104 Parameter Value DC power supply ±15% 30mA (nominal), 50mA (max) Weight 0.25 Kg Dimensions 72 x 160 x 52 mm IP Protection Rating IP55 Operating temperature 0-50 °C Keyboard 16 keys with symbols ® connection Unshielded twisted pair cable ORKS...
- Page 30 Optional Parts Unlocking tool code 3900695AB Page 32 Optional Parts...
