- Page 1 Honeywell VISTA Series Products User Manual Version: 1.0 Date: Dec, 2011 CAFP100F CAFP100FS CAFP100FID CAFP100FIC About This Manual This manual introduces the interface and menu operations of the Honeywell VISTA series products. For the product installation, see related installation guide.
-
Page 3: Table Of Contents
Content Content 1 Instruction for Use ............................... 1 2 Basic Concepts..............................3 2.1 User Enrollment ............................3 2.2 User Verification ............................3 2.3 Match Threshold............................3 2.4 User ID ................................ 3 2.5 Authority Classes............................4 2.6 Main Interface ............................. 4 3 Enrollment and Verification..........................5 3.1 Enroll a User ............................... 5 3.1.1 Enroll a Fingerprint ......................... 5 3.1.2Enroll a Password..........................6 3.1.3 Enroll Both Fingerprint and Password................... 7 3.1.4 Enroll an ID Cardê......................... 8 3.2 Check Enrollment Effect..........................9 3.3 Verification Modes ............................9 3.3.1 Fingerprint Verification........................ -
Page 5: 1 Instruction For Use

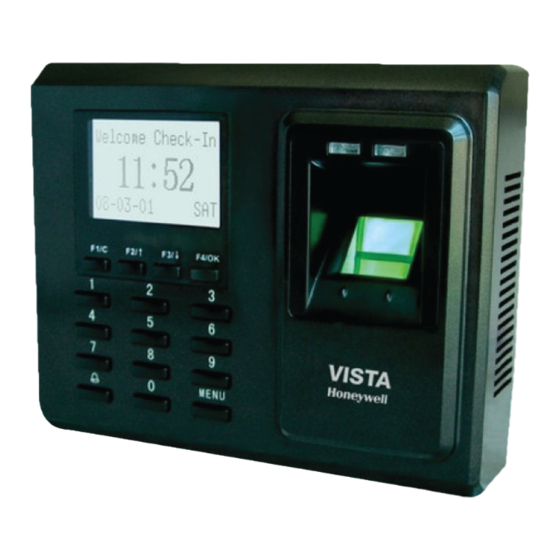

Honeywell VISTA Series Products User Manual 1 Instruction for Use Thank you for using our Honeywell VISTA CAFP100Fxx series fingerprint recognition terminal (FRT). Please read this manual carefully before using this product for a comprehensive understanding so as to avoid causing unnecessary damages to the product. Protect the FRT from exposure to direct sunlight or strong beam as strong beam greatly affects the fingerprint collection and leads to fingerprint verification failure. ° Avoid using the FRT outdoors in summer. The working temperature of CAFP100Fxx series ranges from 0–40 C. The heat dissipated during longterm operation may easily lead to response slowdown and verification pass rate decrease. It is recommended to use sunshades and heat sink devices for protection of the FRTs outdoors. We recommend you to use the FRT properly so as to achieve the optimal recognition effect and verification speed. 1. Install a CAFP100Fxx FRT and then enroll your fingerprint for comparison Installation Enrollment Recognition Recognition Installation Enrollment ... - Page 6 Honeywell VISTA Series Products User Manual Note: Please enroll and verify your fingerprint by using the proper finger placement mode to avoid degradation of verification performance due to improper operations. We reserve all rights for the final interpretation and modification of these rules. 4. LED Colors and Their Meanings CAFP100Fxx FRT works normally: The green LED blinks once every other second. Verification fails: The red LED is solid on for 3 seconds. Verification succeeds: The green LED is solid on for 3 seconds. Note: If the LED display is inconsistent with the above conditions, please contact our technical personnel. 5. About This Manual Our products are subject to update from time to time, so our company will neither make a commitment to l guarantee the consistency between the actual products and this document, nor assume any ...
-
Page 7: 2 Basic Concepts
Honeywell VISTA Series Products User Manual 2 Basic Concepts This section introduces the definitions and descriptions of the following basic concepts: Ø User enrollment Ø User verification Ø Match threshold Ø User ID Ø Authority class The most important two functions supported by CAFP100Fxx series are user enrollment and verification. 2.1 User Enrollment A user can enroll up to 10 different fingerprints using one ID number to have multiple verification selections. Theoretically all the fingers of a user need to be enrolled so that the user can still perform fingerprint matching even if one or more of his/her fingers get cut or damaged. Generally it is recommended that a user shall enroll at least two fingerprints, for example, the index fingers of both hands, so that the user can use any of the enrolled fingerprints for recognition even if he/she forgets which fingerprint has been enrolled. 2.2 User Verification When a user enters a password after placing his/her finger on the fingerprint reader, or scans his/her ... -
Page 8: Authority Classes
Honeywell VISTA Series Products User Manual You can enter the ID through the mini keyboard or other storage means, for example, the RF card (the fingerprint recognition device must be configured with the RF card reader). 2.5 Authority Classes The CAFP100Fxx series FRTs include four authority classes: Users: refer to those who are required to verify their identity for a purpose, for example, opening the door l through the CAFP100Fxx FRT or keeping their entry/exit records. Registrars: refer to the users who are granted the right to enroll or delete users. l Administrators: refer to the users who are granted the right to perform all operations except performing l advanced settings and enrolling administrators and super administrators. Super administrators: refer to users who have access to all system functions and modify all system ... -
Page 9: 3 Enrollment And Verification
Honeywell VISTA Series Products User Manual 3 Enrollment and Verification This chapter introduces how to enroll users on the CAFP100Fxx series. Further, it describes how to verify the validity of enrolled fingerprints. This chapter includes the following parts: ² Enroll users ² Check enrollment effects ² Enroll spare fingerprints ² Verify identity ² Prompts for successful enrollment Note: To enroll a new user, you must have the authority of a registrar, administrator or super administrator. For details, see 2.5 Authority Classes. 3.1 Enroll a User If no administrator has been enrolled, any user has the right to enroll a new user. If an administrator has ... -
Page 10: 2Enroll A Password
Honeywell VISTA Series Products User Manual New Enroll 000010 ESC(Exit) OK(Save) 4) Press OK to save the enrolled fingerprint. If the enrollment fails, the system will prompt you to reenter your user ID and restart the enrollment from Step 2. Notes: ①The FTP displays 5digit numbers, and automatically adds 0 as prefix to the numbers less than 5 digits. For example, if you input "11", the FRT will display "00011". ②Enrollment number could only be input in order before, but now for technology updating, you can freely enter the number with maximum to 65534. ③For nonnumeric key models, you can use the "▲" or "▼" key and the "OK" button to input the enrollment number. perations: on the fingerprint enrollment interface → press "▲" or "▼" key to select the digit you want to enter, such as the "hundreds place" → press "OK" button press "▲" or "▼" key to select the number you want to enter →press "OK" button, then move to the "ten place", as the operation above → press "OK" button for 3 seconds to confirm the enrollment. 3.1.2Enroll a Password 1) Select Menu →Mange User →Enroll User to display the [Enroll User] interface. Select [Enroll Pwd] and press OK to display the [Enroll Pwd] interface. Enroll Pwd New Enroll? ... -
Page 11: Enroll Both Fingerprint And Password
Honeywell VISTA Series Products User Manual New Enroll 00006P ESC(N) OK(Save) Note: The last digit "P" in "00006P" denotes password. 6) Press OK to save the enrolled data and exit the password enrollment. 3.1.3 Enroll Both Fingerprint and Password 1) Select Menu →Mange User →Enroll User to display the [Enroll User] interface. Select [FP&Pwd] and press OK to proceed. FP & Pwd New Enroll? ESC(N) OK(Y) 2) Press OK to confirm and proceed. New Enroll UserID 00008 ... -
Page 12: Enroll An Id Cardê
Honeywell VISTA Series Products User Manual New Enroll 000080P ESC(N) OK(Save) Note: The second digit "0" from the bottom in "000080P" denotes one fingerprint, and the last digit "P" denotes password. 7) Press OK to save the enrolled data and complete the fingerprint and password enrollment. 3.1.4 Enroll an ID Cardê 1) Select Menu →Mange User →Enroll User to display the [Enroll User] interface. Select [Reg RFID] and press OK to proceed. Reg RFID New Enroll? ESC(Exit) OK(Save) 2) Press OK to confirm and proceed. New Enroll Show the card User ID: 00010 ESC(Exit) OK(Save) 3) Input a number (from 1–65534) in the [User ID] field. Press OK to display the ID card enrollment interface. New Enroll 000010C ESC(Exit) ... -
Page 13: Check Enrollment Effect
Honeywell VISTA Series Products User Manual New Enroll CARD: 16650449 User ID: 00010 ESC(N) OK(Save) Note: The last digit "C" in "00010C" denotes ID card. 6) Press OK to save the enrolled data and complete the ID card enrollment. Note: The ID card verification is an optional function. To customize an IDcardcapable FRT, please consult our commercial representatives or presale technical support engineers. 3.2 Check Enrollment Effect After enrolling a fingerprint, you need to verify its validity by placing your corresponding finger properly on the initial interface of the FRT. If the FRT recognizes your fingerprint successfully, it proves that your fingerprint is clear and recognizable; otherwise, you need to reenroll your fingerprint or change another finger for ... -
Page 14: Password Verification
Honeywell VISTA Series Products User Manual Verify UserID: 00001 Verified! If the verification fails, the system will display the following interface: FP Verify Please Try Agn. After the above interface is displayed 0.5 seconds, the system will return to the initial interface. (2) 1:N fingerprint verification In the 1:N fingerprint matching mode, the FRT compares the current fingerprint collected through the fingerprint reader with all the fingerprints stored in the FRT. Operation steps: Place your finger on the initial interface to display the following interface: FP Verify Remove Finger If the verification succeeds, the interface will be displayed: Verify UserID: 00001 Verified! If the verification fails, the system will display the following interface: FP Verify Please Try Agn. ... -
Page 15: Verification Through Card Readê
Honeywell VISTA Series Products User Manual Pwd Affirm UserID: 00008 Input Pwd ***** Input a correct password and press OK to confirm your entry. Pwd Verify UserID: 00008 Verified! If you enter a wrong password, the system displays "Wrong Pwd" as shown below and returns to the password input interface: Pwd Verify UserID: 00008 Verified. Wrong Pwd. 3.3.3 Verification Through Card Readê If you have your ID card number enrolled in the system, you can pass the verification by read your ID card at the corresponding area in a proper way. 3.4 Prompts for Successful Enrollment ... -
Page 16: Administrator Enrollment
Honeywell VISTA Series Products User Manual Impact of the The change of fingerprint image due to skin peelingoff or injury will affect the fingerprint image verification performance. change If the fingerprint quality of a user is poor due to the skin peelingoff and the user cannot pass the verification one week later, the user needs to reenroll his/her fingerprint or adopt the password verification mode. Other causes There may be a small amount of people who cannot pass the verification no matter how hard they try due to very poor fingerprint quality. In that case, you can adopt the ID + fingerprint verification mode, duly lower the 1: 1 match threshold or adopt the password verification mode. ... - Page 17 Honeywell VISTA Series Products User Manual Menu ► Mange User Options USB Mgnt 2) Press OK to display the [Mange User] interface. Mange User ►Enroll User Enroll Admin Delete 3) Select Delete through the ▲/▼ key. User Manage Enroll User Enroll Admin ►Delete 4) Press OK to display the [Delete] interface. Delete UserID: 00008 ESC(Exit) OK(Y) 5) Enter a number in the [User ID] field and press OK to confirm your entry. Then delete the user according to system prompt. Note: About deleting the administrator Privilege and Clear all Data. There are such items in the "Advanced Settings" on some models of devices. for detail please refer to"4.1.7Advanced Settings". Such deletions can also be executed by " Access Control Management Software ". Steps as below: Open the " Access Control Management Software", Click "Basic settings" "Device management" "others" "read options" at bottom (can read all data of connection machine) "Clear Admin’ Privilege". Deleting "All Users" can also be executed through the "Equipment Management" menu. Therefore, all ...
-
Page 18: 4 Options
Honeywell VISTA Series Products User Manual 4 Options Press Menu on the initial interface. After verifying your administrative rights, the system displays the following interface. Menu User Manage ►Options USB Mgnt Select Options and press OK to proceed. Options ▼ ►System Opt Power Mgt Comm Opt Log Opt Access Options Auto Det The Options menu contains six submenus: System Opt, Power Mng, Comm Opt, Log Opt, GPRS (Only professional access control devices provide this setting), ... -
Page 19: Date Format
Honeywell VISTA Series Products User Manual 4.1.2 Date Format You can set the date format displayed on the FRT screen. Select Fmt and press OK to display the format setting interface. Select a desired date format through the ▲/▼ key. The FRT supports 10 date formats: YYMMDD, YY/MM/DD, YY.MM.DD, MMDDYY, MM/DD/YY, MM.DD.YY, DDMMYY, DD/MM/YY, ... -
Page 20: Power Managementê
Honeywell VISTA Series Products User Manual This option is used to set the extent of matching between an input fingerprint and that stored in templates. For details, see 2.3 Match Threshold. 7)1:1 Lvl This option is used to set the extent of matching between an input ID/fingerprint and that stored in templates in the ID and fingerprint identification mode. For details, see 2.3 Match Threshold. 8)Ext FP Dev ê If you select "Y", you can install an external fingerprint sensor through the USB interface and use this external sensor together with the fingerprint reader accompanied with the FRT. If you select "N", you cannot install any external fingerprint sensor. For details, see Appendix External Connection with the Fingerprint Reader. 9)Firmware Upd You can select "Firmware Upd " to upgrade the firmware of an FRT through the upgrade files in the USB pen drive. Note: If you need firmware upgrade files, please contact our technical support engineers. Generally it is not recommended to upgrade the firmware. 10)Buzzer This parameter is used to set whether to play voice prompts during the operation of the terminal. Select "ON" to enable the voice prompt, and select "OFF" to mute. 11)AntiPassbackê This option has four values: None, Exit, Entry and Entry and Exit. For details, see Appendix AntiPassback. 12) Alg Ver This option is used to set the version number of the fingerprint algorithm. Select 9 to adopt algorithm version 9.0 and 10 to adopt algorithm version 10.0. Please select the algorithm version with caution because the ... -
Page 21: Communicationrelated Settings
Honeywell VISTA Series Products User Manual The CAFP100Fxx FRT adopts an intelligent power management system and supports such functions as timing poweron/shutdown and sleep timing. 1) Power On This option is used to automatically power on the FRT at specified time. The settings of timing poweron are similar to those of timing poweroff. 2)Sleep This option is used to set the FRT to automatically enter sleep mode at specified time. You can wake up the FRT from sleep mode by pressing any key. The setting steps of this parameter are similar with those of timing shutdown. 4)Idle& Idle Time These two options are closely associated. When Idle min is 0, the Idle function is disabled. When Idle min is a nonzero number (unit: minute), for example, 1, the system will enter a specified state if there is no operation in 1 minute. 4.3 Communicationrelated Settings Select Comm. Opt and the information displayed on the screen is shown in the following figure: Comm Opt ▼ ►BaudRate 115200 Dev No. 1 Net Speed Auto IP Addr 192.168.1.201 NetMask ... -
Page 22: Log Settings
Honeywell VISTA Series Products User Manual This parameter is used to set whether to adopt the RS232 for communications. To adopt the RS232, set this parameter to Y; otherwise set it to N. 9. RS485 This parameter is used to set whether to adopt the RS485 for communications. To adopt the RS485, set this parameter to Y; otherwise set it to N. 10. COMM Key When the password is set to 0, no password is required for communication; when the password is set to a nonzero value, this value is required for communication connection. 4.4 Log Settings Select Log Opt and the information displayed on the screen is shown in the following figure: Log Opt ▼ ►Alarm AttLog 99 ReCheck Min 0 1. Alm AttLog When the available space for storage of attendance logs reaches the specified value, the FRT automatically generates an alarm. 2. Recheck Min If a user’s attendance record already exists and the user checks in again within the specified period (unit: ... -
Page 23: Access Control Function Description
Honeywell VISTA Series Products User Manual Set the duration from successful fingerprint matching to unlocking. 6. DSen. Delay Set the door sensor delay. An alarm will be generated if the door is left open for a period of time, and this period is called door sensor delay. 7. DSen. Mode DSen. Mode includes NONE, NC and NO. NONE means no door sensor, NO means the door and the lock are both open, or alarm will be given off. NC means both door and lock are closed, or alarm will be given off. 8. DSen. Alarm DSen. Alarm means the time between alarm and alarmer ring. 9. Duress Optionsê Set the automatic alarm function to prevent enrollment under duress. In times of duress, the system will ... -
Page 24: Access Control Verification Flow
Honeywell VISTA Series Products User Manual 4.5.2 Access Control Verification Flow 4.5.3Function Introduction 4.5.3.1 Define Time Segments Time segment is the minimum time unit for access control setting. The entire system can be defined with a maximum of 50 time segments. Each time segment is divided into 7 time buckets, that is, one week. Each time bucket is the valid time segment within 24 hours every day. Every user can be set with up to 3 time ... - Page 25 Honeywell VISTA Series Products User Manual Def Time TP No. 1 ESC(Exit) OK(Y) Press OK to display the Def TP1 interface as follows: Def TP 1 ▼ Sun 00:0023:59 Mon 00:0023:59 Tue 00:0023:59 Wed00:0023:59 Thu 00:0023:59 Fri 00:0023:59 Sat 00:0023:59 The TP1 above is defined as whole day access, that is, the factory default. Time segment can be reset. Take TP1 as an example: Inaccessible on Saturday and Sunday; Accessible during the work time from Monday to Friday. Work time: 08:30–18:00 The specific settings are as follows: Def TP 1 ▼ Sun 23:5723:56 Mon 08:3018:00 Tue 08:3018:00 Wed 08:3018:00 Thu 08:3018:00 Fri ...
- Page 26 Honeywell VISTA Series Products User Manual Group No. 1 ESC(Exit) OK(Y) Press OK to display the Group1 Default TS interface. GRP1 Def TP TP 1 1 TP 2 8 TP 3 40 There are three default time segments which have an "OR" relation with one another. Group 1 is allowed to unlock within the time segments 1, 8 and 40. You can also select other defined time segments. b) Select GRP TP Define and then select "2" as Group No. Press OK to display the Group2 Default TS interface. GRP TP Def Group No. 2 ...
- Page 27 Honeywell VISTA Series Products User Manual Select User Acc Opts and set the UserID to 00001. User Acc Opts UserID: 00001 ESC(Exit) OK Press OK to display the setting interface of user 00001. Press ▲/▼ to select Y for the option Use Grp TPs. As mentioned above, Group 1 has been allowed to unlock within the time segments 1, 8 and 40. Select Y for the option Use Grp VS. Here we assume that the verification type of Group 1 is password verification (which can be set through the option Group VerType under the menu "Access Options"). The following information is displayed on the screen: User 00001 Opt ▲ Belong to GRP 1 Use GRP TP Y TP 1 1 TP 2 8 TP 3 40 VERType FP Use GRP VS Y User 00001: i. User 00001 belongs to Group 1 and adopts the time segment of Group 1 (The user time segment No. is the group time segment No). User 00001 is allowed to unlock within the time segments 1, 8 and 40. ii. If user 00001 adopts a group verification type (password verification), this type shall prevail even if user ...
- Page 28 Honeywell VISTA Series Products User Manual 4.5.3.4 Definition of Unlock Combinations The unlock combinations are defined to control the unlocking. For example, to make all enrolled users unable to unlock, leave all the ten unlock combinations BLANK. The unlock combinations are userdefined combinations to unlock the door, and each combination consists of different groups. The unlock combinations specify the group number(s) permitted to unlock the door, leaving the user verification sequence out of account. For example, "123" means the door unlocks only after at least three users respectively from Group 1, Group 2 and l Group 3 pass the verification within the specified time segment. "4" means the door unlocks after one user of Group 4 passes the verification. l You can define a maximum of 10 unlock combinations for the FRT and the door unlocks as long as one of them passes the verification. Tip: The default unlock combination is "1" (that is, new enrolled users can unlock the FRT by default). On the initial interface, press Menu → Options → Access Options → Access Comb, as shown in the ...
- Page 29 Honeywell VISTA Series Products User Manual Unlock combination 4: The door unlocks only after at least two users respectively from Group 4 and Group 5 pass the verification within the specified period. Unlock combination 5: The door unlocks only after at least two users respectively from Group 1 and Group 5 pass the verification within the specified period. To sum up, the door unlocks only when users of each group in an unlock combination pass the verification within the specified period. Note: 1. The verification will fail in any of the following cases: ² The user time segment number is not selected. ² The default group time segment number is not selected (when the group time segment is used). ²The verification does not remain within any of the userdefined time segments. ² The time segment is defined as "Disabled". 2. Users set a time segment within which the verification fails: ŒIf the conditions of unlock combination 2 are met, users of "Invalid Group" cannot unlock but are allowed to register attendance. (If there are other users meeting the unlocking condition in Group 4, then the unlock combination 2 is allowed to unlock) •If the conditions of unlock combinations 1, 3, 4 and 5 are met, users of "Invalid Group" cannot unlock but are allowed to register attendance. 2) Example 2: To set the vault of a bank to unlock only in the presence of three people, proceed as follows: These three people respectively belong to Group 2, Group 4 and Group 5 and are granted the right to unlock within the same time segment. Select "Comb 1" and press OK. Then enter "245" through the numeric pad ...
-
Page 30: Duress Alarm
Honeywell VISTA Series Products User Manual To set DSen. Mode, press Menu → Options → Access Options, and then select DSen. Mode through the ▲/▼ key, as shown in the following figure: Access Options DSen. Delay 10 ►DSen. Mode NO DSen.Alarm 300 Press OK and then switch among the door sensor switch modes through the ▲/▼ key. The door sensor switch includes three modes: NONE, NO and NC. 4.5.3.8 Door Sensor Alarm Delay The door sensor alarm delay refers to the delay in generating the alarm signal after a door sensor alarm is triggered. You can set the alarm delay between 0 and 999s. To set DSen.Alarm, press Menu → Options → Access Options, and then select DSen.Alarm through the ▲/▼ key, as shown in the following figure: Access Options DSen. Delay 10 ... -
Page 31: Verification Failure Alarm
Honeywell VISTA Series Products User Manual 4.5.4.2 Help Key Select Duress Options, and press ▲/▼ key to select Help Key, as shown in the following figure: Duress Options ▼ ►Help key N 1:1 Trig N 1:N Trig N If the option Help Key is set to Y, press and hold ▼ (over 3 seconds) to signal for help; if you press and hold ▼ (less than 3 seconds) and then input your fingerprint or ID card number, a duress alarm will be generated at the same time when you pass the verification successfully. If the option Help Key is set to N, the system will not send signals seeking for help even if you press and hold ▼. 4.5.4.3 Verification Alarms Our FRT supports three fingerprint verification modes: 1:1 verification, 1:N verification, and password verification. Press ▲/▼ in the following interface to select one or more verification modes as the duress alarm mode. When you perform verification by using a verification mode which is set to Y, the system will generate an alarm signal. Duress Options ▲ ►Duress FP Help key 1:1 Trig N ... - Page 32 Honeywell VISTA Series Products User Manual 3 FP / PW / RF 4 FP / PW / RF 5 FP / PW / RF First select a group through the ▲/▼ key and press OK. Then press ▲/▼ to select a verification type for this group and press OK to confirm your selection. Finally press ESC to exit current interface, and when the system prompts you to save your changes, press OK. Note: The "Group VerType" option is available only for the devices supporting multiple verification modes. 28 ...
-
Page 33: Automatic Test
Honeywell VISTA Series Products User Manual 4.4 Automatic Test Select Auto Det and the information displayed on the screen is shown in the following figure: Auto Det ▼ ►Run All Test LCD Test FP Reader Key Test RTC Test Through this menu, you can test the system components. The auto test function helps troubleshoot the FRT quickly and facilitates the FRT maintenance. LCD Test: The FRT automatically tests the display effect of its LCD and check whether its LCD displays integral images. Fingerprint Reader Test: The FRT automatically tests whether the fingerprint reader works properly by checking. After select it, press "OK" to test, and check it whether normal. Press" ESC "to exit the test. Keyboard Test: The FRT tests whether every key on the keyboard works normally. Press any key on the [Keyboard Test] interface to check whether the pressed key matches the key displayed on screen. Press " ... -
Page 34: 5 Usb Pen Drive
Honeywell VISTA Series Products User Manual 5 USB Pen Drive Select USB Mng and the information displayed on the screen is shown in the following figure: USB Mngt ▼ ►DwnLoad AttLog DwnLoad User UpLoad User Download SMS Upload SMS You can download the attendance data, employee data and short messages and upload employee data and short messages with a USB pen drive. 5.1 Download Attendance Data 1. Insert a USB pen drive into the USB interface on the FRT. 2. Select USB Mngt and select the desired attendance data to be downloaded through the "▲/▼" key. The interface displayed is shown as follows: USB Mngt ▼ ►DwnLoad AttLog DwnLoad User UpLoad User 3. Press OK to confirm your selection and start the download. The interface displayed upon successful download is shown as follows: Copy Data Suc! 4. Press ESC to return to the initial interface and then remove the USB pen drive. Three files X_attlog.dat ... -
Page 35: Upload Short Messages Ê
Honeywell VISTA Series Products User Manual 5.5 Upload Short Messages ê Edit a short message by selecting External Program → SMS Mng of the attendance software. Select External Program→ PenDrive Mng→ Export → Export to PenDrive to export the edited short message to the USB pen drive. Insert the USB pen drive into the USB interface on the FRT upon successful export, and select Menu →USB Mngt → Upload SMS to upload the short message from the USB pen drive. Notes: 1. The option PenDrive Mng is available only on the FRTs configured with USB slots. The options Upload SMS and Download SMS are available only on the SMScapable FRTs. If you need FRTs that support these functions, please consult our commercial representatives or presales technical support engineers. ... -
Page 36: 6 System Information
Honeywell VISTA Series Products User Manual 6 System Information Through the Sys Info menu, you can check all information of the FRT, including the enrolled fingerprint count, enrolled users, attendance records, administration records and equipment information. On the Menu interface, select Sys Info and press OK to display the interface as shown in the following figure: Sys Info ▼ ► User Cnt 206 FP Cnt 173 Att Log 8046 Admin Cnt 2 User Pwd 30 Alm Log 263 Free Cap Dev Info On the screen as shown in the figure above, you can check the User Cnt (Number of enrolled users), FP Cnt (Number of enrolled fingerprints), Att Log (Piece of attendance records), Admin Cnt (Number of enrolled ... -
Page 37: 7 Turn Off (Clear) Alarm Ê
Honeywell VISTA Series Products User Manual 7 Turn Off (Clear) Alarm ê The option Turn Off Alarm is available only after the FRT generates an alarm and is used to clear an alarm. Note: The option Turn Off Alarm is available only after an alarm signal is generated. 33 ... -
Page 38: 8 Maintenance
Honeywell VISTA Series Products User Manual 8 Maintenance 1. Cleaning Sometimes the optical lens, keyboards and display screens need to be cleaned. Although the specific cleaning cycle is dependent upon the ambient environment where the FRT operates, the following maintenance guide might be of some help to you: Table81Maintenance Description Item Cleaning Keyboards and display Clean the keyboards or display screens when the surface of them is dirty or ... -
Page 39: 9 Faqs
Honeywell VISTA Series Products User Manual 9 FAQs Question: How do I address the problem that some employees fail to pass the fingerprint verification more often than not? Answer: The following factors will make fingerprint verification hard or even impossible for some employees: •. The fingerprints of some fingers wear out. ‚. The fingers have too many wrinkles which change frequently. ƒ The skin on the fingers peels off badly. For users whose fingerprints are beyond recognition, they can delete these fingerprints and enroll them again or enroll a fingerprint of another finger. It is recommended to select fingers with good fingerprint quality (few wrinkles, no peelingoff and distinct fingerprint) for fingerprint enrollment. Press the finger flatly on the fingerprint sensor and be sure that the pad (not the tip) covers as much of the sensor window as possible. Perform fingerprint match test after finishing enrollment. It is recommended to enroll the fingerprints of several fingers as backup. Furthermore, the FRT provides the 1:1 matching and password verification functions especially for users who have difficulty in or cannot pass fingerprint verification. Question: What are the possible causes of FRT communication failure? Answer: The possible causes are listed as follows: • The setting of communication port is incorrect. The port set for communication is not the COM port actually used. ‚ The setting of the communication port baud rate of the PC is not consistent with that of the FRT. ƒ The FRT is not connected with the power supply or the PC. „ The FRT is connected with the PC but not powered on. … The No. of the connected terminal is incorrect. † The data cable or converter is faulty. ... - Page 40 Honeywell VISTA Series Products User Manual ‚ The connection cable of fingerprint sensor comes loose or disconnected. ƒ The chip of the main board is faulty. For the last two cases, contact the supplier and return the FRT for maintenance. Question: Why does a failure or error occurs when I read the attendance data while I can download fingerprint and password data properly? How to fix it? Answer: This problem may relate to the data cable, converter or the COM port setting of the PC. You may try decreasing the baud rate of the PC and FRT, for example, set it to 19200 or 9600 before reading the attendance data again. 36 ...
-
Page 41: 10 Appendix
Honeywell VISTA Series Products User Manual 10 Appendix The functions described in Appendix are all optional. If you need FRTs that support these functions, please consult our commercial representatives or presales technical support engineers. 10.1 USB USB Host The FRT is used as the USB Host to externally connect with a USB pen drive for data exchange. The conventional fingerprint readers transfer data only through the RS232, RS485 or Ethernet. Bulk data transfer may take a long time due to the restriction of physical conditions. The USB far outperforms any other previous transfer modes in terms of data transfer rate. Insert the USB pen drive to the USB slot on the FRT, download data to the USB pen drive, and then connect the USB pen drive to a computer to import the data to the computer. Further, the FRT also supports the exchange of user information and fingerprint data between two devices, which helps dispense with the hassle of conventional cable connection for data transfer between the FRT and computers. For the operations of the FRT used as the USB host, see 5.USB Pen Drive 10.2 Short Message FRTs of some models support the transfer of public and private short messages at the specified time and for a specified individual. You can edit public or short messages through the background software and then upload them to the FRT. The public short messages are displayed on the screen all the time once the FRT is started, while private short messages are displayed upon the fingerprint verification. This function helps reduce the ... -
Page 42: Masterslave Function Ê
Honeywell VISTA Series Products User Manual supports multiple verification modes including the fingerprint verification, password verification, card verification, card + fingerprint verification and card + password verification to meet the diversified customer needs. EM Readonly Card The EM Readonly Card supports thick (1.88 mm), thin (0.88 mm) and mediumthickness (1.05 mm) ID/EM cards with working frequency of 125 kHz and card reading distance of 5m. Mifare Card To accommodate the market demand for the currently popular RF cards, we have developed the FRT with noncontact RF Mifare card reader module. By integrating the Mifare card, the FRT can be conveniently ... - Page 43 Honeywell VISTA Series Products User Manual Currently, three modesRS232, Wiegand and RS485 are applicable for the connection of the master and the slave. Of the three, RS232 is less often used due to its deficiency that its connection distance is short. For example, it can be used when the master and the slave are just installed respectively inside and outside a door. Its connection principle is similar to that of RS485, which is omitted here. The Wiegand connection is widely used, most of whose devices on the market are applicable to the master and the slave. RS485, whose transmission distance is great (however it is recommended that the distance should not be over 600 meters), applies to most occasions, but the slave must be equipped with the inBIO reader (which is used for collecting fingerprint or swiping card). If Wiegand connection is to be used, the connection and setting for antipassback are as follows: 1)Select model: Master machine: Machine with Wiegand in function. Slave machine: Machine with Wiegand Out function. Masterslave menu setting: This machine supports out, in, outin, No, No and saved antipass back (enter Menu > setting > system setting > advanced setting > antipassback). 3)Modify device’s Wiegand output format: If the two devices are communicating, only Wiegand signals without device ID can be received. Enter device Menu > Comm. Opt > Wiegand option or enter software: Basic setting > device management > Wiegand, to modify "defined format" as "wiegand26 without device ID". 4)Enroll user: The user must be on master machine and slave machine at the same time, and user PIN must be the same. Therefore, it is necessary to enroll user on master machine and slave machine at the same time. 5) Connection instruction: Wiegand communication is adopted for master machine and slave machine. Refer to the following for ...
-
Page 44: Wiegand Protocol
Honeywell VISTA Series Products User Manual Master Slave 485+ <> 485+ 485 <> 485 GND <> GND 3. The Use of the Master and the Slave After the devices are started, the master works the same as common access control. The slave cannot verify. When a fingerprint is pressed or a card is swiped on the slave, the indicator will blink and "click, click" will ... -
Page 45: Daylight Saving Time (Time Zone Settings)
Honeywell VISTA Series Products User Manual 1 2 9 10 25 26 EP FC CC OP Table 2 Definition of Fields Field Purpose Even Parity bit (EP) is judged based on field 1 to 13 bit. EP is 1 if the ... -
Page 46: Environmentfriendly Use Description
Honeywell VISTA Series Products User Manual To meet the DLST requirement, the FRT supports the DLST function to adjust forward one hour at ×× (Hour): ×× (Minute) ×× (Day) ×× (Month) and backward one hour at ×× (Hour): ×× (Minute) ×× (Day) ×× (Month). For the operations of the FRT menu settings, see 5.1.6 Daylight Saving Time. 10.7 EnvironmentFriendly Use Description The Environment Friendly Use Period (EFUP) marked on this product refers to the safety period of time in which the product is used under the conditions specified in the product instructions without leakage of noxious and harmful substances. The EFUP of this product does not cover the consumable parts that need to be replaced on a regular basis such as batteries and so on. The EFUP of batteries is 5 years. Names and Concentration of Toxic and Hazardous Substances or Elements Toxic and Hazardous Substances or Elements Parts Name Pb Hg ...
