Power supply
PCIe expansion cards installed in riser board
GPU card

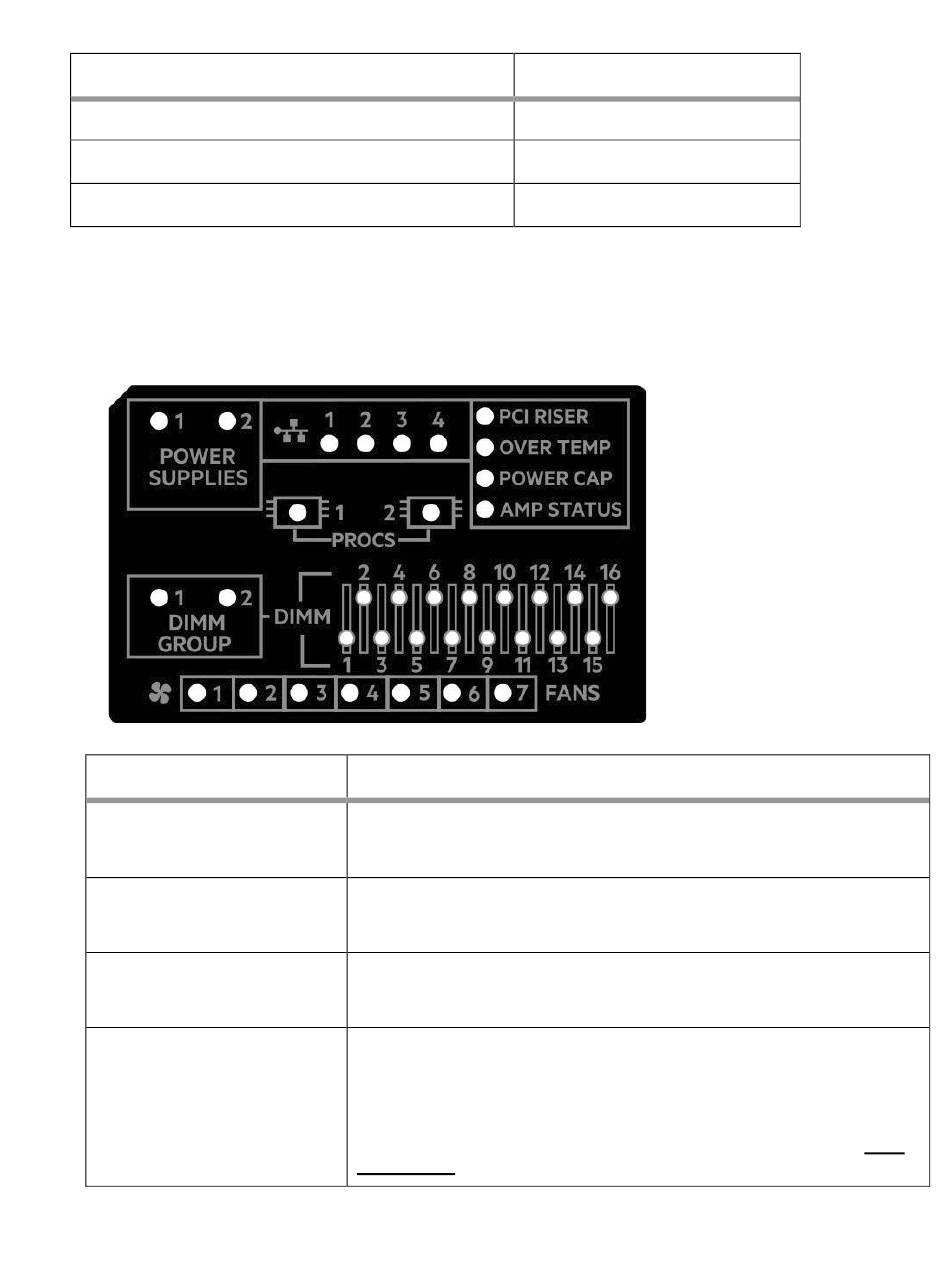

The Systems Insight Display LEDs
The Systems Insight Display LEDs represent the system board layout. The display enables diagnosis with the
access panel installed.
Description
Processor LEDs
DIMM LEDs
Fan LEDs
NIC LEDs1
Subsystem
Off = Normal
Amber = Failed processor
Off = Normal
Amber = Failed DIMM or configuration issue
Off = Normal
Amber = Failed fan or missing fan
Off = No link to network
Solid green = Network link
Flashing green = Network link with activity
If power is off, the front panel LED is not active. For status, see Rear
panel LEDs
Hitachi Advanced Server HA810 G2 User Guide
LED behavior
10 flashes
11 flashes
13 flashes
Status
13
