Summary of Contents for Draytek VigorSwitch P2540xs

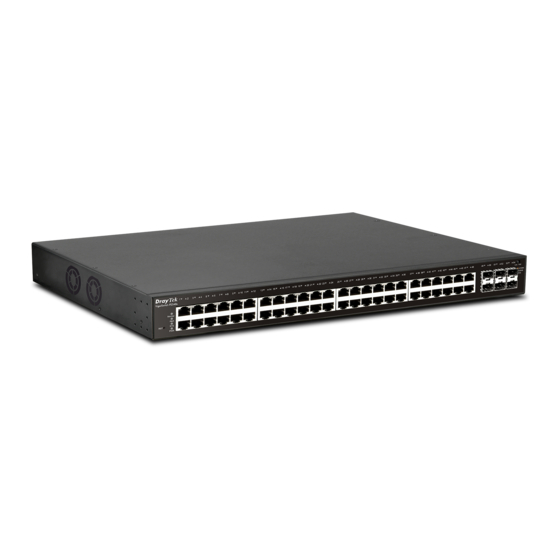

- Page 1 VigorSwitch P2540xs L2+ Managed Switch Quick Start Guide Version: 1.1 Firmware Version: V3.7.4 (For future update, please visit DrayTek web site) Date: September 30, 2022...
- Page 2 VigorSwitch P2540xs Quick Start Guide Rack Mount Kit (brackets) Console Cable The type of the power cord depends on the country that the switch will be installed. UK-type Power Cord EU-type Power Cord USA/Taiwan-type Power Cord AU/NZ-type Power Cord If any of these items is found missing or damaged, please contact your local...
- Page 3 PoE Port 1 ~ 48 Port 1 ~ 48 (GbE RJ45) Port 49 ~ 54 (SFP+) Status Explanation An alert for system failure due to overheating or wrong On (Red) voltage. Monitor The device is in normal condition and running normally. Blinking (Green) The power is over (>) 80% watts PoE power budget.
- Page 4 Power Output -- Note IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported PoE Power Budget –- 400 Watts (Max) ...
- Page 5 This section will guide you to install the switch through hardware connection and configure the switch’s settings through web browser. Before starting to configure the switch, you have to connect your devices correctly. Use a Cat. 5e twisted-pair cable to connect a PoE device to the port (1~48) of this switch.
- Page 6 Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector. If a PC directly connects to the switch, you have to setup the same subnet mask for PC and the switch.
-
Page 7: Gnu General Public License
This DrayTek product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. A Limited Warranty is offered on DrayTek products. This Limited Warranty does not cover any software applications or programs. - Page 8 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd, Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product Product name: PoE 48+6 ports 10G up-link Switch Model number: VigorSwitch P2540xs ...
-
Page 9: Regulatory Information
(2) This device may accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. More update, please visit www.draytek.com.
