Summary of Contents for Draytek VigorSwitch P2500
- Page 2 VigorSwitch P2500 / G2500 L2 Managed Gigabit Switch Quick Start Guide Version: 1.0 Firmware Version: V2.4.1 (For future update, please visit DrayTek web site) Date: March 18, 2019...
- Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks ...
-
Page 4: Eu Declaration Of Conformity
EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: PoE 50-Port Gigabit Switch Model number: VigorSwitch P2500 ... - Page 5 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fu Shing Road, HuKou County, Hsin-Chu Industry Park, Hsinchu 300, Taiwan , R.O.C., declare under our sole responsibility that the product Product name: 50-Port Gigabit Switch Model number: VigorSwitch G2500 ...
-
Page 6: Regulatory Information
(2) This device may accept any interference received, including interference that may cause undesired operation. Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. More update, please visit www.draytek.com. - Page 7 Web registration is preferred. You can register your Vigor switch via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all switches will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and...

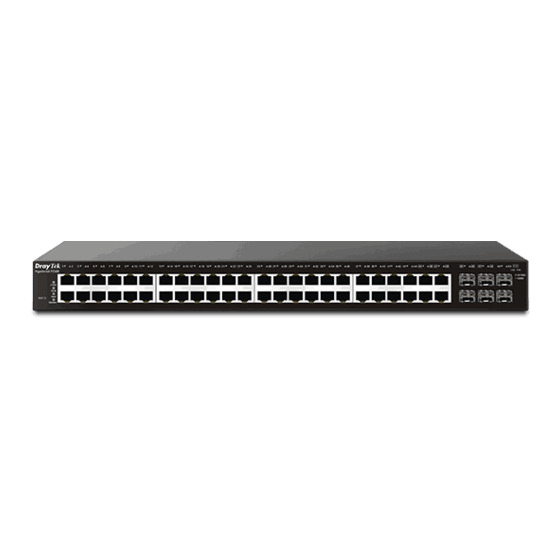

- Page 8 The network administrator can logon the switch to monitor, configure and control each port’s activity. In addition, the switch implements the QoS (Quality of Service) and VLAN. It is suitable for office application. VigorSwitch P2500 (with PoE) VigorSwitch G2500 (without PoE) Rack Mount Kit (brackets) & Quick Start...
- Page 9 RJ45 or SFP Combo PoE/ RJ45 LNK/ACT SFP LNK/ACT LNK/ACT Port 45 to 48 Port 1 to 44 Port 49 to 50 RJ45 or SFP Combo SFP LNK/ACT RJ45 LNK/ACT LNK/ACT Port 45 to 48 Port 49 to 50 Port 1 to 44 Status Explanation The device is powered on and running...
- Page 10 Left: LAN port connection status. Used to perform telnet command control. Console Power inlet for AC input (100~240V/AC, 50/60Hz). The following limitation is suitable for VigorSwitch P2500 Note Power Output -- IEEE 802.3af Max. 15.4W Output Supported IEEE 802.3at Max. 30W Output Supported ...
- Page 11 This section will guide you to install the switch through hardware connection and configure the switch’s settings through web browser. Before starting to configure the switch, you have to connect your devices correctly. Note Power the device to this switch and get 54V power source through Cat.
- Page 12 The switch can be installed easily by using rack mount kit. Attach the brackets to the chassis of a 19-inch rack. The second bracket attaches the other side of the chassis as above procedure. After the bracket installation, the VigorSwitch’s chassis can be installed in a rack by using four screws for each side of the rack.
- Page 13 In this section, we take VigorSwitch P2500 as an example: Before using the switch, perform the following steps: 1. Set up a physical path between the configured the switch and a PC by a qualified UTP Cat. 5e cable with RJ-45 connector.
- Page 14 This DrayTek product uses software partially or completely licensed under the terms of the GNU GENERAL PUBLIC LICENSE. The author of the software does not provide any warranty. A Limited Warranty is offered on DrayTek products. This Limited Warranty does not cover any software applications or programs.
