Frame-mount installation
If you cannot flush-mount the KTR-11 using the KTR-11-15 wall brackets, mount the unit in a framed cutout.
To frame-mount the unit, do the following:
1. Locate the four holes—two on each side—of the face/badge reader (Figure 3). You may need to
remove the cameras and the mirror assembly if access to any of the holes is obstructed.
2. Bring wires and cables into the KTR-11 through the appropriate openings and place the face/badge
reader in the wall cutout.
3. Secure the unit in the framed opening with appropriate fasteners through the four holes.
4. Reinstall the cameras and/or the mirror assembly if removed.

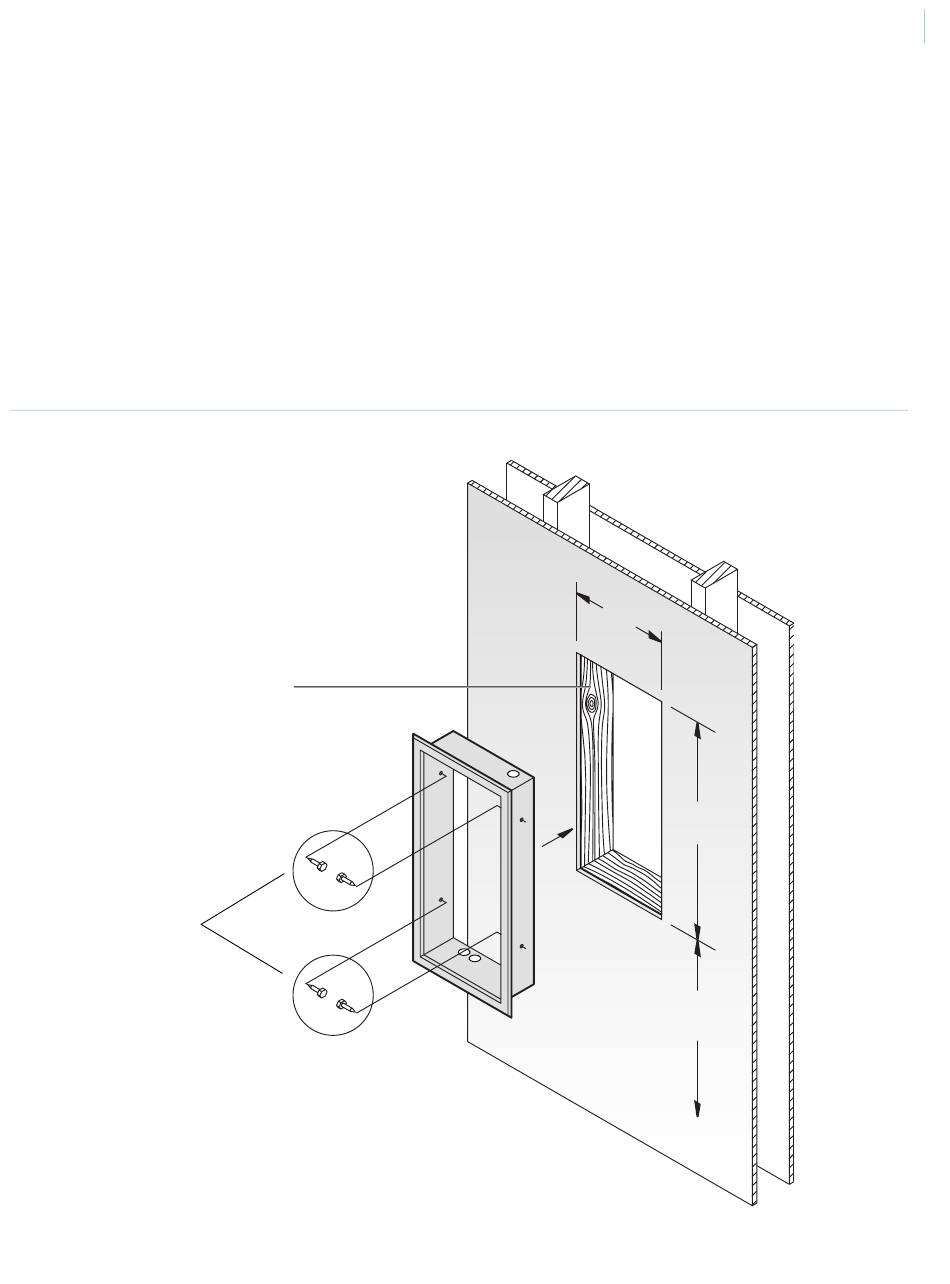

Figure 3. Mounting the KTR-11 in a framed cutout
Lag bolts
Framed hole
9.2 in.
(234 mm)
20.4 in.
(518 mm)
48 in. to floor
(1.22 m)
