GE ARITECH ATS1190 Manual

ATS 1190 ATS1192
Smart Card Reader
I
NTRODUCTION
The ATS1190/1192 Smart Card Reader is a multifunction,
all-purpose proximity card reader suitable for all locations requiring
a short-range reader. The reader can be connected directly to
the ATS Control Panel (see figure
a Menu system accessible via the BUS or by Configuration
cards programmed through Titan and the Aritech Smart Card
Programmer (ATS1621/22).
The reader operates from 9 to 14 VDC. It has a quiescent
current consumption of less than 25 mA and less than 80 mA
when reading a card. The ATS1190 is supplied standard with
a white removable dress cover, which can be interchanged with
one of four other colours available.
The ATS1192 is a heavy-duty version designed for standard
door frames.
Both the ATS1190 & ATS1192 are waterproof.

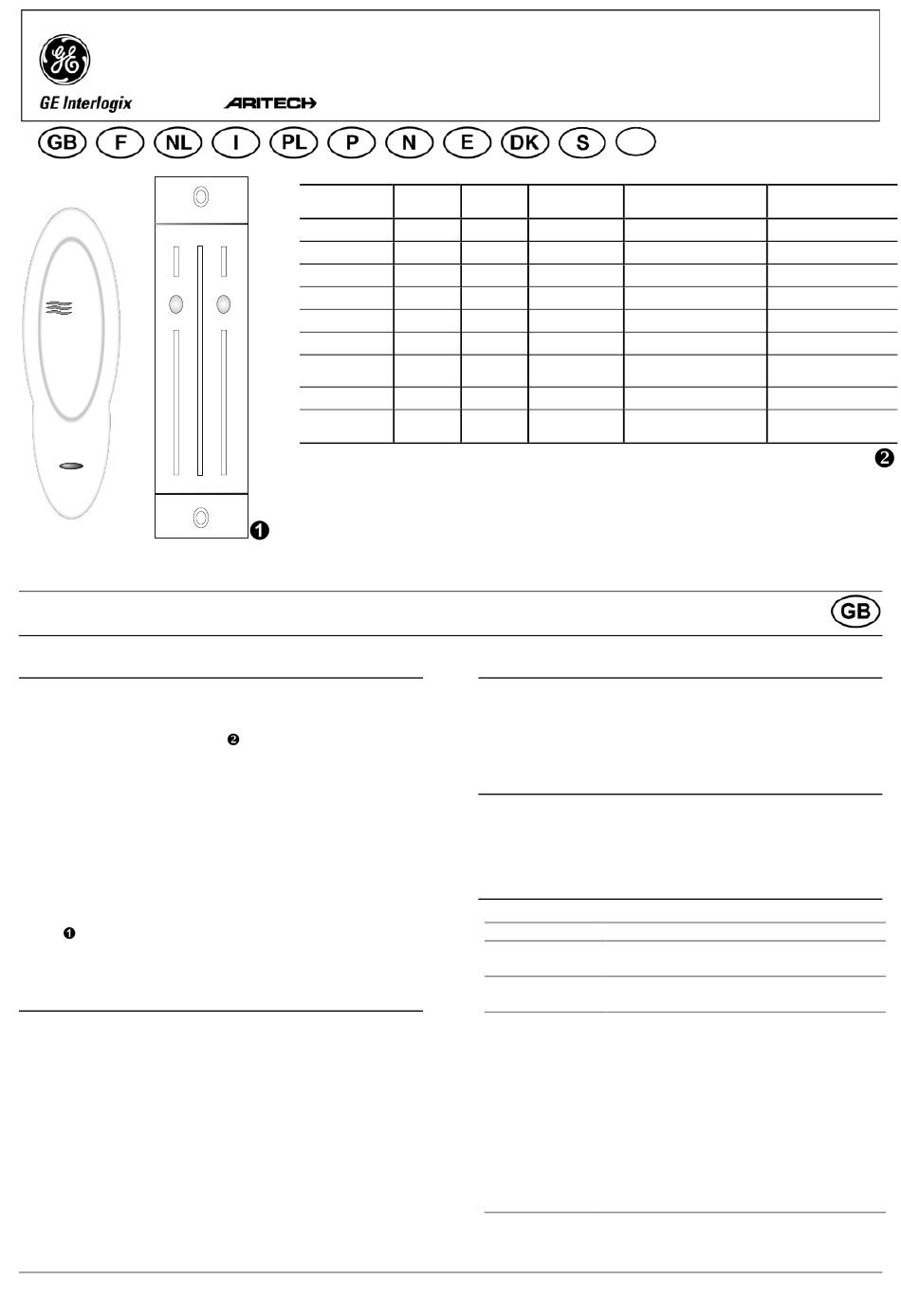

Figure : Smart Card Reader
Blue LED: Door open
Disarmed
M
OUNTING
The reader can be mounted on any flat surface by two pan
head screws, 3.0-3.5 mm diameter, located under the dress
cover. A slightly reduced range will be experienced when mounted
on metal surfaces. If mounting in an outdoor environment, ensure
that the blue LED is at the top.
It is not recommended to use countersunk screws.
For the ATS1190 the dress cover can be removed to expose
the mounting screw by gently prizing the sides away from the
main body to release the retaining clips and gently pulling on
the connection cord. Do not use excessive force or the reader
can be irreparably damaged.
After mounting, gently press the cover over the main body
until it locks into place.
ATS1190/1192 ATS1105 ATS1170 ATS2000/3000
Kabel
Rot
Schwarz
Grün
Weiß
Gelb
Braun
Blau
Violett
). It is configurable through
Red LED: Door open
Armed
© 2003 GE Interlogix B.V.
All rights reserved
/4000
J2 J1 J1
12 V 12 V 12 V
0 V 0 V 0 V
D0 D0 D0
D1 D1 D1
- L2 -
- L1 -
- L3 -
- - -
RAS
ADDRESSING
The address of the reader for BUS operations is set to the
default address RAS 16. Using a configuration card or accessing
its on-line Menu system when connected to the RS485 BUS can
change this. See the Programming Guide, Reader Address, for
further details.
T
AMPER
The reader is provided with a Tamper facility. When connected
to the BUS, Tamper data is transmitted to the Advisor Master
with system data. An external Open Collector output (violet wire)
can be configured as a Tamper control for both online and
offline operation.
R
EADER WIRING
Red:
Black: 0 Volts
Green: D0 /
Clock
White: D1 /
Data
Brown: LED 1
ATS1190/1192
Smart Card-Leser
D
ATS1250/1260
Tür 1, 2, 3, 4
12 V
0 V
D0
D1
L2
L1
BZ
Mit 4K7 (in Serie) Mit 4K7 (in Serie)
zu Alarmeingang 3 zu Alarmeingang 3
Positive 9 to 14 VDC supply
DC supply ground
RS485 Data - Wiegand Data 0
Absolute maximum, 12 V @ 10 mA
RS485 Data + Wiegand Data 1
Absolute maximum, 12 V @ 10 mA
Offline LED control configured to "Two Wire
Control" will control the red LED only
Wire grounded: Red LED on
Wire open: Red LED off
Wire at +5 V to +12 V: Red LED off or,
offline LED control configured to "One
Wire Control" will control both the red
and blue LED's
Wire grounded: Blue LED on
Wire open circuit: Both LED's off
Wire at + 5 V to 12 V: Red LED on
Absolute maximum, 14 V
MAINST-ATS1190
ATS1250/1260
Localbus
Komm.
12 V
0 V
D0
D1
-
Austrittstaster
( => 0 V)
-
08/2003
