Panasonic EH-HS95 Service Manual
  1. Manuals
  2. Brands
  3. Panasonic Manuals
  4. Styling Iron
  5. EH-HS95
  6. Service manual

Panasonic EH-HS95 Service Manual

Hide thumbs Also See for EH-HS95:

Advertisement

Quick Links

Download this manual

TABLE OF CONTENTS

1 Warning -------------------------------------------------------------- 2
2 Specifications ----------------------------------------------------- 2
3 Troubleshooting Guide ----------------------------------------- 3
5 Wiring Connection Diagram ---------------------------------10
6 Schematic Diagram ---------------------------------------------11

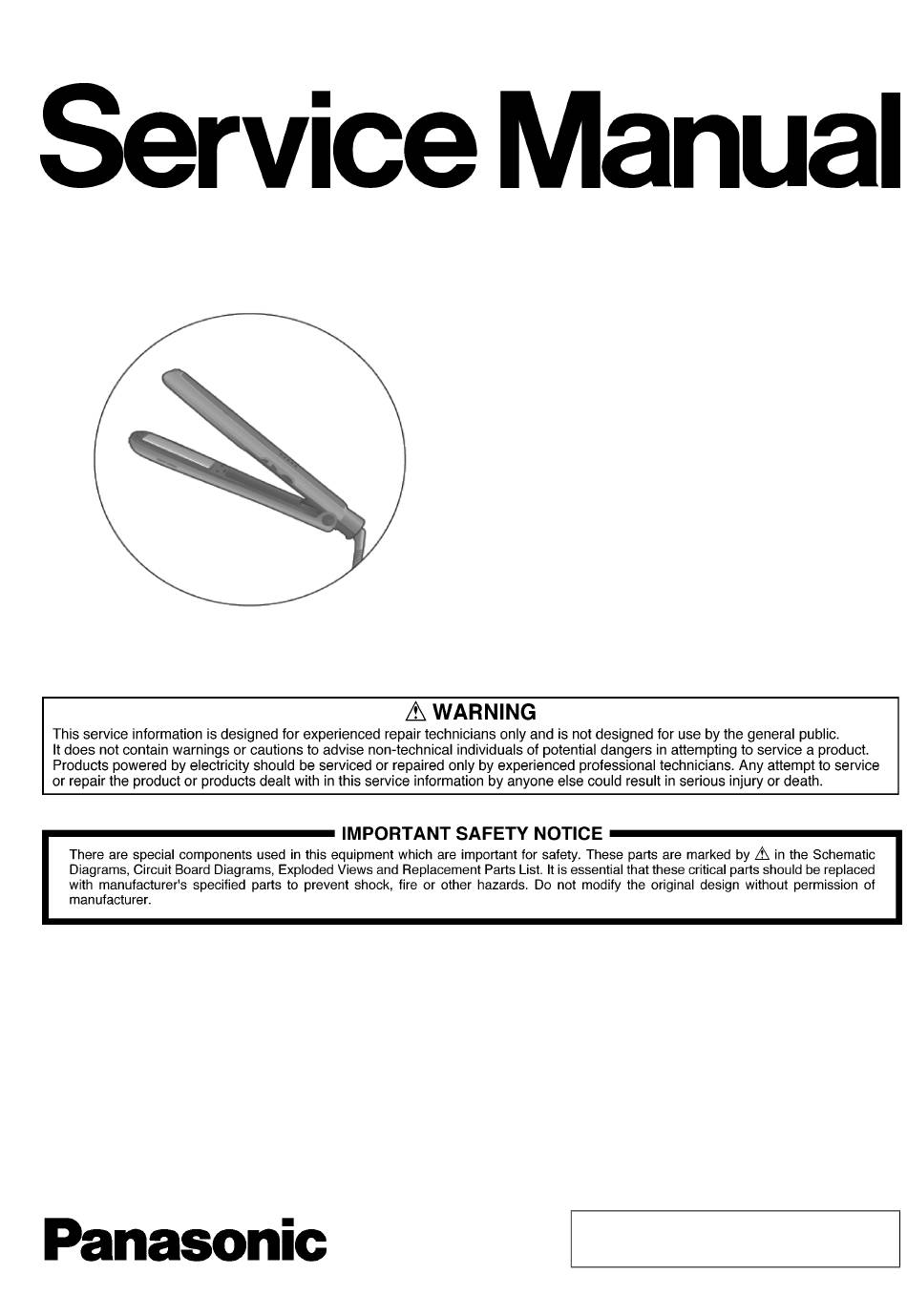

(Household) Hair Straightener
Model No.
Asia
PAGE
© Panasonic Corporation, 2013.
Unauthorized copying and distribution is a violation
of law.
Order Number PEWT1311A62CE
EH-HS95
PAGE

Advertisement

loading

Related Manuals for Panasonic EH-HS95

Summary of Contents for Panasonic EH-HS95

  • Page 1: Table Of Contents

    3 Troubleshooting Guide ----------------------------------------- 3 4 Disassembly and Assembly Instructions ---------------- 5 5 Wiring Connection Diagram ---------------------------------10 6 Schematic Diagram ---------------------------------------------11 7 Exploded View and Replacement Parts List -----------12 © Panasonic Corporation, 2013. Unauthorized copying and distribution is a violation of law.

  • Page 2: Warning

    1 Warning Caution: • Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder- ing iron, please be careful not to heat too long.

  • Page 3: Troubleshooting Guide

    3 Troubleshooting Guide Refer to Wiring Connection Diagram.

  • Page 5: Disassembly And Assembly Instructions

    4 Disassembly and Assembly Instructions 4.1. Disassembly Instructions 1. Remove Shaft Cover from Main Body by Slotted screw 4. Remove Pivot spring by gripping and pulling it out from driver (Minus Driver). the Main body. NOTE: Use NEW Shaft cover once disassembling due to easily breakage or looseness of hook.
  • Page 6 6. Remove Tapping Screw from Housing side and press 8. Take off Iron Plate and (Micro) PCB Assembly 200C from Plate side Phillips screw driver (Plus Driver). Housing B. • Take off Iron Plate from Housing B. Slide and take off Iron Plate from Hook. 7.
  • Page 7 10. Take off Iron Plate and (High Voltage Igniter) PCB Assembly from Press Plate. • Take off Iron Plate from Press Plate. • Take off (High Voltage Ignitre) PCB Assembly from Press Plate.
  • Page 8 4.2. Assembly Instructions 1. Shaft Cover fixing point. Have control direction. 2. Housing B Assembly Point. When insert Power cord must be surely assembly in Connector Cover follow as below.
  • Page 9 4.3. Lead wire of Iron Plate (Heater A , Heater B) and Circuit arrangement points. 1. Lead wire of Iron Plate (Heater A assembly block) and (Micro) PCB Assembly 200C arrangement follow as below. 2. Lead wire of Iron Plate (Heater B assembly block) and (High Voltage Igniter) PCB Assembly arrangement follow as below. 3.

  • Page 10: Wiring Connection Diagram

    5 Wiring Connection Diagram...

  • Page 11: Schematic Diagram

    6 Schematic Diagram...

  • Page 12: Exploded View And Replacement Parts List

    7 Exploded View and Replacement Parts List 7.1. Exploded View All parts are supplied from PMFTH-AP through PLAP...
