DANGER
Failure to follow these instructions
could result in fire or explosion that
could cause property damage, personal
injury or death.
DANGER
DO NOT use Grill indoors or in any
enclosed area. DO NOT use in or on
boats or recreational vehicles. Toxic
fumes and carbon monoxide can
accumulate and cause asphyxiation.
WARNING
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operation
and maintenance instructions
thoroughly before installing or
servicing this equipment.
PROP 65 WARNING
Chemicals known to the state of
California to cause cancer, birth
defects or other reproductive harm
are created by the combustion of
propane.
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
JXG4604SS
Owner's Manual

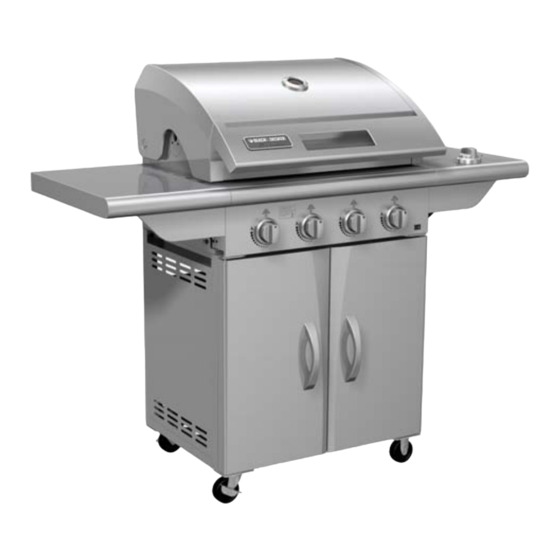

4-Burner LP Gas Grill
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. IF
YOU ARE ASSEMBLING THIS UNIT FOR SOMEONE ELSE, GIVE
THIS MANUAL TO HIM OR HER TO SAVE FOR FUTURE
REFERENCE.
FOR CUSTOMER SERVICE, CALL 1-888-841-7304 (TOLL-FREE)
07:00 A.M. – 05:00 P.M. (PST), MONDAY-FRIDAY, EMAIL US AT
CUSTOMER.SERVICE@BONDMFG.COM OR VISIT OUR
WEBSITE AT WWW.BONDMFG.COM.
0
ITEM# JXG4604SS

Advertisement

Table of Contents
loading

Related Manuals for Black & Decker 4500 Series

Summary of Contents for Black & Decker 4500 Series

  • Page 1 ITEM# JXG4604SS DANGER Failure to follow these instructions could result in fire or explosion that 4-Burner LP Gas Grill could cause property damage, personal injury or death. DANGER DO NOT use Grill indoors or in any enclosed area. DO NOT use in or on boats or recreational vehicles.
  • Page 2 QUESTIONS, PROBLEMS, MISSING PARTS WITH THIS PRODUCT? DO NOT RETURN TO YOUR RETAILER. PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT 1-888-841-7304, 7:00AM to 5:00PM (PST), MONDAY THROUGH FRIDAY, OR EMAIL US AT CUSTOMER.SERVICE@BONDMFG.COM OR VISIT OUR WEBSITE AT WWW.BONDMFG.COM Grill Operation 1-2-3 Before Grilling Step 1 Keep your grill a safe distance away from your property.*...

  • Page 3: Table Of Contents

    Table of Contents For Your Safety....................3 Package Contents....................5 Illustrated Parts List ..................6 Hardware List....................7 Assembly Instructions..................8 Operating Your Grill..................13 Connecting & Disconnecting The Gas Cylinder........... 14 Checking for Leaks..................14 Lighting Your Grill....................14 Excess Flow Safety Valve Reset Procedure............17 Care and Maintenance..................18 Troubleshooting....................19 Warranty Program.....................21 JXG4604SS...

  • Page 4: For Your Safety

    Dear Valued Customer, Congratulations on the purchase of your new Black & Decker 4500 Series Gas Grill!! In this manual, you will find assembly instructions, suggestions for grilling and helpful hints, as well as guidelines for the safe operation, proper care and use of your grill.
  • Page 5 Safe Locations For Use Of This Outdoor Grill DANGER Never use this outdoor grill inside any building, garage, shed or breezeway, or inside any boat, trailer or recreational vehicle to prevent a possible fire and to prevent the possibility of carbon monoxide poisoning or asphyxiation. WARNINGS Do not use this appliance under overhead combustible surface or covered area (e.g.

  • Page 6: Package Contents

    Package Contents JXG4604SS Owner’s Manual...

  • Page 7: Illustrated Parts List

    Illustrated Parts List C. Cart front D. Cart right side A. Cart back panel 1 pc. B. Cart left side panel 1 pc. 1 pc. 1 pc. frame panel E. Cart bottom panel F. Right spare tank stopper G. Tank clip H.

  • Page 8: Hardware List

    Hardware List AAA: M6X 10 flat bolt 4 pcs. BBB: M6X 15 bolt 33 pcs. CCC: M4X 10 bolt 10 pcs. DDD: M6 flat washer 37 pcs. EEE: M6 spring washer 36 pcs. FFF: M4 flat washer 10 pcs. GGG: M4 spring washer 4 pcs.

  • Page 9: Assembly Instructions

    Assembly Instructions Remove all contents from the carton packaging. Make sure all parts are present before attempting assembly. Once the grill is fully assembled, go back and check to make certain all the bolts are secure. Tighten again using the screwdriver provided if necessary. Estimated Assembly Time: 40 minutes.
  • Page 10 Step 4 (Assemble the right spare tank stopper) a) Align the holes on the right spare tank stopper (F) with the pre-drilled holes on the right side panel. b) Insert one M4x10 bolt (CCC) with one M4 flat washer (FFF) into each pre-drilled hole. Tighten bolts by hand until secure.
  • Page 11 Step 7 (Assemble the body assembly with cart assembly) a) Unpack the regulator/ hose assembly (located underneath the firebox) prior to assembling the grill body to the cart. Pull out the regulator/hose to the cart side panel then go ahead to this step.
  • Page 12 Step 10 (Assemble the side burner) a) Open the side burner lid and place the side burner frame (R) on the right side table. Make certain the venturi tube is connected properly with the valve. b) Align the holes on the side burner frame (R) with the holes on the right side table.
  • Page 13 Step 13 (Heating plate, cooking grid and warming rack assembly) a) Place the heating plates (Y) upon the burners. b) Place the cooking grids (X) upon the heating plates. Place the warming rack (W) on the warming rack support as shown. d) Close the top lid.

  • Page 14: Operating Your Grill

    Fully Assembled View Left Side Right Side Operating the Grill CAUTION: Use only the regulator provided. If a replacement is necessary, call our customer service center. The use of unauthorized parts can create an unsafe condition or environment and will void the warranty. The propane gas supply cylinder used must be constructed and marked in accordance with the Specifications for Propane Gas Cylinders of the U.S.

  • Page 15: Connecting & Disconnecting The Gas Cylinder

    Connecting & Disconnecting the Gas Cylinder LP (Propane) Gas Supply Connection 1. Always place the propane cylinder on the tank brackets located on the right side of the cart. 2. Always confirm that all burner control knobs are in the OFF position before activating the gas supply. 3.
  • Page 16 WARNING: Attempting to light the burner with the lid closed may cause an explosion. Make sure there are no obstructions of airflow to the gas unit. Spiders and insects can nest and clog the burner/ venturi tube at the orifice. A clogged burner tube can lead to a fire beneath the appliance.
  • Page 17 FIG. A FIG. B FIG. C Poor combustion: Wavy, yellow Out of adjustment: Noisy hard blue Normal: Soft blue flames with yellow tips flames- too little air. flames – too much air. between I inch - 2 inches high. Burner Installation and adjustment 1.

  • Page 18: Excess Flow Safety Valve Reset Procedure

    Shutting Off Burners 1. Always turn the valve knob(s) clockwise to the ‘’HIGH’’ position, and then press and turn it to ‘’OFF’’. Never force the knob without pressing it: This could damage the valve. Promptly turn the gas supply to the “OFF” position at the propane cylinder. Close the lid of the grill.

  • Page 19: Care And Maintenance

    Care and Maintenance IMPORTANT Always allow to completely cool off before covering your grill to prevent corrosion from condensation. Caution: All cleaning and maintenance should be done when the grill is cool, with the fuel supply turned off at the control dial and the propane cylinder disconnected.

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible Cause Prevention/Cure Wires and/or electrode covered Burner will not light using knobs or igniter. Clean wire and /or electrode with with cooking residue. rubbing alcohol. Electrode and burners are wet. Wipe dry with cloth. Electrode cracked or broken – Replace electrode.
  • Page 21 Turn knobs to OFF. Turn gas OFF at Persistent grease fire. Grease trapped by food buildup propane tank. Leave lid in closed position around burner system. and let fire burn out. After grill cools, remove and clean all parts. Flashback [fire in burner tubes]. Burner and /or burner tubes are Clean burner and/or burner tube(s).

  • Page 22: Warranty Program

    Warranty Program Proof of purchase is required to access this warranty program, which is in effect from the date of purchase. If unable to provide proof of purchase or after the warranty has expired, customers will be subject to parts, shipping and handling fees. Full 30-Day Warranty Any missing parts can be replaced at no charge within 30 days from the date of purchase with a valid proof of purchase.
