For Vigor2910I - Draytek Vigor 2910 Quick Start Manual

1 . 1 . 3 F o r V i g o r 2
1 . 1 . 3 F o r V i g o r 2

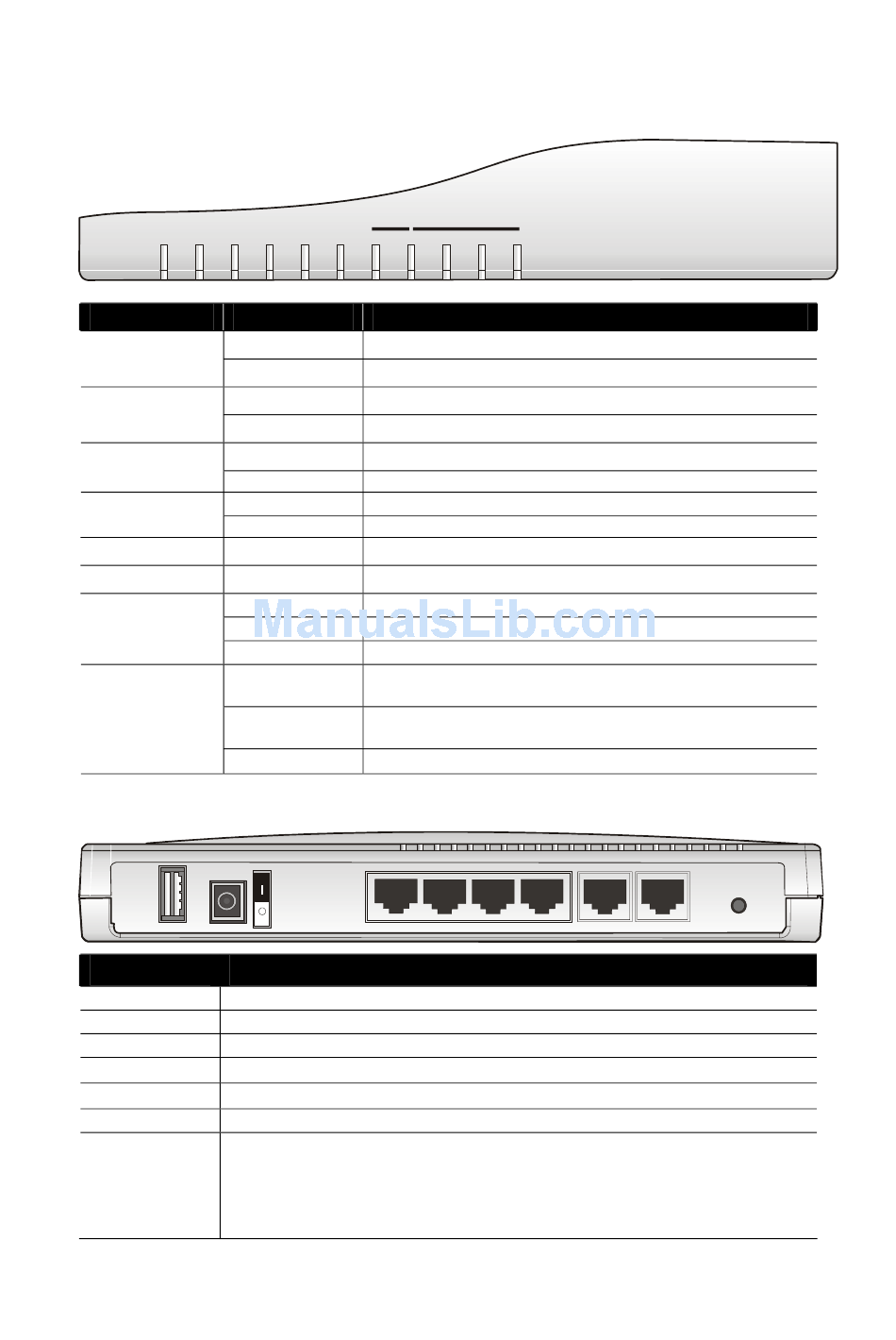

L E D E x p l a n a t i o n
L E D E x p l a n a t i o n
ACT ISDN QoS Attack VPN
LED Status
ACT (Activity) Blinking
Off
On
ISDN
Blinking
QoS On
Off
Attack On
Blinking
VPN On
Printer On
WAN(W1-W2) Orange
Green
Blinking
Orange
LAN (P1, P2,
P3, P4)
Green
Blinking
C C o o n n n n e e c c t t o o r r E E x x p p l l a a
Printer
PWR
Interface Description
Printer Connecter for a USB printer.
PWR Connecter for a power adapter with 12-15VDC.
ON/OFF Power Switch.
LAN P4 – P1 Connecters for local networked devices.
W2/W1 Connecter for accessing Internet with the ADSL,ADSL2/2+ line
ISDN Connecter for NT1 (or NT1+) box provided by ISDN service provider.
Factory Reset Restore the default settings.
Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for
more than 5 seconds. When you see the ACT LED begins to blink rapidly than
usual, release the button. Then the router will restart with the factory default
configuration.
9 1 0 i
9 1 0 i
WAN
/
Printer W1 W2 P1
Explanation
The router is powered on and running properly.
The router is powered off.
The ISDN network is correctly setup.
A successful connection on the ISDN BRI B1/B2 channel.
The QoS function is active.
The QoS function is inactive.
DoS Defense function is active.
An attack is detected.
The VPN tunnel is launched.
The USB interface printer is ready.
A normal 10Mbps WAN link is ready.
A normal 100Mbps WAN link is ready.
Ethernet packets are transmitting.
A normal 10Mbps connection is through its corresponding
port.
A normal 100Mbps connection is through its corresponding
port.
Ethernet packets are transmitting.
n n a a t t i i o o n n
P4
LAN
P2 P3 P4
P3 P2 P1/W2 W1
4
Factory
Reset
ISDN
