Honeywell Eclipse Installing

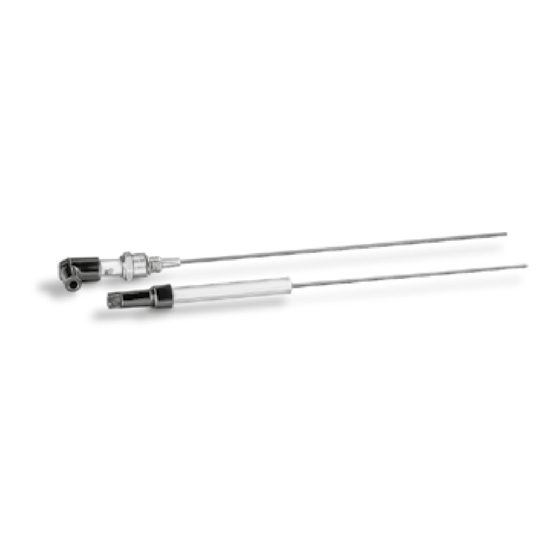

Installing flame monitoring equipment on
eclipse burners
Contents
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Product description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Troublelshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
oPeRAtInG InstRUCtIons
Version · Edition 12.20 · 32-00267-01 · EN
sAFetY
Please read and keep in a safe place
Please read through these instructions carefully before
installing or operating. Following the installation, pass the instructions
on to the operator. This unit must be installed and commissioned
in accordance with the regulations and standards in force. These
instructions can also be found at www.docuthek.com.
explanation of symbols
1 , 2 , 3 , a , b , c = Action
➔ = Instruction
Liability
We will not be held liable for damage resulting from non-observance
of the instructions and non-compliant use.
safety instructions
Information that is relevant for safety is indicated in the instructions
as follows:
DAnGeR
Indicates potentially fatal situations.
WARnInG
Indicates possible danger to life and limb.
CAUtIon
Indicates possible material damage.
All interventions may only be carried out by qualified gas techni-
cians. Electrical interventions may only be carried out by qualified
electricians.
Conversion, spare parts
All technical changes are prohibited. Only use OEM spare parts.
Disclaimer notice
In accordance with the manufacture's policy of continual product
improvement, the product presented in this brochure is subject to
change without notice or obligation.
The material in this manual is believed adequate for the intended
use of the product. If the product is used for purposes other than
those specified herein, confirmation of validity and suitability must
be obtained. Honeywell-Eclipse warrants that the product itself does
not infringe upon any United States patents. No further warranty is
expressed or implied.
