Model T10882
G0637 Cartridge Filter Replacement
with HEPA Filter Upgrade Kit

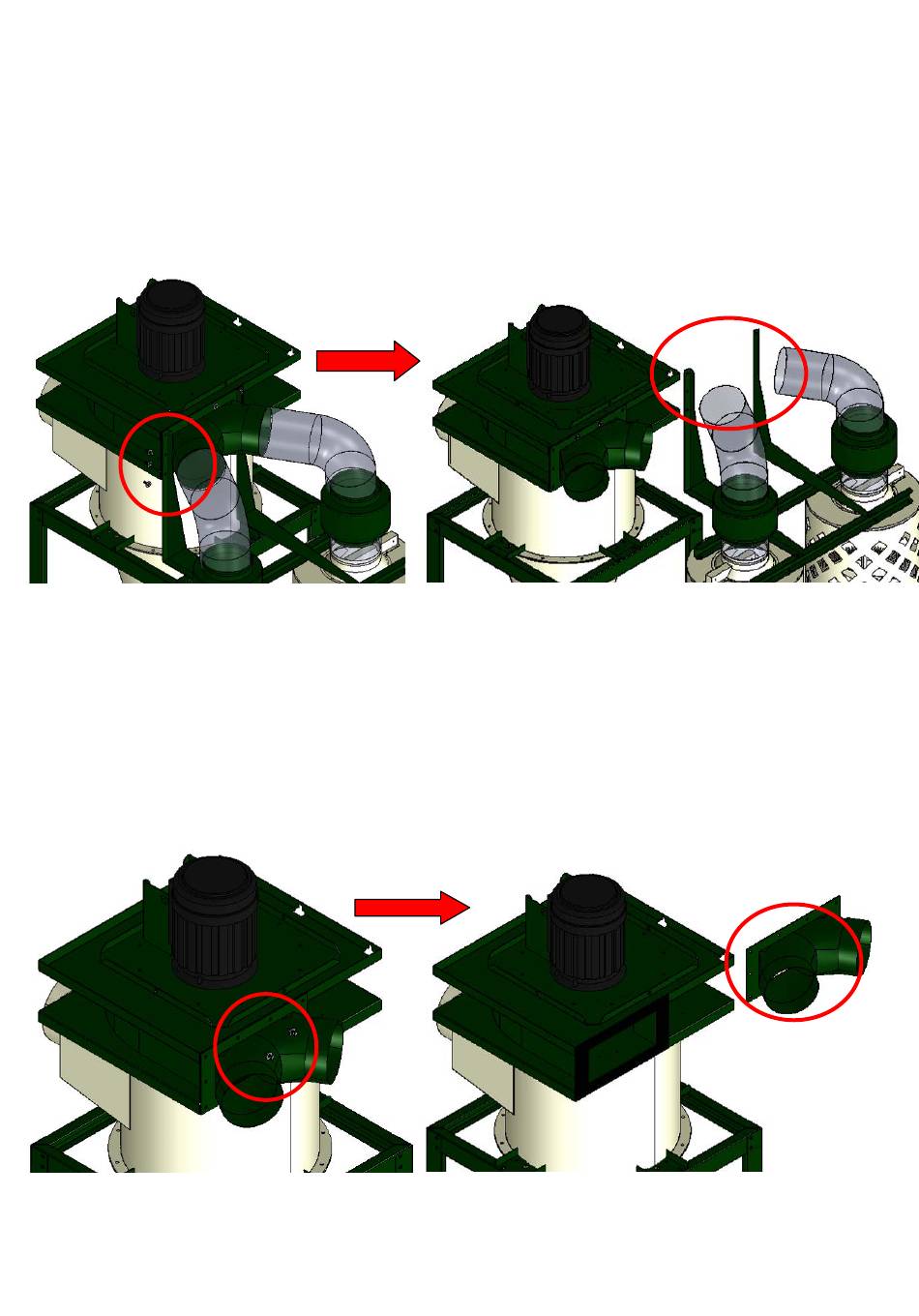

Step One:
Remove the filter L-braces from the blower housing, as shown above, by loosening and removing (6) 5/16" x
1" hex bolts, (12) 5/16" flat washers, and (6) 5/16" hex nuts. Remove and set the cartridge filter aside.
Step Two:
Remove the outlet port from the blower housing by loosening and removing (4) 5/16" x 1" hex bolts, (8) 5/16"
flat washers, and (4) 5/16" hex nuts.
Advertisement
Related Manuals for Grizzly T10882
Summary of Contents for Grizzly T10882
- Page 1 Model T10882 G0637 Cartridge Filter Replacement with HEPA Filter Upgrade Kit Step One: Remove the filter L-braces from the blower housing, as shown above, by loosening and removing (6) 5/16” x 1”...
- Page 2 Step Three: Remove the mounting bracket that secures the intake barrel to the upper leg stand by loosening and removing (8) 3/8” x 1-1/4” hex bolts, (16) 3/8” flat washers, and (8) 3/8” hex nuts. Next, loosen and remove (8) 3/8” x 3/4” hex bolts, (16) 3/8”...
- Page 3 Step Five: Attach the rubber gasket to the outlet opening on the blower housing, then attach the outlet connector by securing and fastening (10) 3/8” x 1” hex bolts, (20) 3/8” flat washers, and (10) 3/8” nuts. ...
- Page 4 Step Seven: Attach the HEPA leg stand to the outlet connector, as shown above, by securing and fastening (4) 3/8” x 1” hex bolts, (8) 3/8”...
- Page 5 Step Nine: Attach the rubber gasket to the outlet opening, then attach the filter adapter with the HEPA filter to the blower housing with (16) 3/8” x 1” hex bolts, (30) 3/8” flat washers, and (14) 3/8” nuts. Tighten and secure all bolts and nuts.
