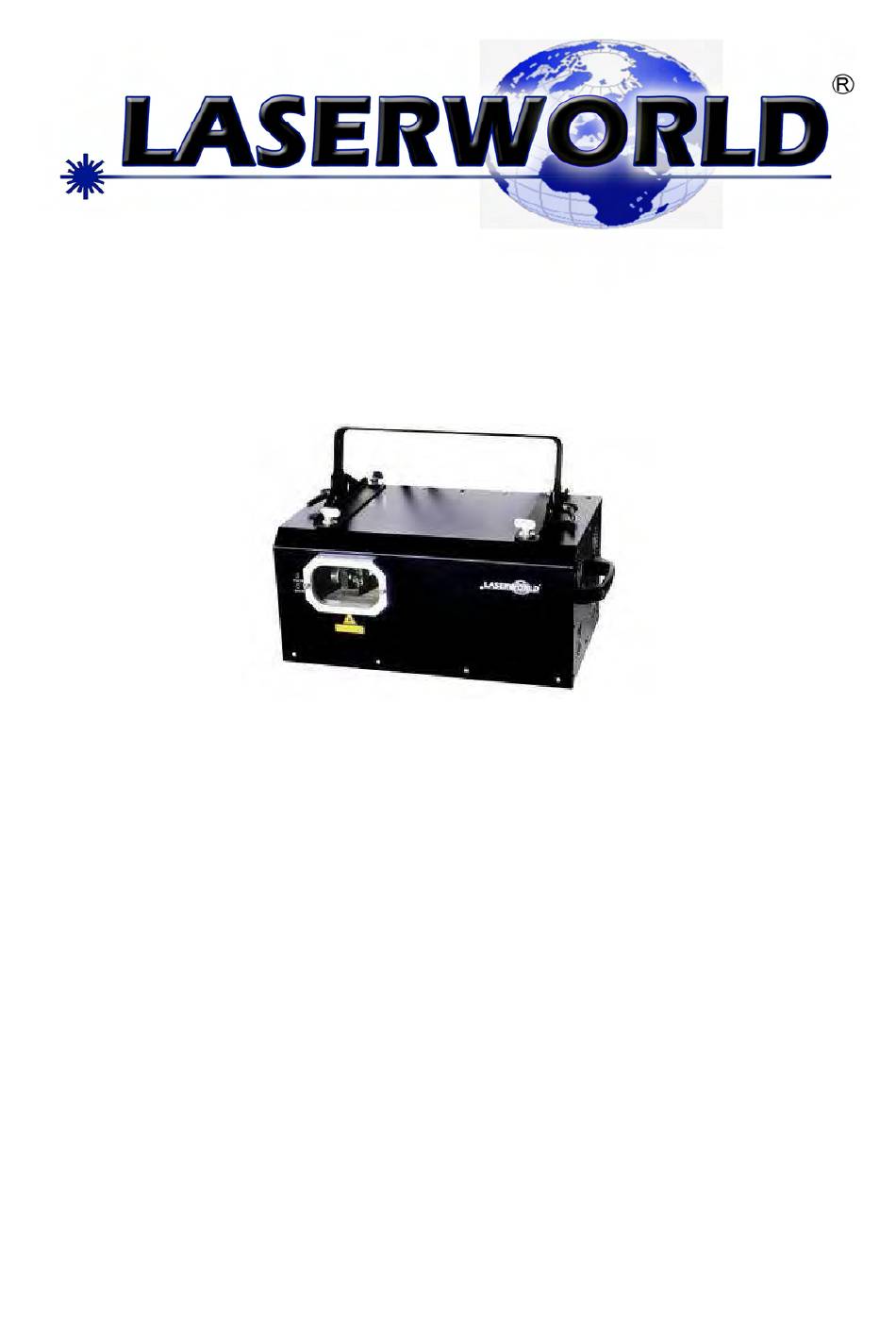

- Page 1 V PRO-OEM black User Manual OEM housing without laser sources Please read this manual carefully before use!
-
Page 2: Table Of Contents
Please note ..........................7 EU-declaration of conformity....................8 Checking parts Please check if all listed parts are included, and are not damaged. Included: 1 x V PRO-OEM housing black 1 x Power cable 1 x 9-pin plug 2 x key... -
Page 3: Operating The Laser
User Manual: V PRO-OEM Page 3 of 8 eye damage. So these laser series models supplied with a key switch to prevent unauthorized use, warning labels and aperture labels affixed to the laser. Installation safety Prior to installation and operation of the laser, the paths of the beams and effects should be considered, particularly with respect to how they will reach the audience. -
Page 4: Control Panel
User Manual: V PRO-OEM Page 4 of 8 emergency switch is connected use the 9 pin plug supplied. Security switch: Laser on/off ILDA connector in/out Power switch: power on/off Power: connect to mains. Control panel • MODE: select mode, or go up in menu •... -
Page 5: Maintenance / Cleaning
User Manual: V PRO-OEM Page 5 of 8 Pattern 0~255 160/5=32pcs Horizontal rotation 0~255 slow to fast Vertical rotation 0~255 slow to fast Rotation about Z-axis 0~255 slow to fast Horizontal movement 0~255 slow to fast Vertical movement 0~255 slow to fast... -
Page 6: Troubleshooting
User Manual: V PRO-OEM Page 6 of 8 4. When combining beams (RGY/RGB laser), first make sure the beams are (roughly) on the same spot on the mirrors/dichros. Then use a test pattern (e.g. rectangle) to do fine adjustment. For adjustments, always turn output power down (if possible). -
Page 7: Technical Diagram
Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! -
Page 8: Eu-Declaration Of Conformity
After installing the device, an inspection and official approval is indispensable for the overall setup. The inspection must follow the european guidelines EN 60825-1 and corresponding regulations for the prevention of accidents BGV-B2. This declaration is executed on behalf of the Laserworld V PRO-OEM manufacturer Laserworld (Switzerland) AG Kreuzlingerstrasse 5...
