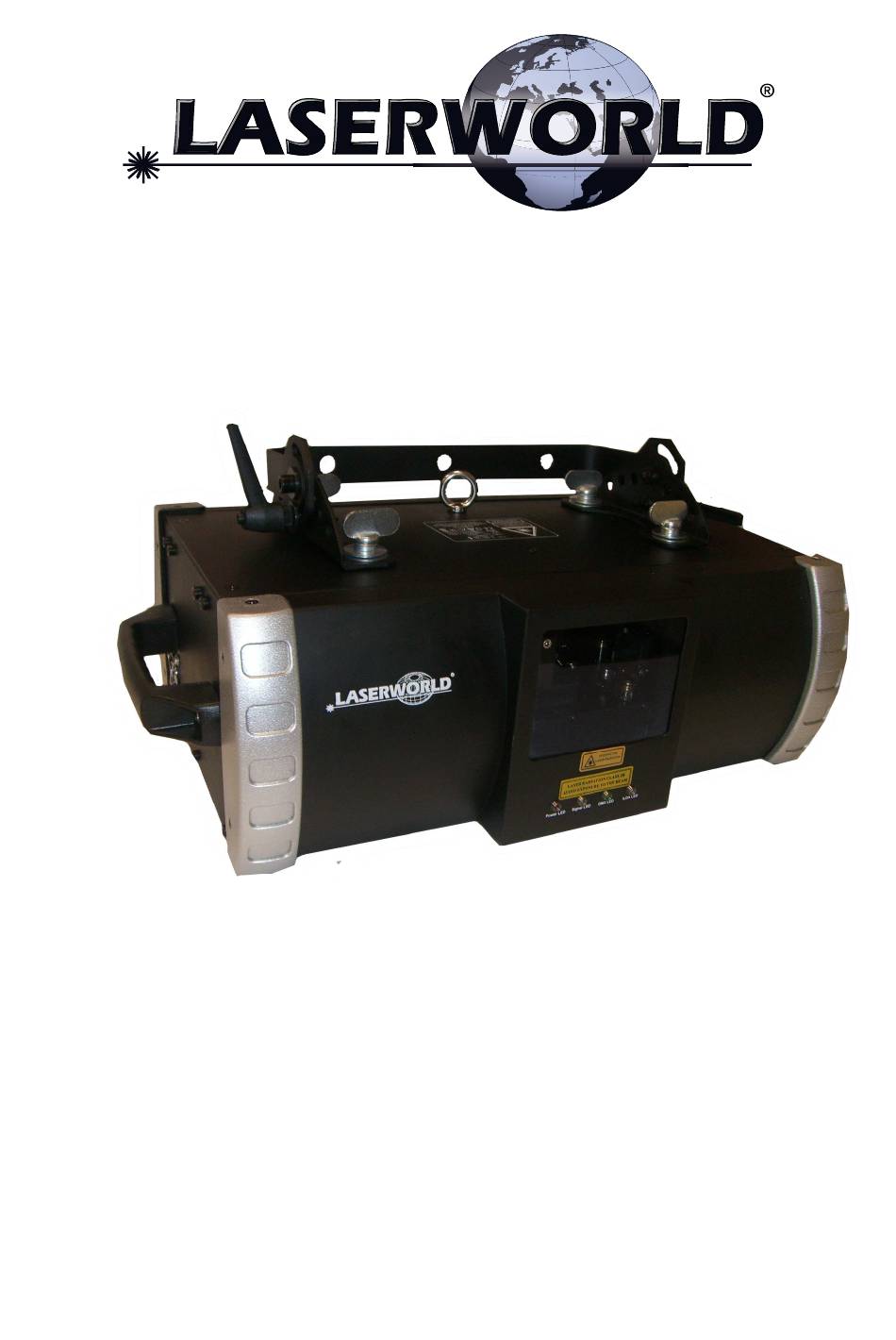

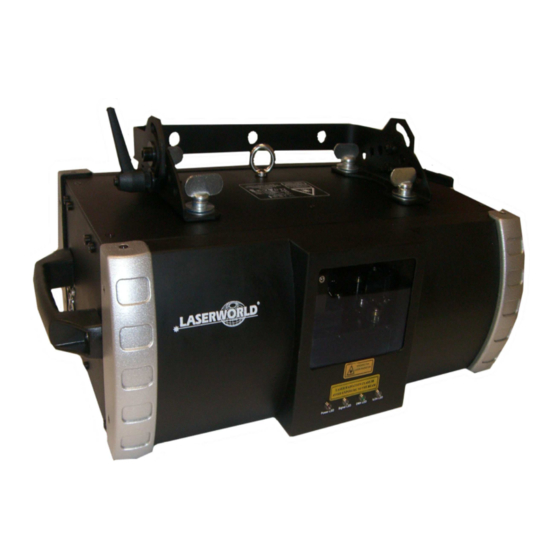

- Page 1 RS 400 G US Manual Read carefully before using this device!
-
Page 2: Safety Instructions
Manual: RS 400 G US 2 / 9 Checking parts Please check if all listed parts are included, and are not damaged. Included: 1 x Laser projector 1 x Power cable 1 x 9-pin plug 2 x key 1 x safety cord... -
Page 3: Using The Laser
Manual: RS 400 G US 3 / 9 In some countries, the operator must notify the accidence insurance and the authority for industrial safety, before operating a laser. For more information, contact the relevant authorities. Please consider that unauthorized modifications on the device are strictly forbidden due to safety... -
Page 4: Control Panel
Manual: RS 400 G US 4 / 9 Control panel • MODE: select mode, or go up in menu • ENTER: confirm changes, or go down in menu • UP/ DOWN: change DMX address Operating modes: Automatic mode: built-in patterns are displayed... - Page 5 Manual: RS 400 G US 5 / 9 Rotation 192~255 Rotate h. & v. Dot rotation 0~63 No function 64~127 Rotating 192~255 Rotating & Dotting Move 0~63 No function 64~127 Move horizontally 128~191 Move vertically 192~255 Move h. & v.
-
Page 6: Adjustable Mirror Mounts
Manual: RS 400 G US 6 / 9 Adjustable mirror mounts RS-800RGY, RS 1000/2300 RGB: Loosen setscrews, then adjust with X/Y adjustable screws. Make sure beam is centered on scanner mirrors. Adjust Z-screw simultaneously Tighten setscrews. When combining beams (RGY/RGB laser), first make sure the beams are (roughly) on the same spot on the mirrors/dichros. -
Page 7: Technical Diagram
Manual: RS 400 G US 7 / 9 Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! For service contact your dealer, or Laserworld. Only use Laserworld spare parts. Data subject to change without notice. Errors and omissions expected. - Page 8 Manual: RS 400 G US 8 / 9 Position of warning labels The positions of the warning labels (EN 60825-1) are: Warning Logotype: Position 1 Noninterlocked Protective Housing Label: Position 1 Aperture Label: Position 2 Laser Radiation Emission Indicator: Position 3 and on remote control unit...
- Page 9 Manual: RS 400 G US 9 / 9 Laserworld (Switzerland) AG Kreuzlingerstrasse 5 8574 Lengwil-Oberhofen SWITZERLAND Authorized person: Supervisory board Mr Martin Werner place of business: 8574 Lengwil-Oberhofen / SWITZERLAND company number: CH-440.3.020.548-6 Commercial Registry Kanton Thurgau www.laserworld.com info@laserworld.com representative...
