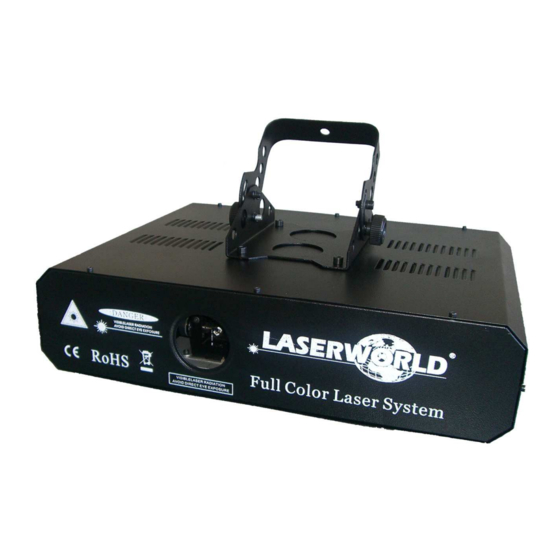

- Page 1 CS-400RGB USER MANUAL Please read this manual carefully before use!
-
Page 2: Table Of Contents
USER MANUAL: Laserworld Proline CS-400RGB Page 2 of 12 Table of contents Page 1. SAFETY INSTRUCTIONS 2. OPERATING DETERMINATIONS 3. PACKAGE LIST 4. PRODUCT INTRODUCTION 5. FUNCTION INTRODUCTION 6. INSTRUCTIONS 7. CHANNEL’S FUNCTION 8. SIGNAL CONNECTION AND ADRESS DIALING 7-10 9. -
Page 3: Safety Instructions
USER MANUAL: Laserworld Proline CS-400RGB Page 3 of 12 DANGER LASER RADIATION! Avoid direct eye exposure! Laser radiation can cause eye damage and/or skin damage All protective measures for a safe operation of this laser must be applied. 1. SAFETY INSTRUCTIONS If the device has been exposed to drastic temperature fluctuation, do not switch it on immediately. -
Page 4: Operating Determinations
USER MANUAL: Laserworld Proline CS-400RGB Page 4 of 12 2. OPERATING DETERMINATIONS 6. The operator has to make sure that laser radiation – also reflected laser radiation –higher than the highest allowed level is avoided by technical or organisational measures. -
Page 5: Product Introduction
USER MANUAL: Laserworld Proline CS-400RGB Page 5 of 12 4. PRODUCT INTRODUCTION Club Laser RGB laser performance System adopts the latest appearance design to make it compact and light. Club Laser RGB laser projector adopts the semiconductor laser source. Red laser wavelength is 650nm, and green laser wavelength is 532nm, and blue is 473nm.lt is'... -
Page 6: Channel's Function
USER MANUAL: Laserworld Proline CS-400RGB Page 6 of 12 being interfered by other Signals while controlled by Fire Phoenix Software or using the DMX-512 Signal Controller, such as wireless interphone & high radiated source. 7. CHANNEL’S FUNCTION ChanneJ DMX-512 numerical... -
Page 7: Signal Connection And Adress Dialing
USER MANUAL: Laserworld Proline CS-400RGB Page 7 of 12 8. SIGNAL CONNECTION AND ADRESS DIALING When the Controller transmits DMX512 Standard Signals, the connection of which is accomplished through the "inpuf and "outpuf 3-pin XLR socket. When a console Signal Outputs to the unit, it must correspond to the Pin 1 Ground, Pin 2 Positive and Pin 3 Negative of the XLR socket on the unit. - Page 8 USER MANUAL: Laserworld Proline CS-400RGB Page 8 of 12 The details of DMX-512 Signal control mode address switch as follow: Lamp Start Control switch (ON) address 1, 2, 3 1, 3, 4 1, 2, 5 1, 4, 5 1, 2, 3, 4, 5...
- Page 9 USER MANUAL: Laserworld Proline CS-400RGB Page 9 of 12 Scanning Operation of seven colors selection and color change (The address code is under DMX-512 control) Channel Value Function 42-83 Horizontal scanning adjustment Vertical scanning adjustment 0-247 Seven colors selection 248-255...
-
Page 10: Safety Marks
USER MANUAL: Laserworld Proline CS-400RGB Page 10 of 12 2.When operating the master and slave controlling, it must be only one master projector, otherwise it can not be operated synchronously. 9. SAFETY MARKS Before maintenances, please refer to eligible personnel. -
Page 11: Maintenance
Laserworld cannot be made liable for damages caused by incorrect installations and unskilled operation! - Page 12 USER MANUAL: Laserworld Proline CS-400RGB Page 12 of 12 EU- Declaration of Conformity We hereby confirm that the following device Laserworld Club CS-400RGB Laser Projector complies with the essential safety requirements, laid down in the regulations of the committee to assimilate the provisions of law of all participating EU states on the electromagnetic compatibility (89/446/EWG).
