How to: Motor Polarity Check/Change
Starbucks Barista (Baratza Version), Maestro, Maestro Plus, Virtuoso, Preciso, Encore, Virtuoso+
Time: 10 min
Difficulty: Easy
Tools/supplies: Flat head screwdriver. T10 Driver. Phillips Driver.
Parts: n/a
Additional Resources: Case Removal. Motor Replacement.
CORRECT
POLARITY
Cone Burr Spins
Clockwise
www.baratza.com
*** Unplug the grinder from power supply ***
Remove the case using our case removal guide.

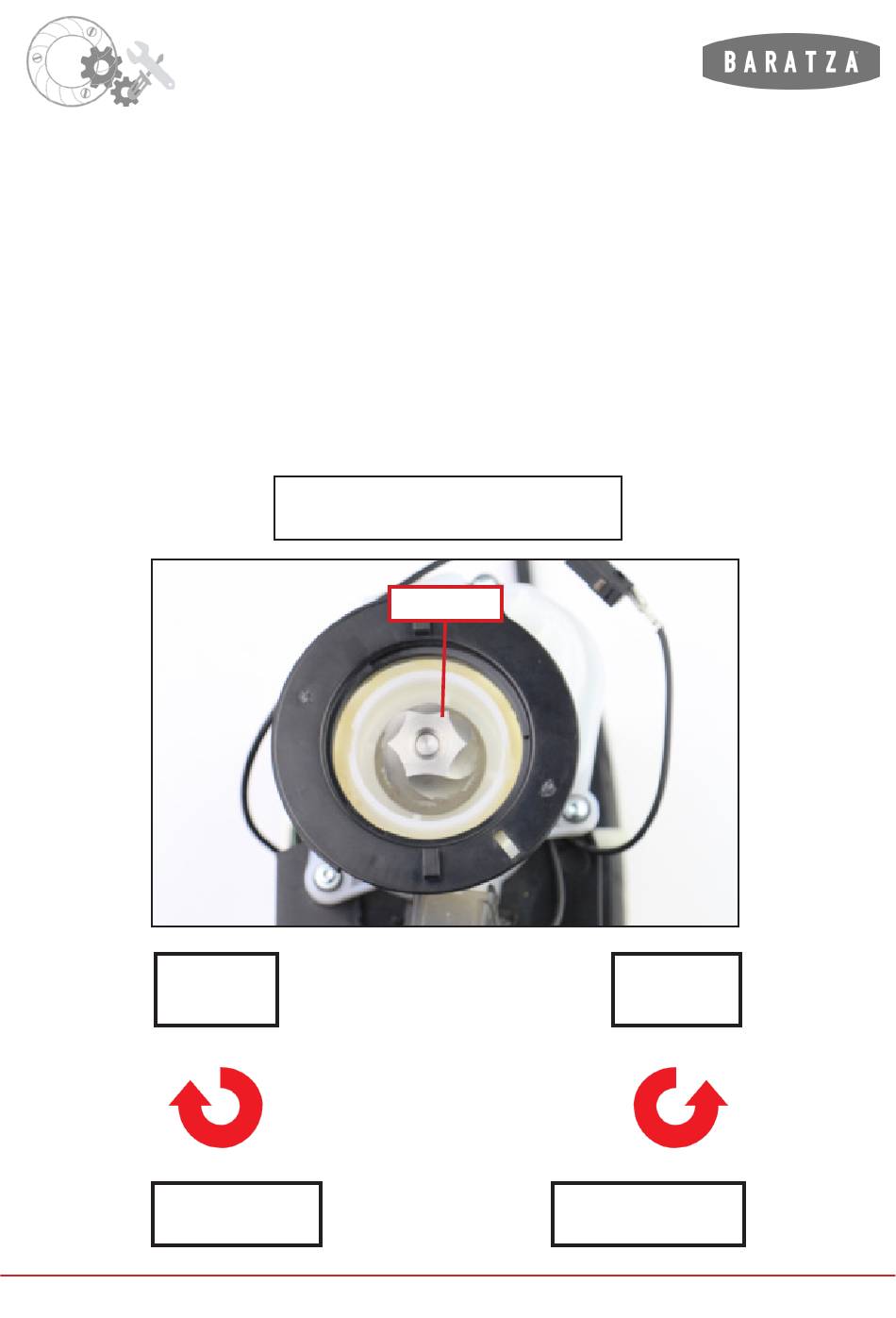

To check motor polarity, observe
the cone burr spinning under power.
support@baratza.com
Cone Burr
Cone Burr Spins
Counter-Clockwise
REVERSE
POLARITY
rev. 8/6/2019
ver. 1.0
